Description
VHF Mobile Roof Mount Antenna
High-performance 146–174 MHz 1/4 wave vehicle roof mount antenna for Motorola APX mobile radios.
The Motorola HAD4017A is a genuine OEM quarter-wave VHF roof mount antenna engineered for optimal signal propagation across 146–174 MHz frequency bands. The Motorola HAD4017A is the updated version of the Motorola HAD4017. Designed specifically for vehicle installations across public safety, emergency service, utility, and commercial transport fleets, this mobile antenna ensures reliable, low-loss transmission and reception when connected to Motorola APX series mobile transceivers.

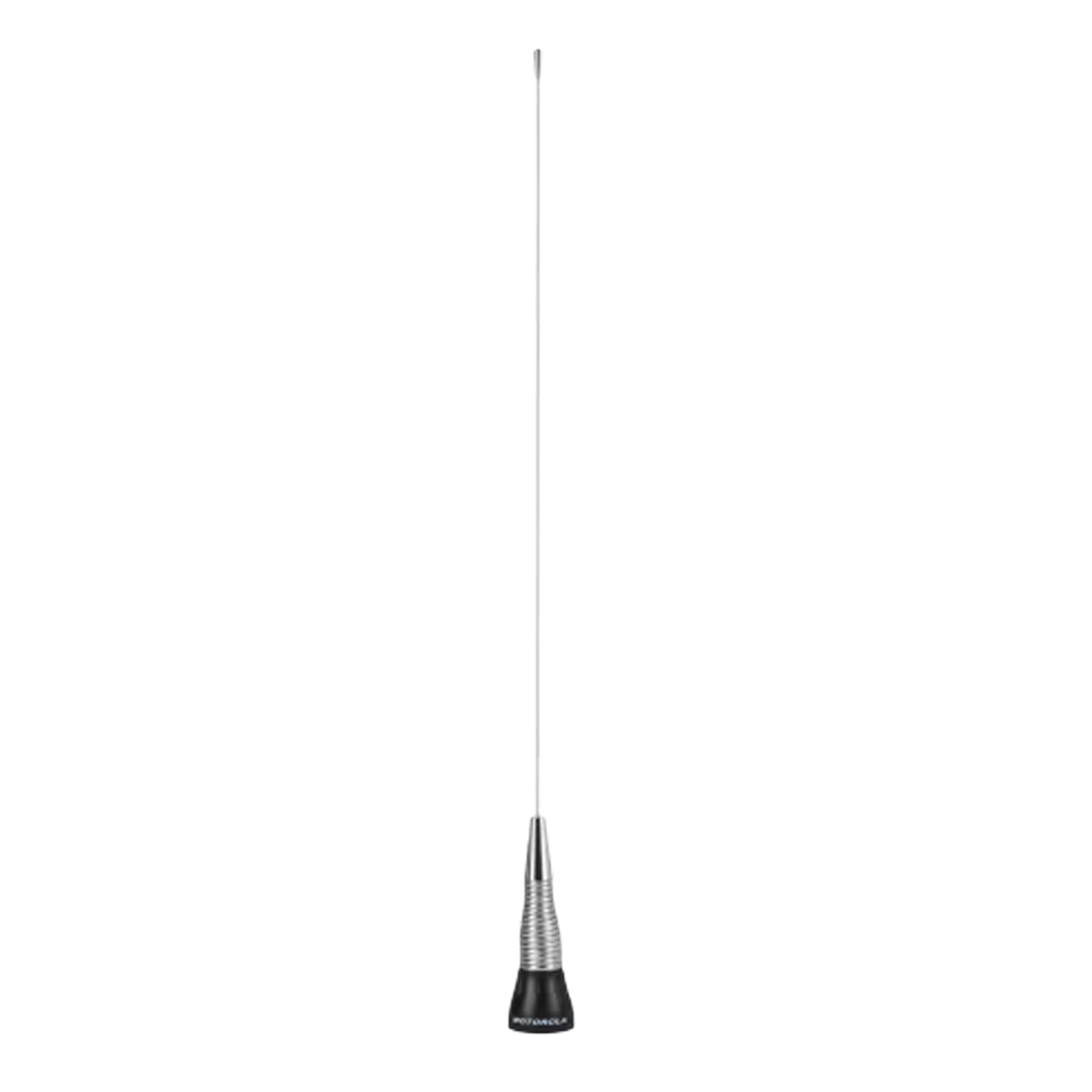

Constructed for demanding automotive environments, the Motorola HAD4017A features a durable 20.75-inch whip design engineered to withstand wind resistance, tree branch impacts, and daily highway vibration. Operating on a 1/4 wave design, the Motorola HAD4017A utilizes the vehicle's metal roof panel as a ground plane to maximize radiation efficiency and extend line-of-sight voice clarity.
Key Features & Benefits
-
146–174 MHz VHF Frequency Coverage: Optimized for full-spectrum VHF commercial and public safety Land Mobile Radio (LMR) frequencies.
-
1/4 Wave Radiation Efficiency: Utilizes vehicle roof metal as a ground plane for stable, long-range signal transmission.
-
Rugged Vehicular Build: Standing 20.75 inches tall with a heavy-duty base, built to endure harsh weather, car washes, and road vibrations.
-
Direct APX Compatibility: Engineered for seamless integration with Motorola APX mobile control heads and radio transceivers.
-
Motorola HAD4017A Revision Update: The Motorola HAD4017A is the updated version of the Motorola HAD4017.
Specifications
| Attribute |
Details |
| Brand |
Motorola Solutions |
| Model/SKU |
HAD4017A (Replaces HAD4017) |
| Product Type |
Vehicle Roof Mount Antenna |
| Frequency Band |
VHF |
| Frequency Range |
146–174 MHz |
| Antenna Wave Type |
1/4 Wave |
| Integrated GPS |
No |
| Height |
20.75 Inches (527 mm) |
| Weight |
0.97 lbs (440 g) |
| Installation Type |
Vehicular Roof Mount |
Compatibility
APX Mobile Radios
|
|
|
|
| APX1500 |
APX1500 Enhanced |
APX2500 |
APX2500 Enhanced |
| APX4500 |
APX4500 Enhanced |
APX5500 |
APX5500 Enhanced |
| APX6500 |
APX6500 Enhanced |
APX6500 Li |
APX7500 |
| APX8500 |
|
|
|
Recommended Accessories
Microphones & Speakers
More Resources
Frequently Asked Questions
What is the primary function of the Motorola HAD4017A antenna?
The Motorola HAD4017A is a 1/4 wave VHF roof mount antenna designed to transmit and receive signals in the 146–174 MHz frequency range for mobile two-way radios.
Is the Motorola HAD4017A the same as the Motorola HAD4017?
Yes, the Motorola HAD4017A is the updated version of the Motorola HAD4017. Both part numbers refer to the identical 146–174 MHz 1/4 wave VHF vehicle antenna.
Does the Motorola HAD4017A include integrated GPS functionality?
No, the Motorola HAD4017A is a dedicated VHF voice and data communications antenna and does not feature an integrated GPS element.
What is the physical height of the Motorola HAD4017A antenna?
The Motorola HAD4017A measures 20.75 inches in height.
Which radios are compatible with the Motorola HAD4017A?
The Motorola HAD4017A is compatible with Motorola APX 1500, APX 2500, APX 4500, APX 5500, APX 6500, APX 7500, APX 8500 mobile radios, and the APX 7500 Consolette system.
Is the Motorola HAD4017A a genuine Motorola product?
Yes, the Motorola HAD4017A is an original equipment manufacturer accessory produced directly by Motorola Solutions.
Warranty
1-year manufacturer's warranty.
