Wideband Flexible UHF Antenna for Professional Portable Radios
Maximize Signal Range
Achieve optimal line-of-sight communication efficiency across the entire upper UHF frequency band.

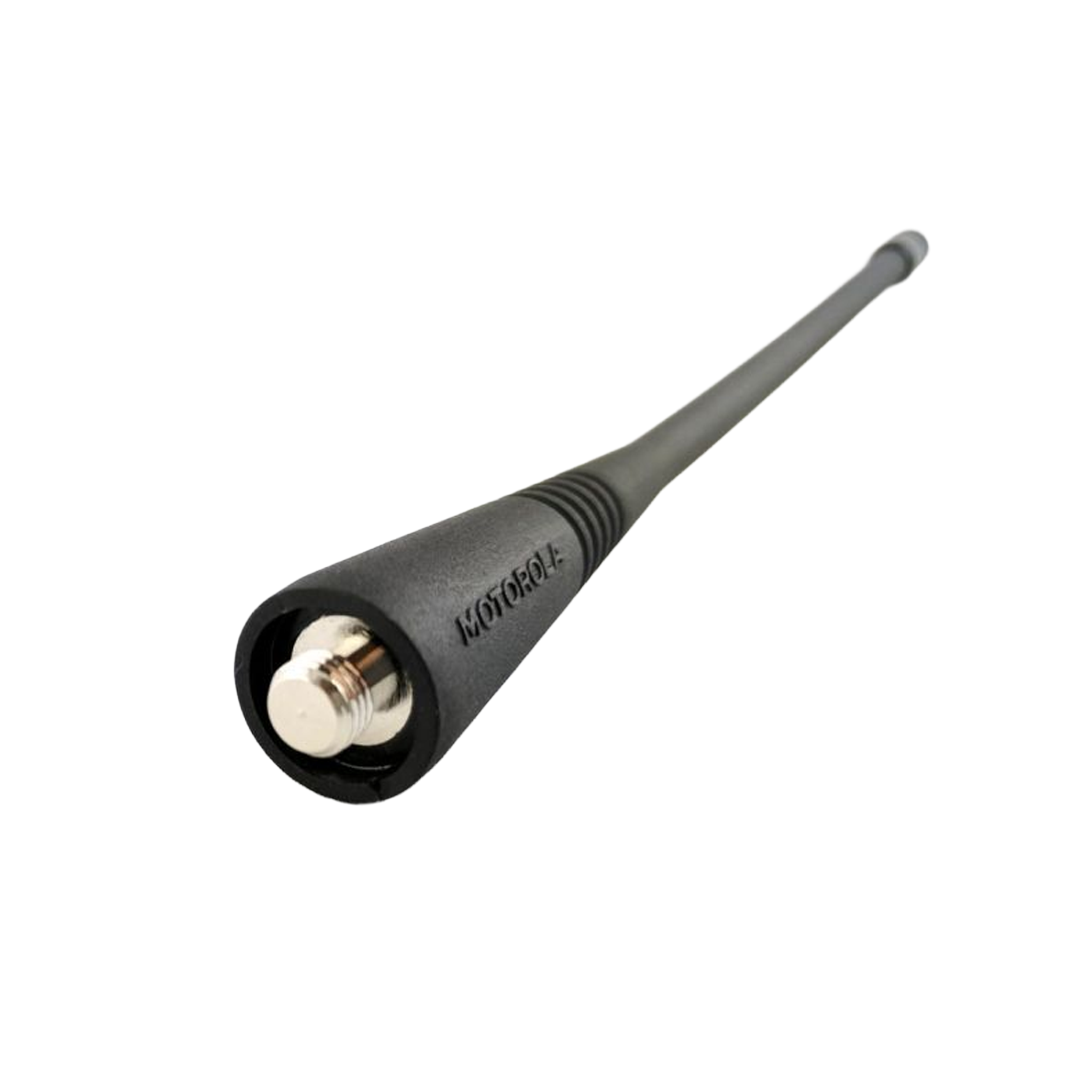

The Motorola PMAE4016A Whip Antenna is a genuine original equipment manufacturer (OEM) flexible communication antenna engineered for professional portable two-way radios. Operating within a wideband spectrum of 403–520 MHz, this high-performance whip assembly delivers excellent radiation efficiency and outstanding physical flexibility, making it an essential component for sustaining clear line-of-sight signal coverage in demanding structural or outdoor industrial environments. The Motorola PMAE4016A is the updated version of the Motorola PMAE4016.
Designed for emergency management fleets, construction supervisors, and heavy commercial logistics operators, this antenna resolves common signal drop issues caused by bent, worn, or sub-par aftermarket components. Its full-length 17-centimeter whip architecture provides significantly higher gain compared to stubby alternatives, ensuring robust voice transmission through concrete barriers and across sprawling job sites. Before deployment, fleet administrators must verify that transceivers are configured for UHF operations, as this component will not interface physically or electronically with VHF platforms.
Key Features & Benefits
-
Full UHF Wideband Tuning: Provides continuous coverage across the complete 403–520 MHz frequency band, eliminating the need to swap components when migrating frequencies.
-
Flexible Core Architecture: Fabricated with a high-durability flexible core that bends and recovers dynamically to resist snapping or fracturing during high-activity physical duties.
-
One-Piece Protective Molding: Features a seamlessly bonded outer polymer sheath that fully seals sensitive electrical components against heavy rain, industrial oil, and ambient dust.
-
Optimized Threaded Connector: Engineered with an industry-standard female thread assembly that guarantees a flush mechanical connection and continuous electrical grounding to the radio chassis.
-
Maximum Signal Range: The Motorola PMAE4016A Whip Antenna delivers superior signal gain to optimize receiver sensitivity and boost transmission distance in congested operating zones.
Specifications
| Attribute |
Details |
| Brand |
Motorola |
| Model/SKU |
PMAE4016A |
| Product Type |
Whip Antenna |
| Frequency Band |
UHF |
| Frequency Range |
403–520 MHz |
| Connector Type |
SMA Female Threaded |
| Color |
Black |
| Dimensions |
Approximately 6.75-Inches (17 cm) |
Compatibility
|
|
|
|
| CP200d |
CP200 |
CP150 |
PR400 |
| HT750 |
HT1250 |
HT1550 |
EX500 |
| EX600 |
DP1400 |
CP100d |
EX600XLS |
Recommended Accessories
- Motorola MOTOTRBO CP200d Portable Two-Way Radio (CP200d) — The primary digital hand-held transceiver engineered to natively host this OEM high-gain wideband UHF whip antenna.
More Resources
Frequently Asked Questions
What is the exact physical length of this UHF whip antenna?
The Motorola PMAE4016A measures approximately 6.75-Inches (17 cm) in length, optimizing physical radiation properties to provide the maximum coverage footprint possible across the standard UHF band.
Can this antenna be installed on a VHF portable radio?
No. This component is tuned exclusively to resonate within the 403–520 MHz UHF spectrum. Connecting it to a VHF radio will severely restrict range and risk permanent damage to the radio's internal power amplifier.
Does this whip antenna require special tools for field replacement?
No tools are necessary for installation. The assembly features a clean threaded base that screws directly into the transceiver's native top antenna port by hand until it achieves a secure, flush seal against the bezel.
Warranty
1-year manufacturer's warranty.
