Description

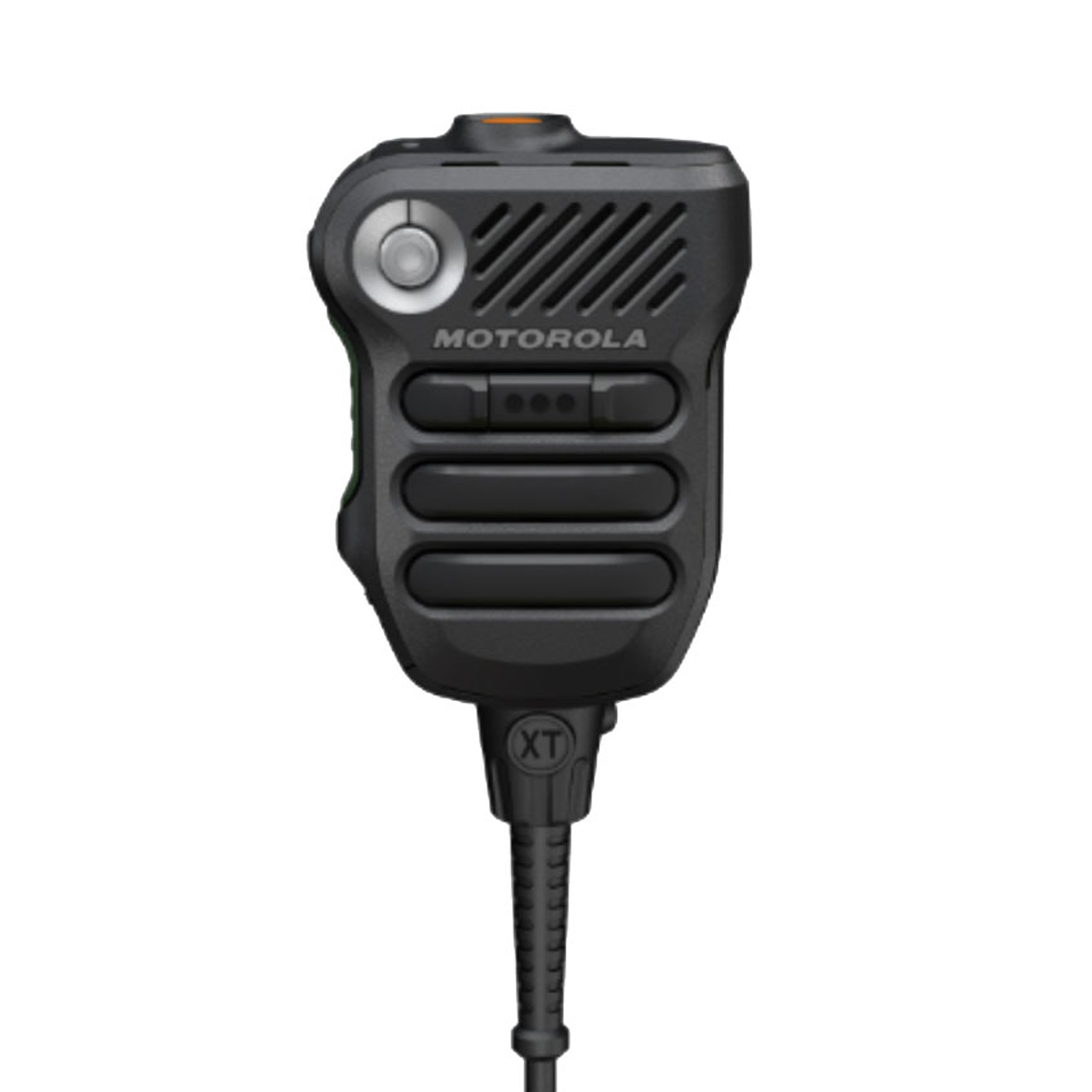

XVE500 IMPRES Division 1 Remote Speaker Microphone
Mission-critical audio clarity, 4-mic noise cancellation, and extreme UL Division 1 protection.
The Motorola PMMN4152B XVE500 IMPRES Remote Speaker Microphone is a next-generation, mission-critical audio accessory designed specifically for firefighters, emergency response personnel, and industrial teams working in extreme, hazardous environments. Certified to UL Division 1 (Div 1 / Div 2, TIA-4950) intrinsic safety standards, the XVE500 ensures completely safe operation in volatile atmospheres where ignitable gases, vapors, or combustible dust are present.
The PMMN4152B (along with variant SKUs PMMN4152BT, PMMN4152BBLK, and PMMN4152BTBLK) is the updated, revised version of legacy models like the PMMN4152A, PMMN4152, PMMN4137A, and PMMN4137. Motorola automatically fulfills orders with the latest factory revision, guaranteeing 100% backward physical compatibility while delivering updated manufacturing enhancements.
Built around Motorola's Adaptive Audio Engine, the XVE500 houses a multi-mic array of four High Dynamic Range (HDR) noise-suppressing microphones paired with the loudest speaker ever produced for a Motorola RSM. This intelligent system tracks your voice while actively filtering out extreme ambient background noise—such as raging fires, heavy machinery, diesel engine roar, and high winds. Designed to endure extreme fire ground conditions, the XVE500 withstands direct heat exposure up to 500°F (260°C) for five minutes and features an IP68 submersible rating. A dedicated ViQi voice assistant button gives first responders instant “eyes-up” access to database queries and critical field intelligence without removing their hands from task operations.
Model Variant Configurations
Choose from the following housing color and UL certification configurations (all models feature the no-knob design):
-
PMMN4152B: High-Impact Green housing, UL Division 1 certified, standard connector assembly.
-
PMMN4152BT: High-Impact Green housing, UL Division 1 TIA-4950 certified with threaded latch connection.
-
PMMN4152BBLK: Tactical Black housing, UL Division 1 certified, standard connector assembly.
-
PMMN4152BTBLK: Tactical Black housing, UL Division 1 TIA-4950 certified with threaded latch connection.
Key Features & Benefits
-
UL Division 1 Intrinsic Safety: Certified to TIA-4950 UL Div 1 / Div 2 standards for safe deployment in volatile, hazardous location environments.
-
Adaptive Audio Engine (4 HDR Mics): Utilizes a 4-microphone array to track voice origin and filter out ambient noise for superior transmission clarity.
-
Loudest IMPRES Speaker Core: Delivers maximum speaker volume output to overcome high-noise emergency and industrial environments.
-
Extreme Heat Resistance: Constructed with specialized heat-resistant housing and cabling to withstand temperatures of 500°F (260°C) for up to 5 minutes.
-
Dedicated ViQi Assistant Button: Offers single-touch access to operate ViQi voice commands directly from the user's shoulder.
-
IP68 Submersible Architecture: Dust-tight and fully waterproof, rated for submersion in up to 2 meters of water for 4 hours.
-
Illuminated Emergency Button: Oversized, shielded emergency button allows easy tactical activation while preventing accidental false alarms.
Package & Variant Comparison Matrix
| Option |
Housing Color |
Channel Knob |
UL Safety Rating |
Connector Type |
| PMMN4152B |
High-Impact Green |
No Knob |
UL Div 1 / TIA-4950 |
Standard Latch |
| PMMN4152BT |
High-Impact Green |
No Knob |
UL Div 1 / TIA-4950 |
Threaded Latch |
| PMMN4152BBLK |
Tactical Black |
No Knob |
UL Div 1 / TIA-4950 |
Standard Latch |
| PMMN4152BTBLK |
Tactical Black |
No Knob |
UL Div 1 / TIA-4950 |
Threaded Latch |
Specifications
| Attribute |
Details |
| Brand |
Motorola Solutions |
| Series |
XVE500 IMPRES Remote Speaker Microphone |
| Primary Base SKU |
PMMN4152B |
| Variant SKUs |
PMMN4152BT | PMMN4152BBLK | PMMN4152BTBLK |
| Intrinsic Safety Rating |
UL Division 1 / Division 2 (TIA-4950) |
| Ingress Protection Rating |
IP68 Submersible (2 Meters for 4 Hours) |
| Heat Resistance |
500°F (260°C) for 5 Minutes |
| Microphones |
4 High Dynamic Range (HDR) Microphones |
| Special Controls |
Dedicated ViQi Button, Illuminated Emergency Button, Volume Controls |
| Attachment Style |

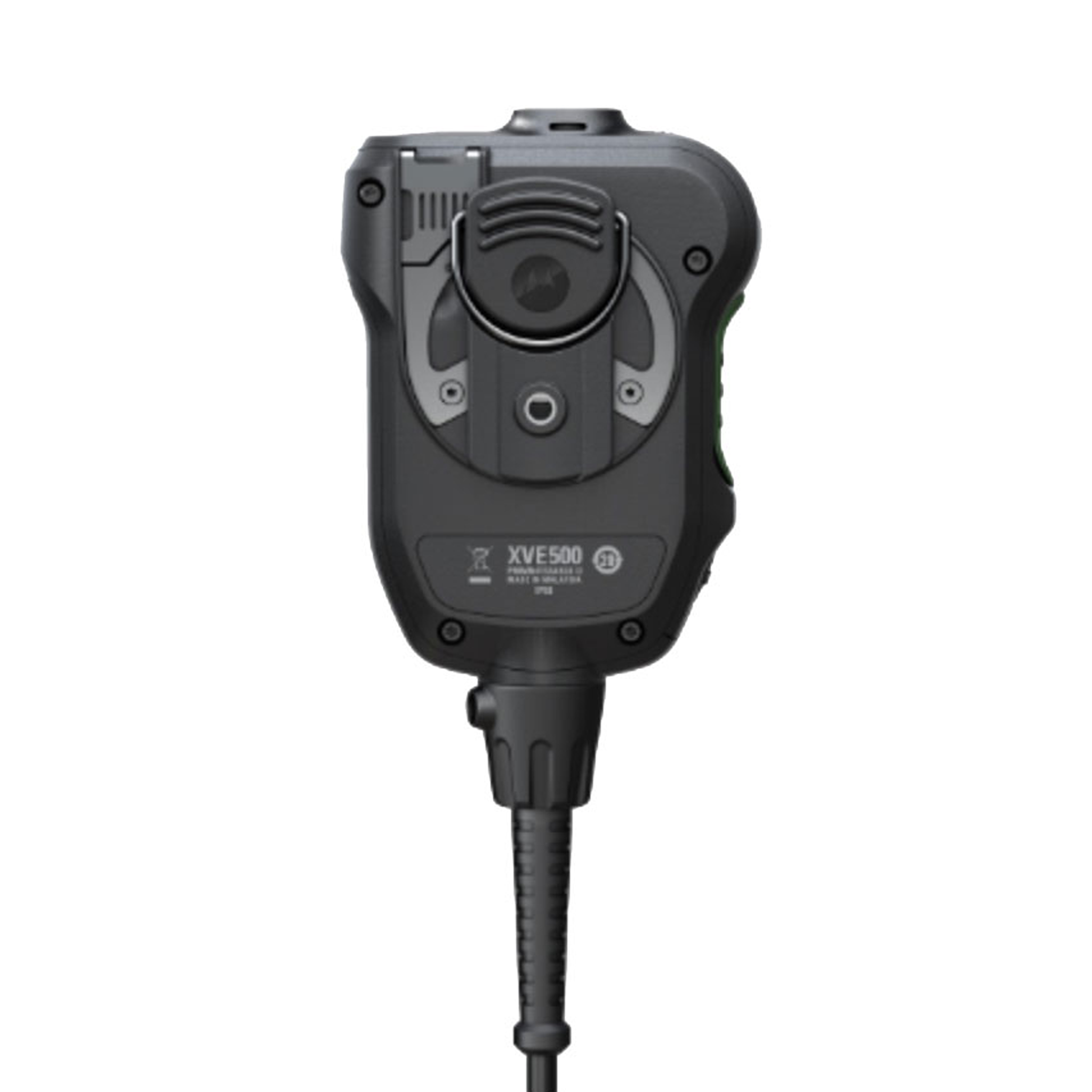

360-Degree Clamping Clip with Integrated D-Ring |
Compatibility
|
|
|
|
| APXNEXT |
APXNEXTXE |
APXN70 |
APXN70XE |
| APX8000 |
APX8000XE |
APX6000 |
APX6000XE |
What's Included
| Component Description |
Model / Part Number |
Status |
| Motorola XVE500 IMPRES Div 1 Remote Speaker Microphone |
Selected Variant |
Included |
| Integrated Extreme-Temperature Coiled Cable |
Integrated Assembly |
Included |
| 360-Degree Rotating Clamping Clip with D-Ring |
Integrated Assembly |
Included |
Recommended Accessories
Power & Charging
More Resources
Frequently Asked Questions
What is the difference between PMMN4152B and PMMN4152BBLK?
Both models feature identical internal hardware, 4 HDR microphones, and UL Div 1 safety ratings. PMMN4152B features a High-Impact Green housing for high visibility, while PMMN4152BBLK features a Tactical Black casing.
What does the "T" suffix indicate in PMMN4152BT and PMMN4152BTBLK?
The "T" designation indicates the inclusion of a threaded radio connector latch assembly, providing an ultra-secure mechanical attachment to the host radio accessory port.
Does this microphone feature a channel selector knob?
No, the PMMN4152 series is engineered without a top channel knob to streamline the profile and prevent accidental channel changes during emergency operations.
Can the XVE500 speaker microphone withstand extreme fire ground temperatures?
Yes, the XVE500 is built with specialized heat-resistant casing and cabling tested to withstand thermal exposure up to 500°F (260°C) for up to 5 minutes.
Warranty
1-year manufacturer's warranty.
