Description
High-Performance MOTOTRBO Mobile Two-Way Radios
Advanced digital mobile transceivers featuring 32-channel capacity, integrated Wi-Fi, Bluetooth 4.0, and IP54 vehicle mounting deployment.

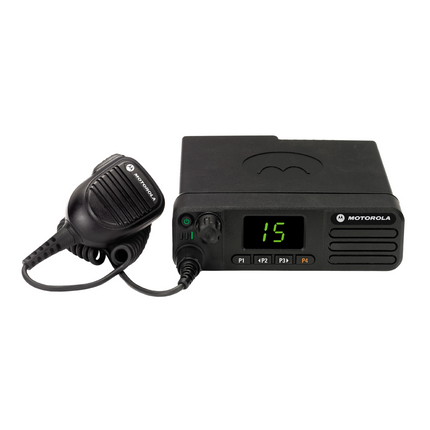

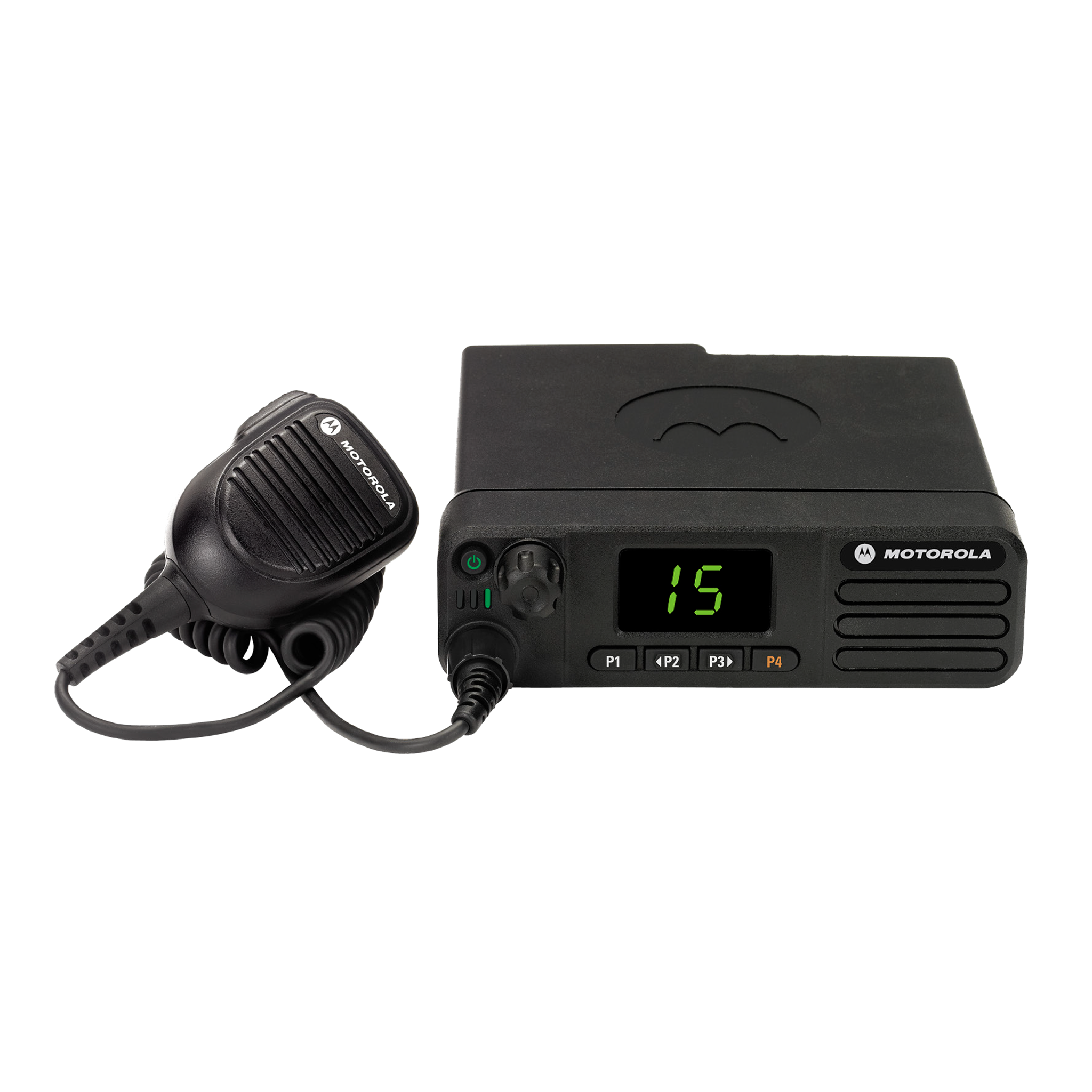

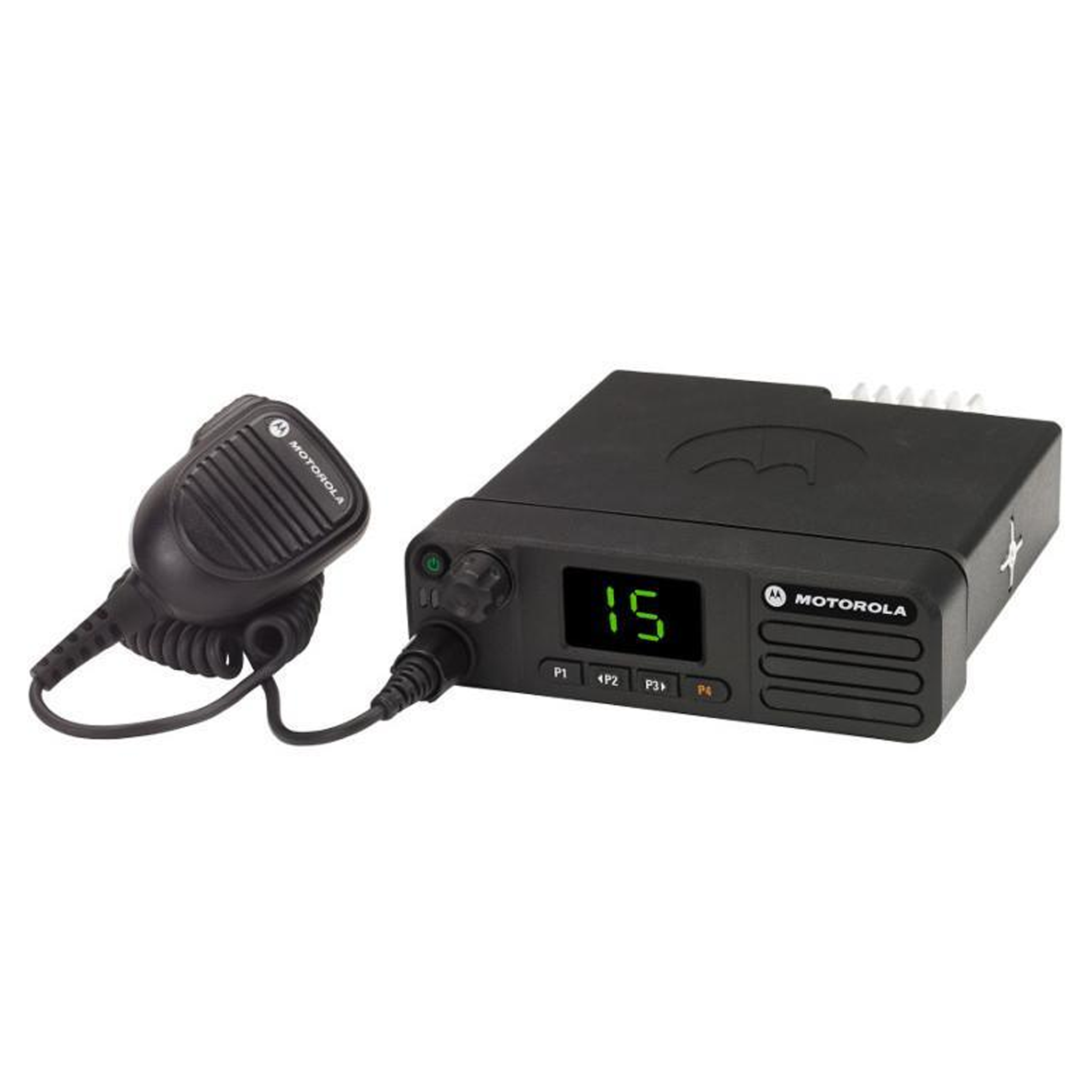

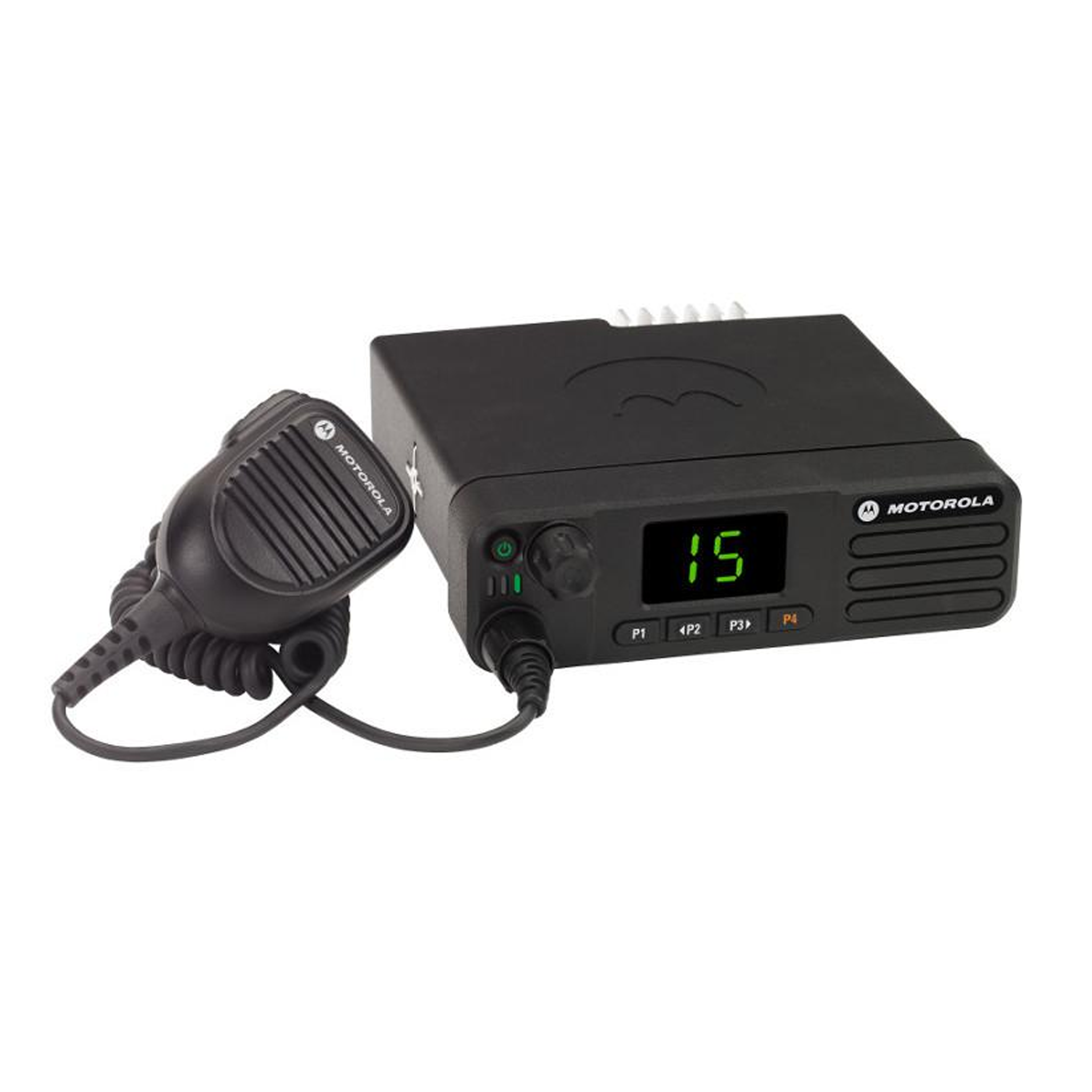

The Motorola XPR5350e and Motorola XPR5380e are high-performance MOTOTRBO digital mobile two-way radios built to deliver complete organization-wide connectivity for commercial vehicle fleets, school buses, field service technicians, and municipal utility crews. Operating on DMR Association digital standards while maintaining full backward compatibility with legacy analog systems, these mobile transceivers feature a clear 2-digit numeric LED channel display, integrated Bluetooth 4.0, over-the-air Wi-Fi software updates, and IMPRES smart audio processing.
Engineered for demanding vehicle environments, the Motorola XPR5350e covers standard commercial VHF and UHF frequency bands, while the Motorola XPR5380e is specialized for 800/900 MHz trunked and conventional radio networks. Both models provide 32 channels, 4 programmable front-panel buttons, integrated GPS/GLONASS location tracking, and an IP54 weather-sealed chassis built to withstand vehicle vibration, temperature shock, and road dust. To ensure legal vehicle operation on licensed commercial frequencies, fleet operators must maintain valid FCC Licensing credentials for all installed mobile transmitters.
Key Features & Benefits
-
Integrated Wi-Fi & Bluetooth 4.0: Enables over-the-air firmware updates and wireless audio accessory connections directly inside the vehicle cab.
-
32-Channel Capacity & Numeric Display: Intuitive 2-digit numeric LED display allows fast channel identification and quick switching across work groups.
-
IMPRES Smart Audio & Noise Suppression: Automatically adjusts speaker output and filters background engine, road, and wind noise for clear voice clarity.
-
High-Power RF Transmitter: Delivers up to 45 Watts output on VHF/UHF (Motorola XPR5350e) and up to 35 Watts on 800/900 MHz (Motorola XPR5380e) for extended range.
-
Multi-Constellation GNSS Location: Integrated GPS and GLONASS positioning support location-based fleet tracking and dispatch management.
-
IP54 Weather-Sealed Chassis: Dust-protected and splash-resistant housing satisfies MIL-STD-810 C, D, E, F, and G military specifications for rugged vehicle installations.
-
DMR Digital Interoperability: Supports TDMA digital voice, text messaging capability, basic/enhanced privacy encryption, and legacy analog operating modes.
Specifications
| Attribute |
Details |
| Brand |
Motorola Solutions |
| Model/SKU |
XPR5350e / XPR5380e |
| Product Line |
MOTOTRBO XPR5000e Series |
| Channel Capacity |
32 Channels |
| Display |
2-Digit Numeric LED Display |
| Digital Technology |
DMR Tier II / Analog |
| Wireless Connectivity |
Bluetooth 4.0, Wi-Fi 802.11b/g/n |
| Location Tracking |
Integrated GPS and GLONASS |
| Environmental Rating |
IP54 Rated / MIL-STD-810 C, D, E, F, G |
| Front Panel Controls |
4 Programmable Buttons, Channel Up/Down, Power Knob |
| Audio Output |
4 Watts Internal / 7.5 Watts or 13 Watts External Speaker |
| Operating Voltage |
13.8 V DC ± 15% (Negative Ground) |
| Current Drain |
Standby: 0.8 A / Receive: 2.0 A / Transmit: 11.0 A (Max) |
| Operating Temperature |
-22°F to +140°F (-30°C to +60°C) |
| Dimensions |
2.1 Inches H x 6.9 Inches W x 8.1 Inches L (53 mm x 175 mm x 206 mm) |
| Weight |
3.9 lb (1.8 kg) |
Model Variations
| Model Variant |
Base Model SKU |
Frequency Band |
Operating Frequency Range |
RF Power Output |
Channel Capacity |
Primary Application |
| XPR5350e VHF Low Power |
AAM28JNC9RA1AN |
VHF |
136 – 174 MHz |
1 – 25 Watts |
32 Channels |
Rural coverage, long-range open terrain |
| XPR5350e VHF High Power |
AAM28JQNC9RA1AN |
VHF |
136 – 174 MHz |
25 – 45 Watts |
32 Channels |
Extended long-range rural & highway fleets |
| XPR5350e UHF Range 1 Low Power |
AAM28QNC9RA1AN |
UHF Range 1 |
403 – 470 MHz |
1 – 25 Watts |
32 Channels |
Urban environments, indoor/outdoor building penetration |
| XPR5350e UHF Range 1 High Power |
AAM28QPC9RA1AN |
UHF Range 1 |
403 – 470 MHz |
25 – 40 Watts |
32 Channels |
High-power urban & suburban commercial fleets |
| XPR5350e UHF Range 2 High Power |
AAM28TRC9RA1AN |
UHF Range 2 |
450 – 512 MHz |
1 – 45 Watts |
32 Channels |
Specialized commercial & public safety UHF systems |
| XPR5380e 800 MHz (TX) |
AAM28UCC9RA1AN-1 |
800 MHz |
806 – 825 MHz |
10 – 35 Watts |
32 Channels |
Specialized 800 MHz transmit trunked systems |
| XPR5380e 800 MHz (RX) |
AAM28UCC9RA1AN-2 |
800 MHz |
851 – 870 MHz |
10 – 35 Watts |
32 Channels |
Specialized 800 MHz receive trunked systems |
| XPR5380e 900 MHz (TX) |
AAM28UCC9RA1AN-3 |
900 MHz |
896 – 902 MHz |
8 – 30 Watts |
32 Channels |
Specialized 900 MHz transmit commercial networks |
| XPR5380e 900 MHz (RX) |
AAM28UCC9RA1AN-4 |
900 MHz |
935 – 941 MHz |
8 – 30 Watts |
32 Channels |
Specialized 900 MHz receive commercial networks |
Compatibility
Matching Microphones & Accessories
What's Included
| Description |
SKU/Model |
Status |
| Motorola MOTOTRBO Mobile Radio Main Transceiver |
XPR5350e or XPR5380e |
Included |
| Compact Palm Hand Microphone |
PMMN4090A |
Included |
| Low-Profile Mounting Trunnion Bracket |
RLN6469A |
Included |
| 10-Foot 14 AWG Mobile Power Cable with Fuse Kit |
HKN4137A |
Included |
| Microphone Hang-Up Clip & Mounting Hardware |
Standard Hardware Kit |
Included |
| User Manual & Safety Documentation |
Standard Publication |
Included |
Recommended Accessories
Microphones & Audio Accessories
Power Cables & Mounting Hardware
Antennas & RF Components
Programming Tools & Software
Related Models
More Resources
Frequently Asked Questions
What is the key operational difference between the Motorola XPR5350e and XPR5380e?
The Motorola XPR5350e operates on standard commercial VHF (136–174 MHz) and UHF (403–512 MHz) frequency bands, whereas the Motorola XPR5380e is specifically configured for 800/900 MHz trunked and conventional radio systems.
Does the Motorola XPR5350e / XPR5380e need to be programmed before use?
Yes. The Motorola XPR5350e and Motorola XPR5380e must be programmed with your licensed frequencies before they can be used on any radio system. Programming requires Motorola Customer Programming Software (CPS) or Radio Management, available separately. If you’d prefer to have the radio programmed before it ships, visit our Two-Way Radio Programming Services page or contact our team before placing your order. You will also need a compatible programming cable — the Motorola PMKN4010 (sold separately) — to connect the radio to your PC.
Can the Motorola XPR5350e and XPR5380e communicate with analog mobile radios?
Yes, both the Motorola XPR5350e and Motorola XPR5380e support dual digital (DMR) and analog modes, allowing seamless communication with legacy analog radio fleets.
Do these mobile radios include built-in Wi-Fi and Bluetooth?
Yes, both the Motorola XPR5350e and Motorola XPR5380e come standard with integrated Wi-Fi for over-the-air software updates and Bluetooth 4.0 for wireless earpiece and data connections.
What is the water and dust rating of the Motorola XPR5350e chassis?
The Motorola XPR5350e and Motorola XPR5380e feature an IP54 environmental ingress rating, protecting the internal electronics against dust accumulation and water splashing from any direction.
What operating voltage is required to power these mobile radios?
Both the Motorola XPR5350e and Motorola XPR5380e require a standard 13.8 Volt DC negative ground vehicle electrical power connection.
Warranty
2-year manufacturer's warranty.
