Description
High-Performance Color Display MOTOTRBO Mobile Radios
Advanced digital mobile transceivers featuring 1000-channel capacity, 4-line color display, integrated Wi-Fi, and Bluetooth 4.0.

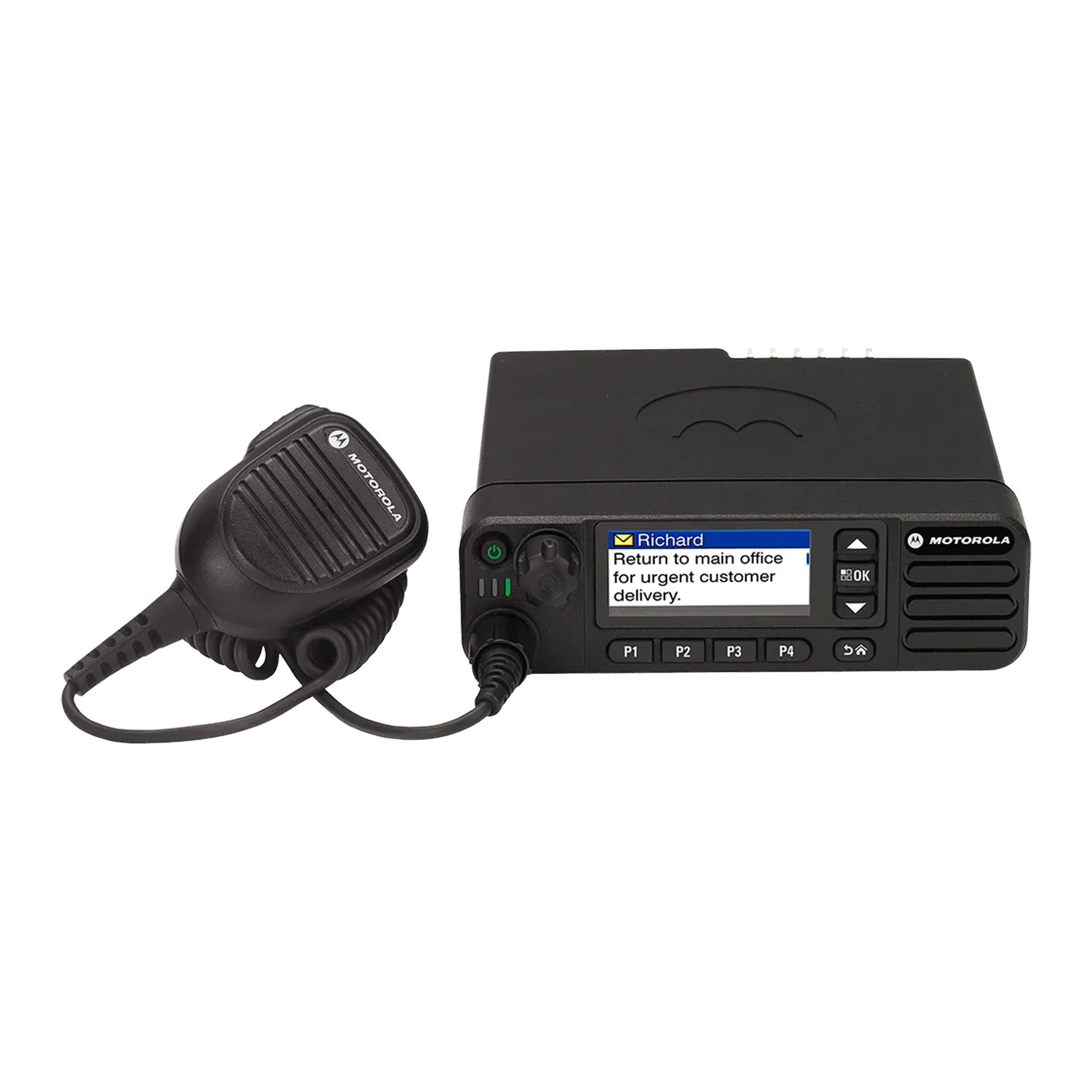

The Motorola XPR5550e and Motorola XPR5580e are high-performance MOTOTRBO digital mobile two-way radios built to deliver complete organization-wide connectivity for commercial vehicle fleets, school buses, field service technicians, and municipal utility crews. Operating on DMR Association digital standards while maintaining full backward compatibility with legacy analog systems, these mobile transceivers feature a vibrant 4-line full-color display with day/night mode, integrated Bluetooth 4.0, over-the-air Wi-Fi software updates, and IMPRES smart audio processing.
Engineered for demanding vehicle environments, the Motorola XPR5550e covers standard commercial VHF and UHF frequency bands, while the Motorola XPR5580e is specialized for 800/900 MHz trunked and conventional radio networks. Both models provide 1000 channels, 4 programmable front-panel buttons with a 4-way navigation disk, integrated GPS/GLONASS location tracking, and an IP54 weather-sealed chassis built to withstand vehicle vibration, temperature shock, and road dust. To ensure legal vehicle operation on licensed commercial frequencies, fleet operators must maintain valid FCC Licensing credentials for all installed mobile transmitters.
Key Features & Benefits
-
4-Line Full-Color Display: High-resolution color screen with automatic day/night viewing modes simplifies menu navigation, text messaging, and contact list browsing.
-
1000-Channel Capacity: Massive channel memory accommodates complex multi-site commercial fleet configurations and large talkgroup structures.
-
Integrated Wi-Fi & Bluetooth 4.0: Enables over-the-air firmware updates and wireless audio accessory connections directly inside the vehicle cab.
-
IMPRES Smart Audio & Noise Suppression: Automatically adjusts speaker output and filters background engine, road, and wind noise for clear voice clarity.
-
Multi-Constellation GNSS Location: Integrated GPS and GLONASS positioning support location-based fleet tracking and dispatch management.
-
IP54 Weather-Sealed Chassis: Dust-protected and splash-resistant housing satisfies MIL-STD-810 C, D, E, F, and G military specifications for rugged vehicle installations.
-
DMR Digital Interoperability: Supports TDMA digital voice, text messaging capability, basic/enhanced privacy encryption, and legacy analog operating modes.
Specifications
| Attribute |
XPR5550e |
XPR5580e |
| Frequency Bands |
VHF (136–174 MHz), UHF (403–512 MHz) |
800 MHz (806–870 MHz) / 900 MHz (896–941 MHz) |
| Power Output |
45W (VHF), 40W (UHF) |
30W (800/900 MHz) |
| Channel Capacity |
1,000 Channels (Color Display) |
1,000 Channels (Color Display) |
| Display |
Full-Color Alphanumeric |
Full-Color Alphanumeric |
| Ingress Protection |
IP54 |
IP54 |
| Connectivity |
Bluetooth 4.0, Wi-Fi, GNSS/GPS |
Bluetooth 4.0, Wi-Fi, GNSS/GPS |
| Protocol |
MOTOTRBO DMR & Analog |
MOTOTRBO DMR & Analog |
| Trunking Support |
Capacity Plus, Linked Capacity Plus, Capacity Max |
Capacity Plus, Linked Capacity Plus, Capacity Max |
| Warranty |
5-Year on radio, 1-Year on accessories |
2-Year on radio, 1-Year on accessories |
Transmitter
| Attribute |
Details |
| Channel Spacing |
12.5, 25 kHz |
| 4FSK Digital Modulation |
12.5 kHz Data: 7K60F1D / 7K60FXD | 12.5 kHz Voice: 7K60F1E / 7K60FXE | Combined: 7K60F1W |
| Digital Protocol |
ETSI TS 102 361 |
| Conducted/Radiated Emissions |
-36 dBm <1 GHz | -30 dBm >1 GHz |
| Adjacent Channel Power |
60 dB (12.5 kHz) | 70 dB (25 kHz) |
| Frequency Stability |
±0.5 ppm |
Receiver
| Attribute |
Details |
| Analog Sensitivity (12 dB SINAD) |
0.22 μV |
| Digital Sensitivity (5% BER) |
0.19 μV |
| Intermodulation |
70 dB |
| Adjacent Channel Selectivity (TIA603A) 1T |
60 dB (12.5 kHz) | 70 dB (25 kHz) |
| Adjacent Channel Selectivity (TIA603D) 2T |
45 dB (12.5 kHz) | 70 dB (25 kHz) |
| Spurious Rejection |
70 dB |
Audio
| Attribute |
Details |
| Digital Vocoder |
AMBE+2™ |
| Audio Response |
TIA603D |
| Rated Audio Output |
3W (internal speaker) | 7.5W (external 8Ω) | 13W (external 4Ω) |
| Audio Distortion at Rated Audio |
3% |
| Hum and Noise |
-40 dB (12.5 kHz) | -45 dB (25 kHz) |
| Conducted Spurious Emissions |
-57 dBm |
Bluetooth
| Attribute |
Details |
| Version |
4.0 |
| Range |
Class 2, 33 ft (10 m) |
| Supported Profiles |
Headset Profile (HSP), Serial Port Profile (SPP), Motorola Fast PTT |
| Simultaneous Connections |
1 audio accessory + 1 data device |
| Permanent Discoverable Mode |
Optional |
GNSS
| Attribute |
Details |
| Constellation Support |
GPS |
| Time to First Fix (Cold Start) |
<60 s |
| Time to First Fix (Hot Start) |
<10 s |
| Horizontal Accuracy |
<16.5 ft (<5 m) |
Wi-Fi
| Attribute |
Details |
| Standards |
IEEE 802.11b, 802.11g, 802.11n |
| Security Protocols |
WPA, WPA-2, WEP |
| Maximum SSIDs |
128 (64 for Numeric Models) |
Environmental
| Attribute |
Details |
| Operating Temperature |
-22°F to +140°F (-30°C to +60°C) |
| Storage Temperature |
-40°F to +185°F (-40°C to +85°C) |
| Electrostatic Discharge |
IEC 61000-4-2 Level 4 |
| Dust & Water Intrusion |
IEC 60529 IP54 |
| Packaging Test |
MIL-STD 810C, D, E, F, and G |
MIL-STD 810 Compliance
| Test |
810C |
810D |
810E |
810F |
810G |
| Low Pressure |
500.1 / I |
500.2 / II |
500.3 / II |
500.4 / II |
500.5 / II |
| High Temp |
501.1 / I, II |
501.2 / I-A1, II-A1 |
501.3 / I-A1, II-A1 |
501.4 / I-Hot, II-Hot |
501.5 / I-A1, II-A1 |
| Low Temp |
502.1 / I |
502.2 / I-C3, II-C1 |
502.3 / I-C3, II-C1 |
502.4 / I-C3, II-C1 |
502.5 / I-C3, II-C1 |
| Temp Shock |
503.1 / I |
503.2 / A1-C3 |
503.3 / A1-C3 |
503.4 / I |
503.5 / I-C |
| Solar Radiation |
505.1 / II |
505.2 / I-Hot-Dry |
505.3 / I-Hot-Dry |
505.4 / I-Hot-Dry |
505.5 / I-A1 |
| Rain |
506.1 / I, II |
506.2 / I, II |
506.3 / I, II |
506.4 / I, III |
506.5 / I, III |
| Humidity |
507.1 / II |
507.2 / II-Hot-Humid |
507.3 / II-Hot-Humid |
507.4 / — |
507.5 / I-Hot-Humid |
| Salt Fog |
509.1 / I |
509.2 / I |
509.3 / I |
509.4 / — |
509.5 / — |
| Dust |
510.1 / I, II |
510.2 / I, II |
510.3 / I, II |
510.4 / I, II |
510.5 / I, II |
| Vibration |
514.2 / VIII-CatF-CurveW, XI |
514.3 / I-Cat10, II-Cat3 |
514.4 / I-Cat10, III-Cat3 |
514.5 / I-Cat24, II-Cat5 |
514.6 / I-Cat24, II-Cat5 |
| Shock |
516.2 / I, II |
516.3 / I, IV |
516.4 / I, IV |
516.5 / I, IV |
516.6 / I, V, VI |
XPR5550e Model Variations
| Frequency Band |
Power |
SKU (Enabled) |
SKU (Capable) |
| VHF (136–174 MHz) |
25W |
AAM28JNN9RA1AN |
— |
| VHF (136–174 MHz) |
45W |
AAM28JQN9RA1AN |
AAM28JQN9WA1AN |
| UHF (403–470 MHz) |
25W |
AAM28QNN9RA1AN |
— |
| UHF (403–470 MHz) |
40W |
AAM28QPN9RA1AN |
AAM28QPN9WA1AN |
| UHF (450–512 MHz) |
40W |
AAM28TRN9RA1AN |
AAM28TRN9WA1AN |
XPR5580e Model Variations
| Frequency Band |
Power |
SKU (Enabled) |
SKU (Capable) |
| 800/900 MHz |
30/35W |
AAM28UMN9RA1AN |
AAM28UMN9WA1AN |
Compatibility
Matching Microphones & Accessories
What's Included
| Description |
SKU/Model |
Status |
| Motorola MOTOTRBO Mobile Radio Main Transceiver |
XPR5550e or XPR5580e |
Included |
| Compact Microphone |
RMN5052A |
Included |
| Low-Profile Trunnion Mounting Bracket |
RLN6466A |
Included |
| 10-Foot Power Cable |
HKN4191C |
Included |
| Microphone Hang-Up Clip & Mounting Hardware |
Standard Hardware Kit |
Included |
| User Manual & Safety Documentation |
Standard Publication |
Included |
Recommended Accessories
Microphones & Audio Accessories
Power Cables & Mounting Hardware
Antennas & RF Components
Programming Tools & Software
Related Models
More Resources
Frequently Asked Questions
Does the Motorola XPR5550e or XPR5580e need to be programmed?
Yes, both radios must be programmed with your licensed frequencies before use. You'll be asked at checkout whether you'd like programming, or you can add it in advance via our Atlantic Radio Programming Services page. To program them yourself, you'll need the Motorola CPS 2.0 software (HKVN4362A) and the PMKN4010B USB programming cable, both sold separately.
What is the key operational difference between the Motorola XPR5550e and XPR5580e?
The Motorola XPR5550e operates on standard commercial VHF (136–174 MHz) and UHF (403–512 MHz) frequency bands, whereas the Motorola XPR5580e is specifically configured for 800/900 MHz trunked and conventional radio systems.
What display capabilities do the Motorola XPR5550e and XPR5580e offer?
Both the Motorola XPR5550e and Motorola XPR5580e feature a high-resolution 4-line full-color display with flexible day and night viewing modes, allowing operators to easily read text messages, navigate multi-level menus, and identify contact lists.
Can the Motorola XPR5550e and XPR5580e communicate with analog mobile radios?
Yes, both the Motorola XPR5550e and Motorola XPR5580e support dual digital (DMR) and analog modes, allowing seamless communication with legacy analog radio fleets.
Do these mobile radios include built-in Wi-Fi and Bluetooth?
Yes, both the Motorola XPR5550e and Motorola XPR5580e come standard with integrated Wi-Fi for over-the-air software updates and Bluetooth 4.0 for wireless earpiece and data connections.
What operating voltage is required to power these mobile radios?
Both the Motorola XPR5550e and Motorola XPR5580e require a standard 13.8 Volt DC negative ground vehicle electrical power connection.
Warranty
The Motorola MOTOTRBO XPR5550e includes a 5-year manufacturer’s warranty on the radio and a 1-year warranty on included accessories. The XPR5580e includes a 2-year manufacturer’s warranty on the radio and a 1-year warranty on included accessories.
