Description
3/4-Inch Stainless Steel Mounting Bracket for Non-Destructive Fleet Installations
Permanent Mobile Antenna Base Installation
Secure your mobile radio antenna within trunk seams and fender grooves using a heavy-duty stainless steel bracket.

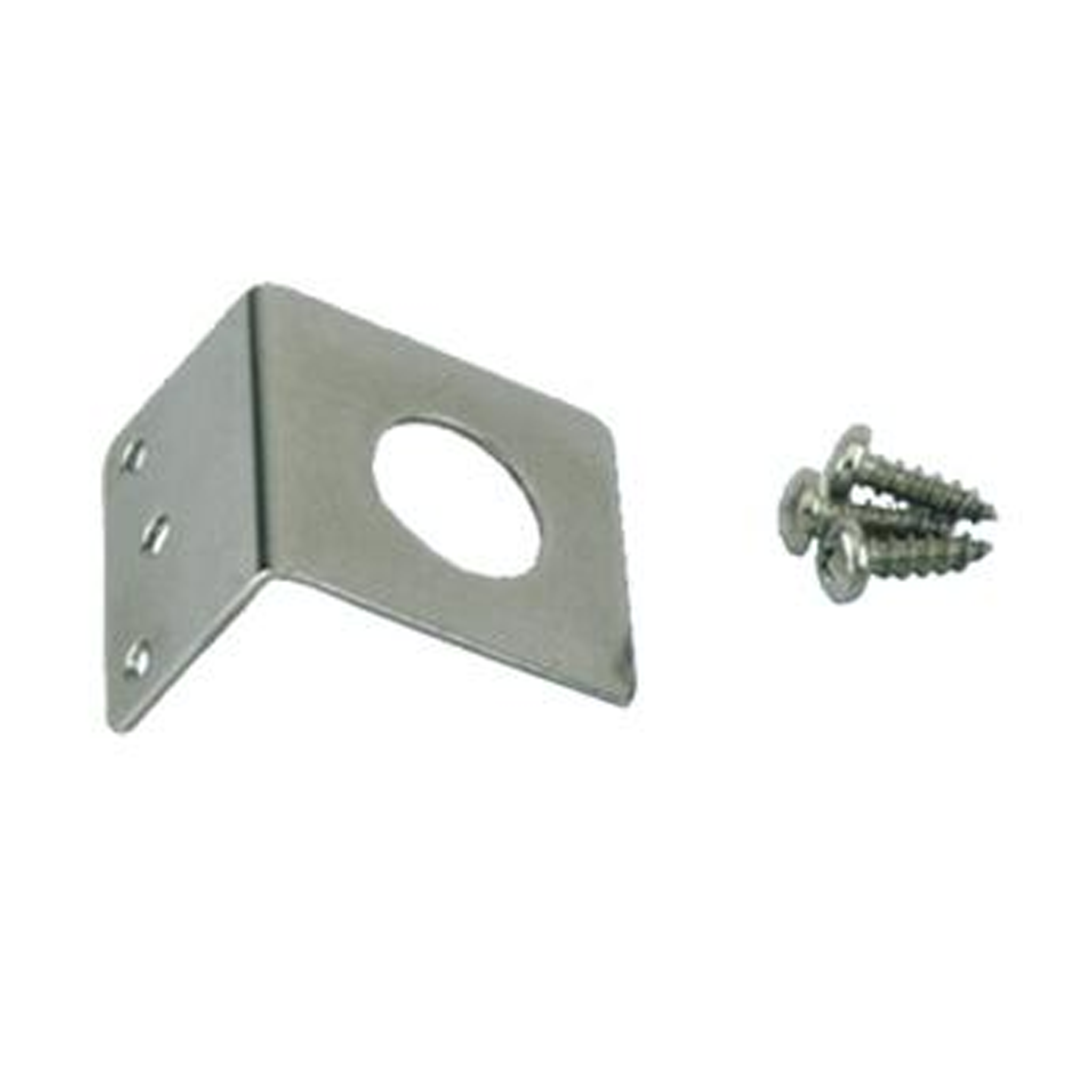

The TE Connectivity Laird LBT3400 3/4" Trunk Groove L-Bracket is a professional-grade, high-durability vehicular mounting solution designed for land mobile radio installations. Featuring a precision-cut 3/4-inch cutout hole, this heavy-duty right-angle bracket is optimized to host industry-standard NMO (New Motorola) style push-in cable mounts and mobile communication antennas. Its low-profile architecture allows field technicians to establish a highly stable antenna foundation within unexposed automotive panel gutters.
This conductive right-angle bracket is an exceptional choice for public safety vehicles, commercial transport fleets, and leased heavy equipment where drilling a permanent hole through the exterior roof or trunk panel is restricted. Fabricated from premium-grade bright stainless steel, it delivers continuous metal-to-metal grounding and total structural resistance against weather extremes, highway wind strain, and high-vibration off-road environments. The assembly mounts discreetly inside hidden channels using the included self-tapping hardware, protecting the vehicle's outer resale value while supporting an optimized RF ground plane.
Key Features & Benefits
-
TE Connectivity Laird LBT3400 3/4" Trunk Groove L-Bracket Build: Provides a rugged right-angle base to anchor 3/4-inch NMO style mobile antennas inside unexposed panel areas.
-
Conductive Stainless Steel Composition: High-grade bright stainless steel material provides superior physical durability and a highly reliable electrical ground path.
-
Hidden Gutter Placement: Mounts cleanly within trunk grooves, vehicle hood seams, or interior fender lines to maintain a clean, professional aesthetic.
-
Deflection-Resistant Form: High-strength structural profile eliminates physical antenna sway and flex when operating at high highway transit speeds.
-
Bundled Fastener Screws: Arrives equipped with heavy-duty self-tapping installation screws to facilitate immediate, tool-ready fleet deployment.
Specifications
| Attribute |
Details |
| Brand |
TE Connectivity Laird |
| Model/SKU |
LBT3400 |
| Alternative SKU |
LBT3400-L |
| Product Type |
Trunk Groove L-Bracket |
| Hole Diameter |
3/4 Inch |
| Mounting Style |
Trunk Gutter / Hood Seam Lip |
| Material |
Stainless Steel |
| Finish |
Bright Metal / Uncoated |
| Hardware Included |
Yes (Self-Tapping Screws) |
More Resources
Frequently Asked Questions
Does this L-bracket include the NMO brass mount or cable?
No. The TE Connectivity Laird LBT3400 includes only the physical stainless steel bracket and self-tapping screws. The NMO cable assembly and antenna must be purchased separately.
What type of antenna mount fits this bracket?
This bracket is engineered with a standard 3/4-inch cutout hole, making it fully compatible with all standard 3/4" NMO push-in or thread-on mobile antenna cable kits.
Where is this bracket installed on a vehicle?
It is designed to be mounted within the unexposed inner channels of a vehicle, such as a trunk lid lip groove or an engine hood seam, providing a clean installation without drilling exterior panels.
Warranty
1-year manufacturer's warranty.
