Description

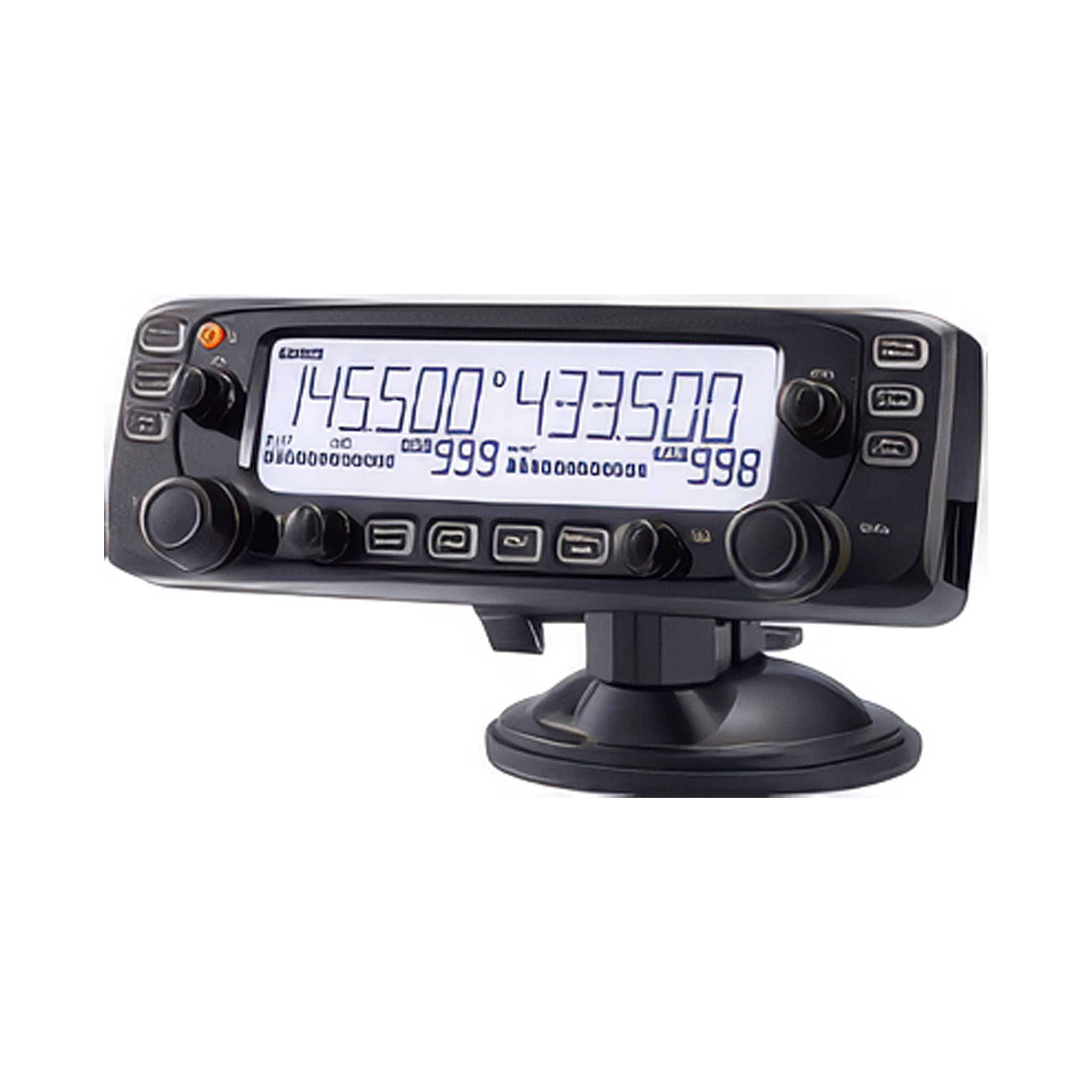

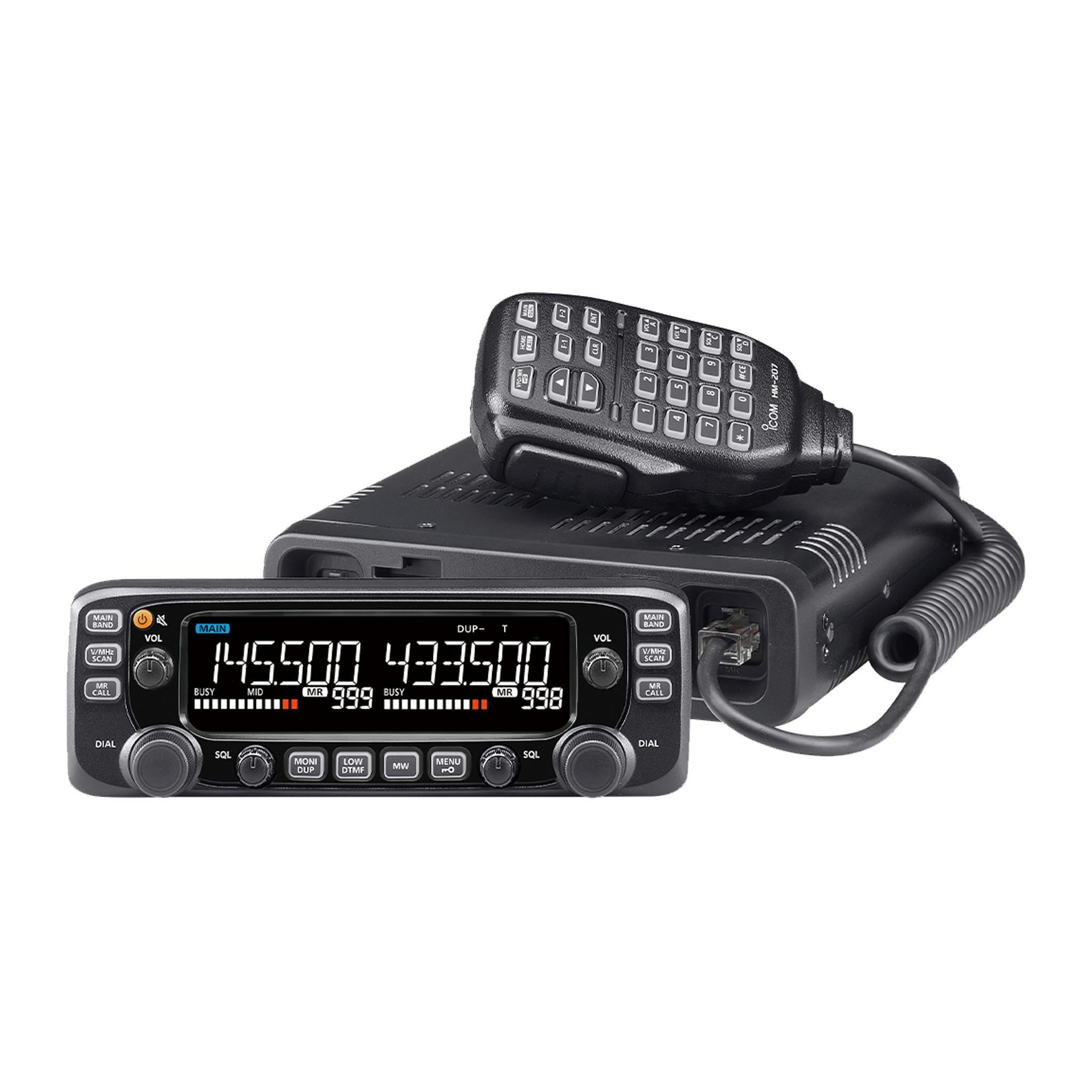

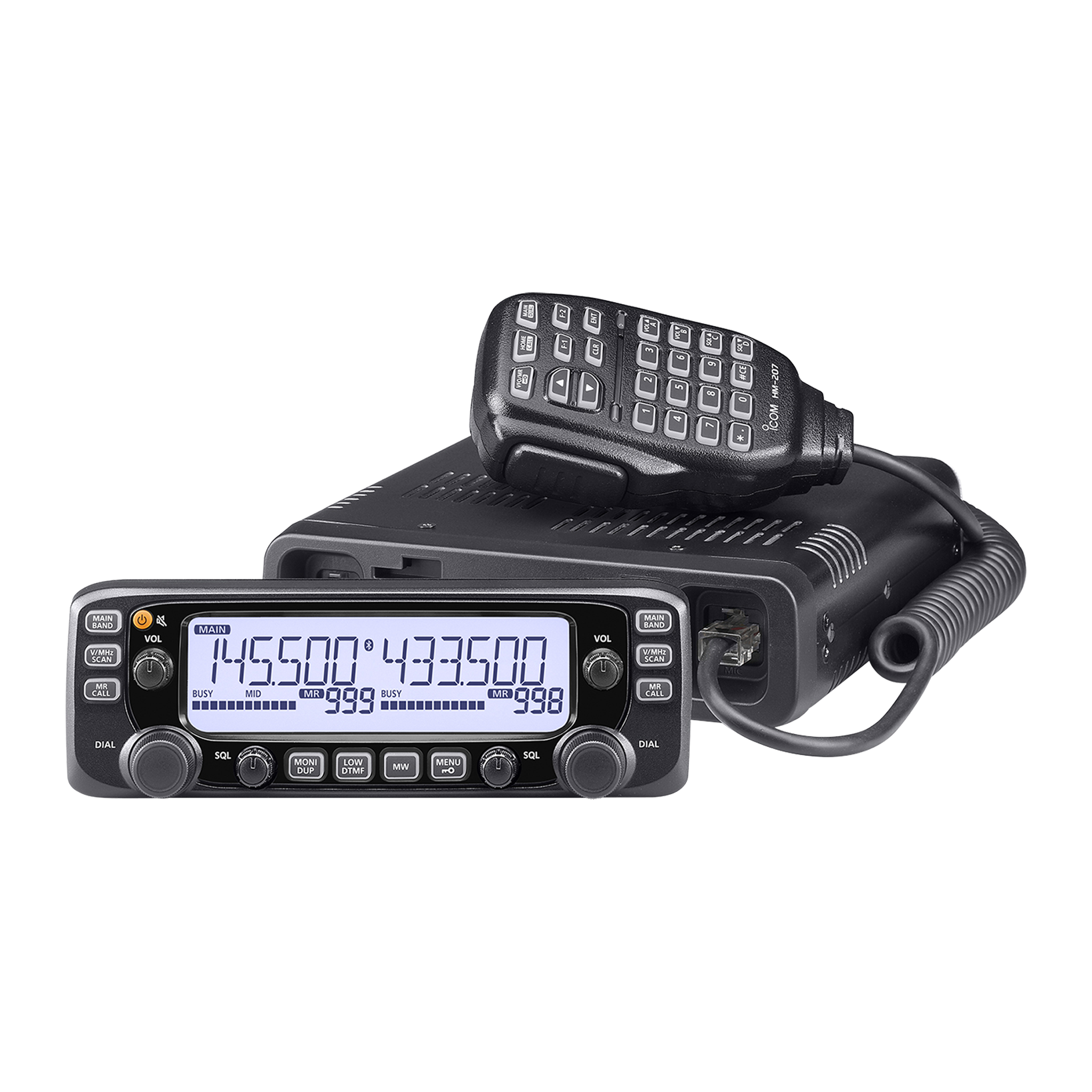

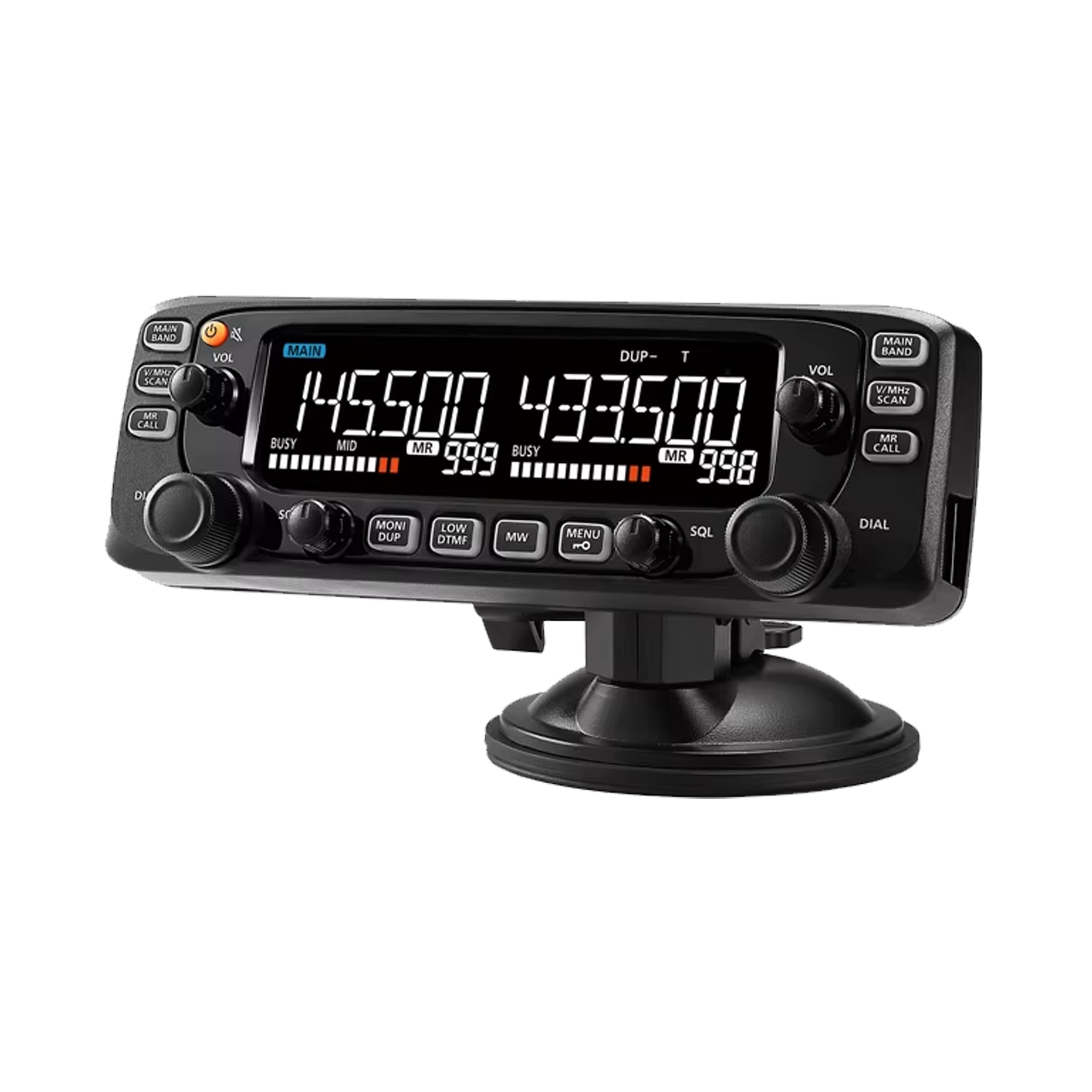

Icom 2730A
VHF/UHF Dual Band Mobile Transceiver
High-Visibility Dual Bander with 50W Output and Bluetooth® Capability
The Icom 2730A is a versatile and user-friendly dual-band mobile transceiver designed for seamless automotive and base station operation. Delivering a powerful 50 Watts of RF output on both the 2m (144–148 MHz) and 70cm (420–450 MHz) bands, this radio ensures reliable long-range communication. Its standout feature is the simultaneous receive capability, allowing operators to monitor VHF/VHF, UHF/UHF, or VHF/UHF combinations concurrently with independent controls for each band.
The 2730A is engineered for safety and ease of use while driving. It features a large, high-contrast white backlit LCD—1.5 times larger than previous models—ensuring frequency and channel names are legible at a glance. For a truly hands-free experience, the radio supports the optional VS-3 Bluetooth® headset (requires UT-133/A unit), providing wireless PTT and VOX operation. The symmetrical layout of tuning, volume, and squelch knobs for both the main and sub-bands allows for precise, intuitive adjustments without the need to navigate complex menus.
Beyond standard amateur radio use, the 2730A includes a wideband receiver covering 118–174 MHz and 375–550 MHz, perfect for monitoring aviation, marine, and weather channels. Whether you prefer the standard white display (2730A 35) or the high-contrast black display (2730B 55 USA), the 2730A provides the ruggedness and high-fidelity audio required for the most demanding mobile environments.
Key Features & Benefits
-
50W Dual Band Output: High-power performance on both VHF and UHF bands for maximum signal reach.
-
Simultaneous Dual Receive: Monitor two frequencies at once with independent volume and squelch controls.
-
Bluetooth® Ready: Supports wireless headsets and hands-free VOX operation for safer mobile use (optional UT-133/A required).
-
Large White Backlit LCD: High-visibility display with adjustable contrast for easy viewing in any lighting condition.
-
Wideband Monitoring: Listen to aviation (AM mode), marine, and utility communications outside the ham bands.
-
Split Tone Capability: Allows for separate CTCSS/DTCS tones for repeater uplink and downlink on a per-channel basis.
Specifications
-
Brand: Icom
-
Model Variations: 2730A 35 (White Display) / 2730B 55 USA (Black Display)
-
Frequency Range: 144–148 MHz (VHF), 420–450 MHz (UHF)
-
Wideband RX: 118–174 MHz, 375–550 MHz
-
Power Output: 50W / 15W / 5W (Selectable)
-
Channels: 1000 Regular, 2 Call, 50 Scan Edges
-
Dimensions (Main Unit): 5.91 × 1.57 × 5.94 inches
-
Dimensions (Controller): 5.91 × 1.97 × 1.07 inches
-
Weight: 2.65 lbs (Main Unit), 0.31 lbs (Controller)
Model Variations
| Part Number |
Display Style |
Description |
| 2730A 35 |
White LCD |
Standard Dual Band Transceiver with White Backlit Display |
| 2730B 55 |
Black LCD |
Dual Band Transceiver with High-Contrast Black Display |
Recommended Accessories
- Bluetooth® Headset (VS3)
- Controller Bracket (MBA5)
What's Included
- Icom 2730A Main Unit and Controller
- Remote Control Microphone (HM-207)
- Controller Cable (OPC-837)
- DC Power Cable (OPC-345)
- Microphone Hanger
Frequently Asked Questions
-
Does the controller attach to the main unit out of the box? No. The controller and main unit are separate for flexible mounting. To attach them together, the optional MBA-4 bracket is required.
-
Is the VS-3 Bluetooth headset included? No, the VS-3 headset and the required internal UT-133/A Bluetooth unit are sold separately.
-
Can I listen to Aircraft frequencies? Yes, the 2730A features a wideband receiver that can monitor the Airband (118–136 MHz) in AM mode.
More Resources
Warranty
1-year manufacturer's warranty
