Description

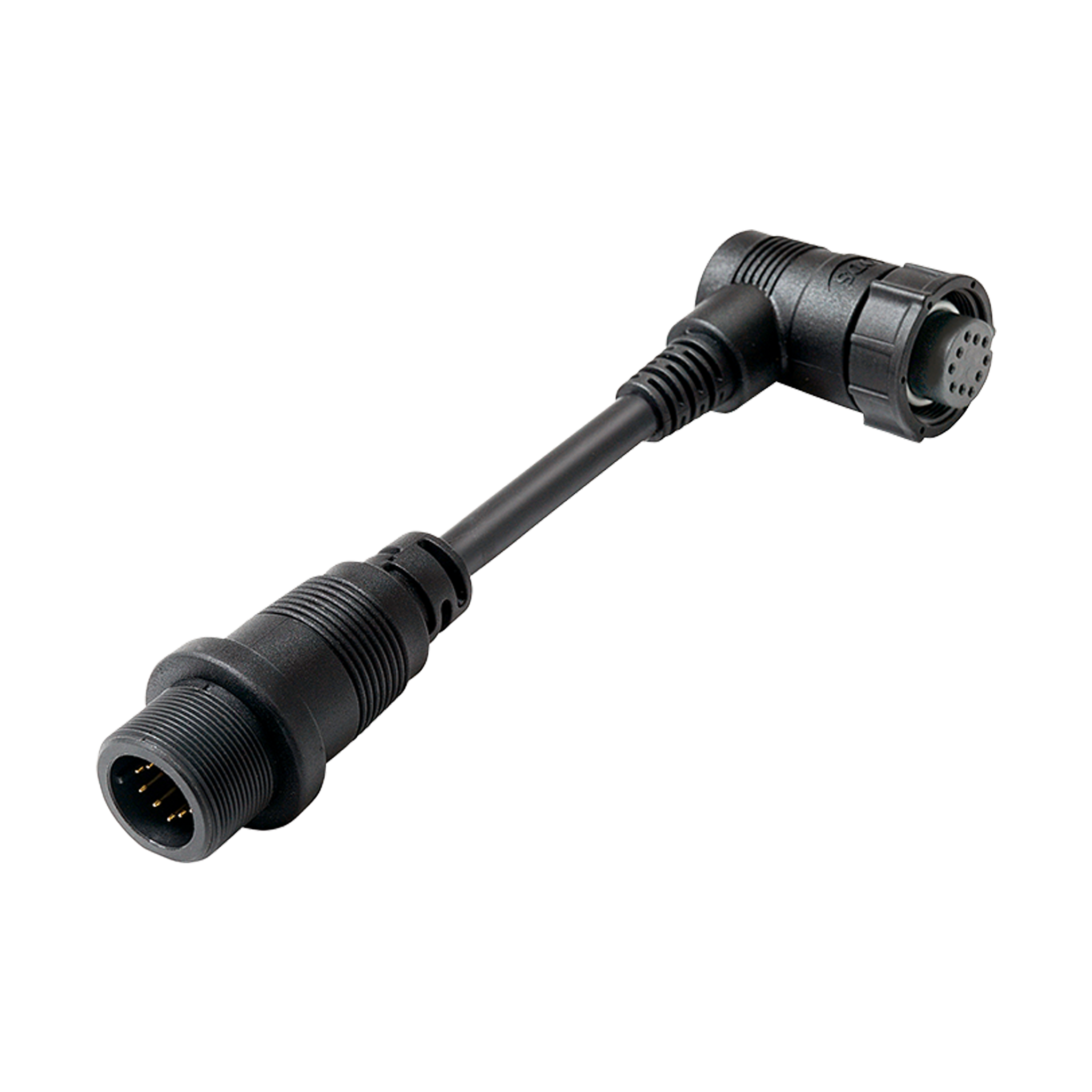

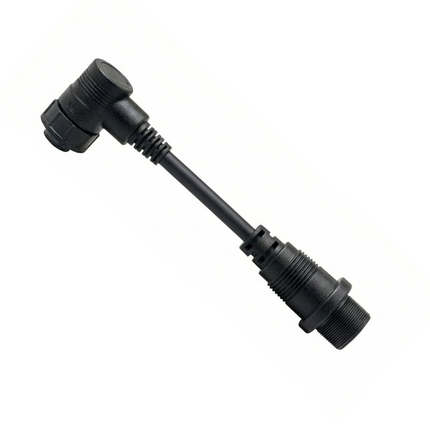

Icom OPC2523L 12
90-Degree L-Type Conversion Adapter Cable
Optimized Connectivity for Tight Marine Installations
The Icom OPC2523L 12 is a precision-engineered 90-degree (L-type) conversion adapter designed to solve cable management challenges in marine environments. In the limited space of a boat's helm or electronics cabinet, standard straight connectors often require significant clearance and are susceptible to stress-induced damage. This 10-pin to 10-pin adapter redirects the cable at a right angle, allowing for low-profile installations and significantly reducing the physical strain on both the transceiver's accessory port and the microphone connector.
Measuring 150 mm (5.9 inches) in length, the OPC2523L 12 provides a reliable bridge between your HM-195 series CommandMic™ and the transceiver. It is an essential accessory for "black-box" radio systems and flush-mount setups where space is at a premium. By providing a secure, stable link, this cable ensures that your essential data and audio transmissions remain uninterrupted even during high-speed transit or in heavy seas.
Key Features
-
90-Degree L-Type Design: Offers a right-angle connection for cleaner wiring and easier installation in confined dashboard spaces.
-
10-Pin to 10-Pin Interface: Specifically engineered for seamless integration between the HM-195 series CommandMic and compatible transceivers.
-
Compact 150 mm Length: Provides just enough flexibility to improve cable routing without adding unnecessary clutter to the electronics area.
-
Reduced Connector Strain: Prevents the kinking and bending associated with straight cables, extending the lifespan of your marine communication hardware.
-
Secure Marine Coupling: Built to withstand the vibrations and moisture typical of maritime environments, ensuring a consistent and reliable connection.
Compatibility
| M410BB |
M424G |
M510 |
M510EVO |
| M510BB |
M605 |
|
|
Specifications
-
Part Number: OPC2523L 12
-
Connector Type: 10-pin to 10-pin
-
Cable Length: 150 mm (5.9 in)
-
Design: L-Type (90-degree angle)
-
Application: Marine CommandMic Adapter
Benefits
-
Clean Dash Installation: The 90-degree angle allows for a professional, flush-mounted appearance by routing cables immediately behind the panel.
-
Space-Saving Performance: Ideal for vessels with shallow bulkheads or small navigation stations where straight-plug clearance is unavailable.
-
Reliable Audio & Data: Maintains the full feature set of the CommandMic series with zero signal loss or interference across the adapter.
Warranty
1-year manufacturer's warranty.
