Description
Next-Generation Heavy-Duty Digital Portable Transceivers
Equip your fleet with advanced AI noise cancellation, multi-system trunking scalability, and military-grade durability.
The Motorola MOTOTRBO R7 Digital Portable Radio series introduces a revolutionary standard in professional wireless communication, designed to support heavy industrial, public safety, and enterprise operations. This unified line features premium voice-first processing architectures available in both Full Keypad with Display configurations and ultra-rugged Non-Display form factors. Equipped with Adaptive Dual Microphone Noise Suppression and automated acoustic feedback management, the R7 series ensures absolute voice intelligibility even when operated adjacent to heavy manufacturing machinery, mining gear, or emergency sirens.
Fleet coordinators can scale their deployments by selecting between Capable models (hardware-ready for future feature enablement via individual software keys) and Enabled tiers (out-of-the-box activation of integrated Wi-Fi, GNSS location data tracking, and advanced software suites). For high-risk deployment zones like oil refineries, chemical production plants, and grain processing terminals, the R7 platform offers specialized TIA-4950 UL-Rated intrinsically safe configurations to guarantee spark-free operations in hazardous atmospheres. Engineered to secure maximum operational uptime, the series is built with rugged military-grade housings boasting simultaneous IP68 submersible ratings and IP66 high-pressure water jet resistance.
Transform your team's communication experience with the Motorola MOTOTRBO R7, the next step in two-way radio technology. For more information or to discuss your fleet requirements, contact us here.
Key Features & Benefits
Seamless System Migration: Delivers migration paths between analog conventional systems, digital conventional lines, and multi-site trunked configurations.
Adaptive Dual Microphone Design: Utilizes SINC+ intelligent noise cancellation to automatically isolate human speech from high-decibel ambient environmental noise.

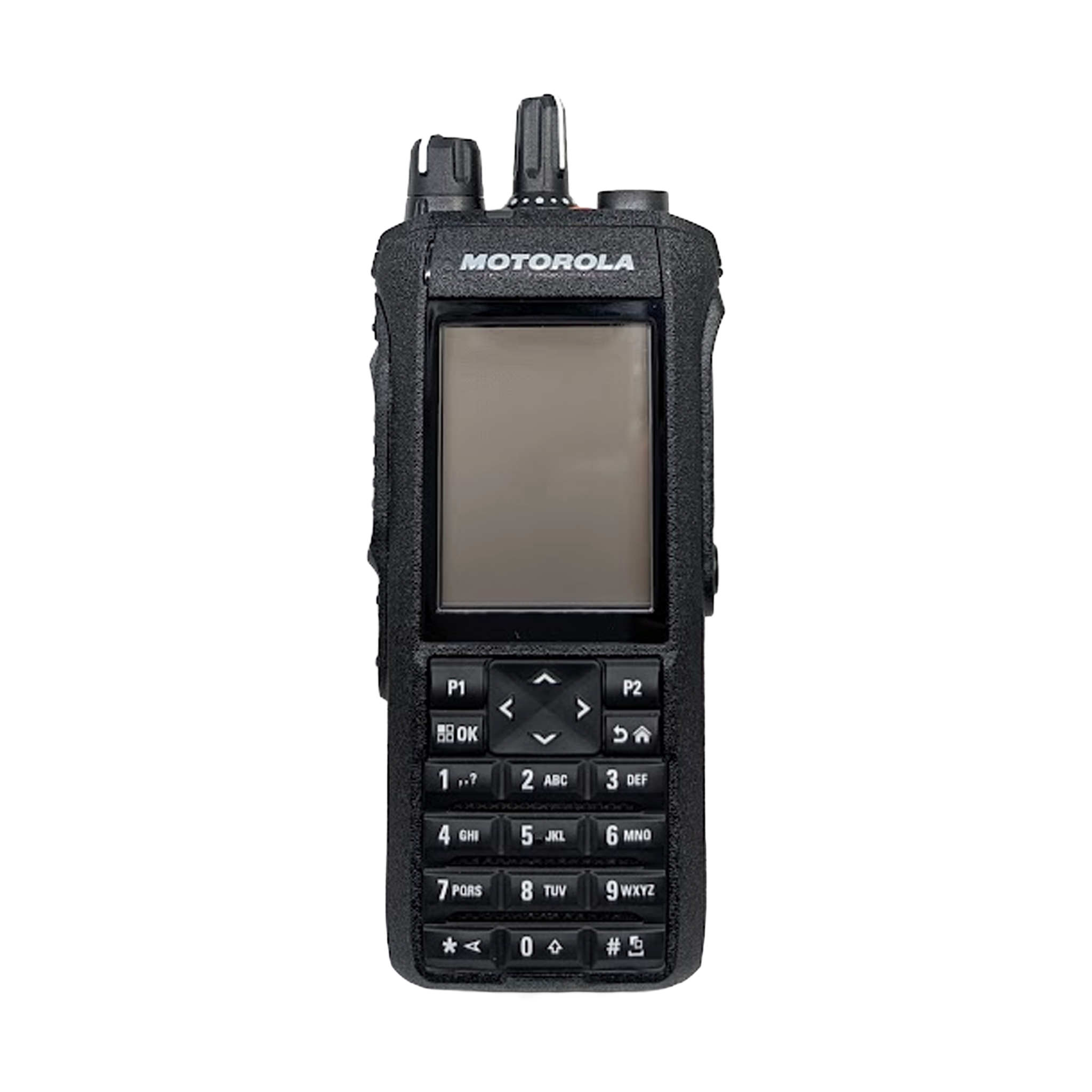

Vibrant Navigation Screen Option: Full Keypad variations feature a 2.4-inch sunlight-readable QVGA display for swift data messaging, caller mapping, and contact searches.
Intrinsically Safe Hazard Engineering: Optional TIA-4950 UL certifications provide comprehensive electronic isolation to safely prevent explosive source ignition.
Future-Ready Connectivity: Integrated Bluetooth 5.2 and dual-band Wi-Fi channels enable rapid fleet configuration adjustments and firmware flashing over-the-air.
Specifications
| Attribute |
Details |
| Brand |
Motorola |
| Model/SKU |
MOTOTRBO R7 Series |
| Product Type |
Digital Portable Two-Way Radio |
| Frequency Bands |
VHF (136–174 MHz), UHF (400–527 MHz), 800/900 MHz (806–941 MHz) |
| Channel Capacity |
1,000 Channels (Display) / 64 Channels (Non-Display) |
| IP Rating |
IP68 (Submersible 2m for 2h) and IP66 (High-Pressure Jets) |
| Safety Rating |
Standard or TIA-4950 (UL-Rated) Intrinsically Safe |
| Connectivity |
Bluetooth 5.2, Wi-Fi (2.4/5.0 GHz), GNSS/GPS |
| Programming Method |
Mini GCAI USB or Over-the-Air (Wi-Fi) |
| Country of Origin |
Malaysia |
Model Variations
| Model Type |
Frequency |
Version |
SKU |
| Full Keypad & Display |
UHF Standard |
Capable |
AAH06RDN9WA1AN |
| Full Keypad & Display |
UHF Standard |
Enabled |
AAH06RDN9RA1AN |
| Full Keypad & Display |
VHF Standard |
Capable |
AAH06JDN9WA1AN |
| Full Keypad & Display |
VHF Standard |
Enabled |
AAH06JDN9RA1AN |
| Full Keypad & Display |
800/900 Standard |
Capable |
AAH06UCN9WB1AN |
| Full Keypad & Display |
800/900 Standard |
Enabled |
AAH06UCN9RB1AN |
| Full Keypad & Display |
UHF UL-Rated |
Capable |
AAH06RDN9WA1AN-UL |
| Full Keypad & Display |
UHF UL-Rated |
Enabled |
AAH06RDN9RA1AN-UL |
| Full Keypad & Display |
VHF UL-Rated |
Capable |
AAH06JDN9WA1AN-UL |
| Full Keypad & Display |
VHF UL-Rated |
Enabled |
AAH06JDN9RA1AN-UL |
| Full Keypad & Display |
800/900 UL-Rated |
Capable |
AAH06UCN9WB1AN-UL |
| Full Keypad & Display |
800/900 UL-Rated |
Enabled |
AAH06UCN9RB1AN-UL |
| Non-Display |
UHF Standard |
Capable |
AAH06RDC9WA1AN |
| Non-Display |
UHF Standard |
Enabled |
AAH06RDC9RA1AN |
| Non-Display |
VHF Standard |
Capable |
AAH06JDC9WA1AN |
| Non-Display |
VHF Standard |
Enabled |
AAH06JDC9RA1AN |
| Non-Display |
800/900 Standard |
Capable |
AAH06UCC9WB1AN |
| Non-Display |
800/900 Standard |
Enabled |
AAH06UCC9RB1AN |
| Non-Display |
UHF UL-Rated |
Capable |
AAH06RDC9WA1AN-UL |
| Non-Display |
UHF UL-Rated |
Enabled |
AAH06RDC9RA1AN-UL |
| Non-Display |
VHF UL-Rated |
Capable |
AAH06JDC9WA1AN-UL |
| Non-Display |
VHF UL-Rated |
Enabled |
AAH06JDC9RA1AN-UL |
| Non-Display |
800/900 UL-Rated |
Capable |
AAH06UCC9WB1AN-UL |
| Non-Display |
800/900 UL-Rated |
Enabled |
AAH06UCC9RB1AN-UL |

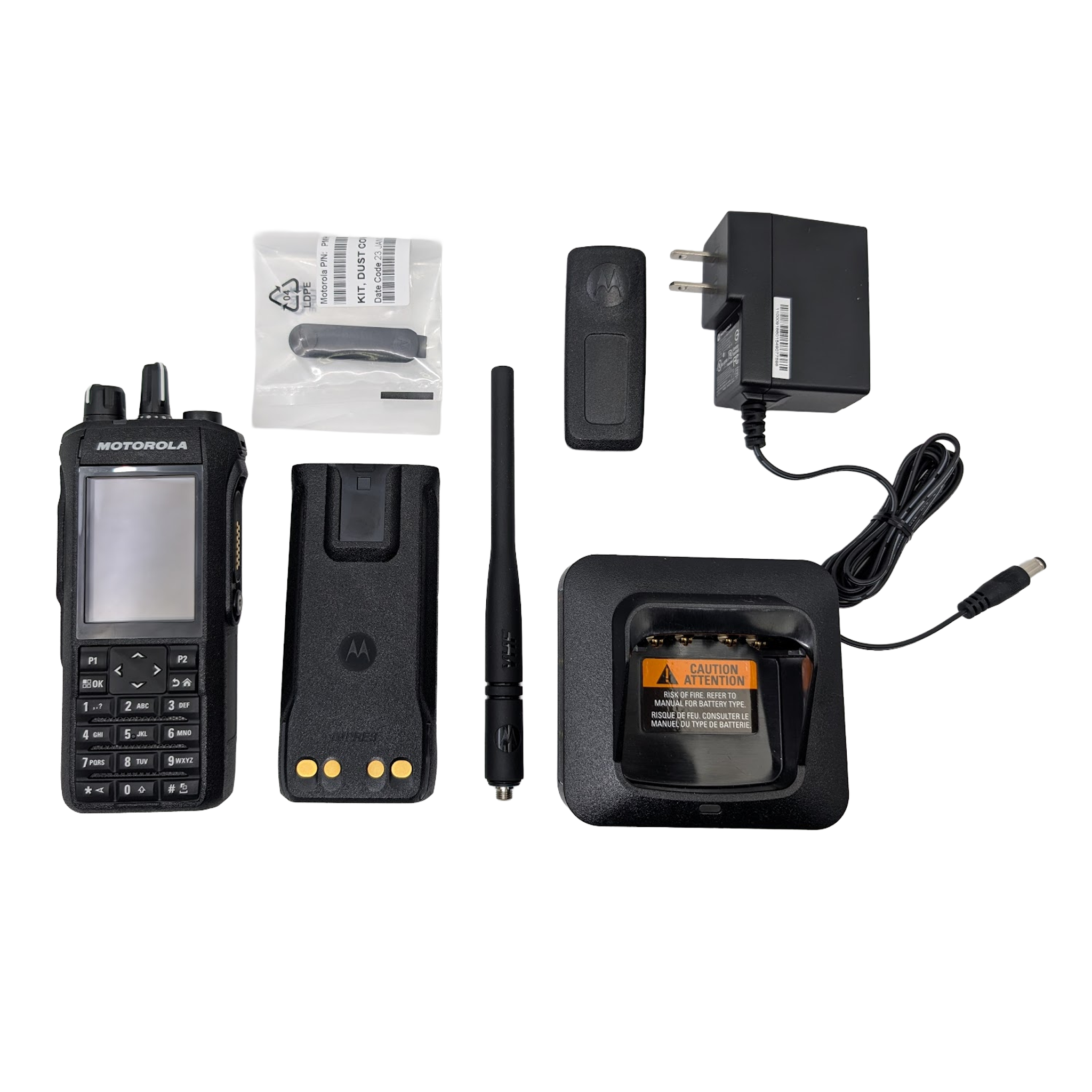

What's Included
Recommended Accessories
Batteries
Motorola PMNN4603A IMPRES Li-Ion Battery (3200mAh, IP68) - High-capacity IMPRES lithium-ion battery with self-calibration for the MOTOTRBO R7.
Motorola PMNN4810A IMPRES Intrinsically Safe Battery (3200mAh) - TIA-4950 UL-certified intrinsically safe battery for R7 deployments in hazardous environments.
Motorola PMNN4807A Lithium-Ion Battery (2200mAh) - Standard lithium-ion battery for the MOTOTRBO R7.
Motorola PMNN4809A Lithium-Ion Battery (2850mAh) - Mid-capacity lithium-ion battery for the MOTOTRBO R7.
Charging
Motorola PMPN4576A IMPRES 2 Single-Unit Desktop Charger - IMPRES 2 single-unit desktop charger for the MOTOTRBO R7 battery.
Motorola PMPN4284B Multi-Unit Charger for 6 Radios or Batteries - Six-unit charger for simultaneous charging of up to 6 R7 radios or batteries.
Microphones
Motorola PMMN4131B IMPRES RM730 Small Remote Speaker Microphone (IP68) - Compact IP68-rated remote speaker microphone for the MOTOTRBO R7.
Motorola PMMN4140B IMPRES RM760 Remote Speaker Microphone - IMPRES remote speaker microphone for the MOTOTRBO R7.
Motorola PMMN4128A IMPRES RM780 Remote Speaker Microphone - IMPRES remote speaker microphone for the MOTOTRBO R7.
Programming
Motorola PMKN4265A USB Programming Cable - USB programming cable with Mini GCAI connector for codeplug and firmware updates on the R7.
Accessories
Motorola PMHN4429A Side Connector Dust Cover - Replacement dust cover for the R7 accessory port to protect against debris and moisture ingress.
More Resources
Shop All Motorola R7 Accessories & Parts
Motorola R7 Data Sheet (PDF)
Motorola R7 Product Brochure (PDF)
Frequently Asked Questions
What is the difference between R7 Capable and Enabled variants?
Enabled models feature pre-activated factory software licenses for Wi-Fi, Audio Recording, Generic Gas Sensor, M-Radio Control App, and Capacity MAX. Capable models house the physical hardware modules but require aftermarket software license keys to activate those features.
Can the Non-Display MOTOTRBO R7 send text messages?
No. Free-form text entry and menu-driven messaging workflows require the Full Keypad and Display model variant. Non-Display versions are optimized entirely for voice-first operations via the 16-position top channel index dial.
Is the standard R7 battery safe to use in oil and gas refineries?
No. Standard models using the PMNN4603A battery are not rated for explosive hazard environments. You must specifically purchase the UL-Rated TIA-4950 variants running the PMNN4810A intrinsically safe battery.
How do I program the MOTOTRBO R7?
The R7 can be programmed via a wired connection using the PMKN4265A USB Programming Cable with Motorola MOTOTRBO CPS 2.0 Programming Software, or over-the-air via Wi-Fi on Enabled models. If you prefer to have your radios professionally programmed, Atlantic Radio's Programming Services are available for both analog and digital configurations.
What is the warranty on the MOTOTRBO R7?
The main radio chassis is covered by a 5-year manufacturer's warranty. Included kit accessories are backed by a 1-year warranty.
Warranty
The main radio chassis is covered by a 5-year manufacturer's warranty. Included kit accessories are backed by a 1-year warranty.
