Description

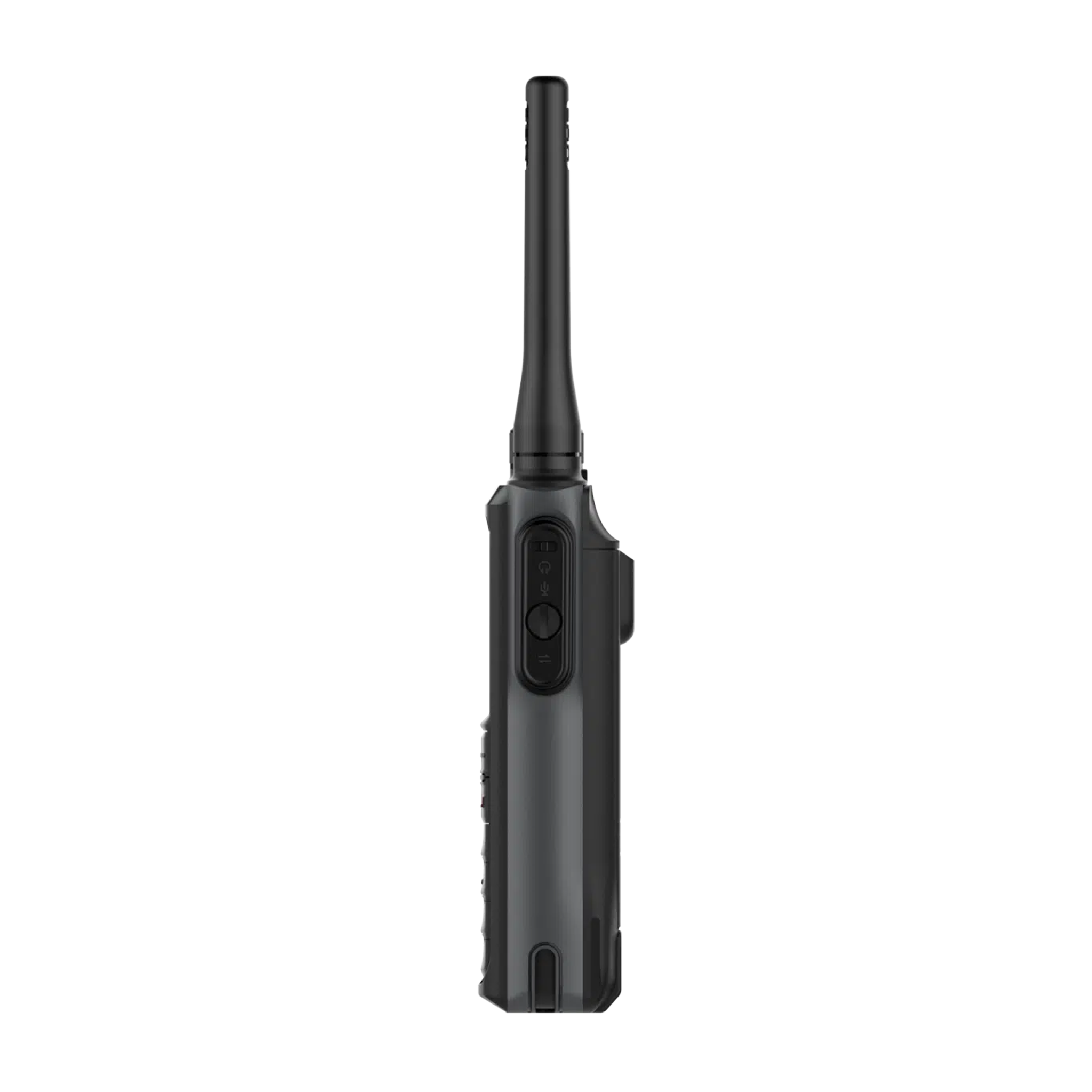

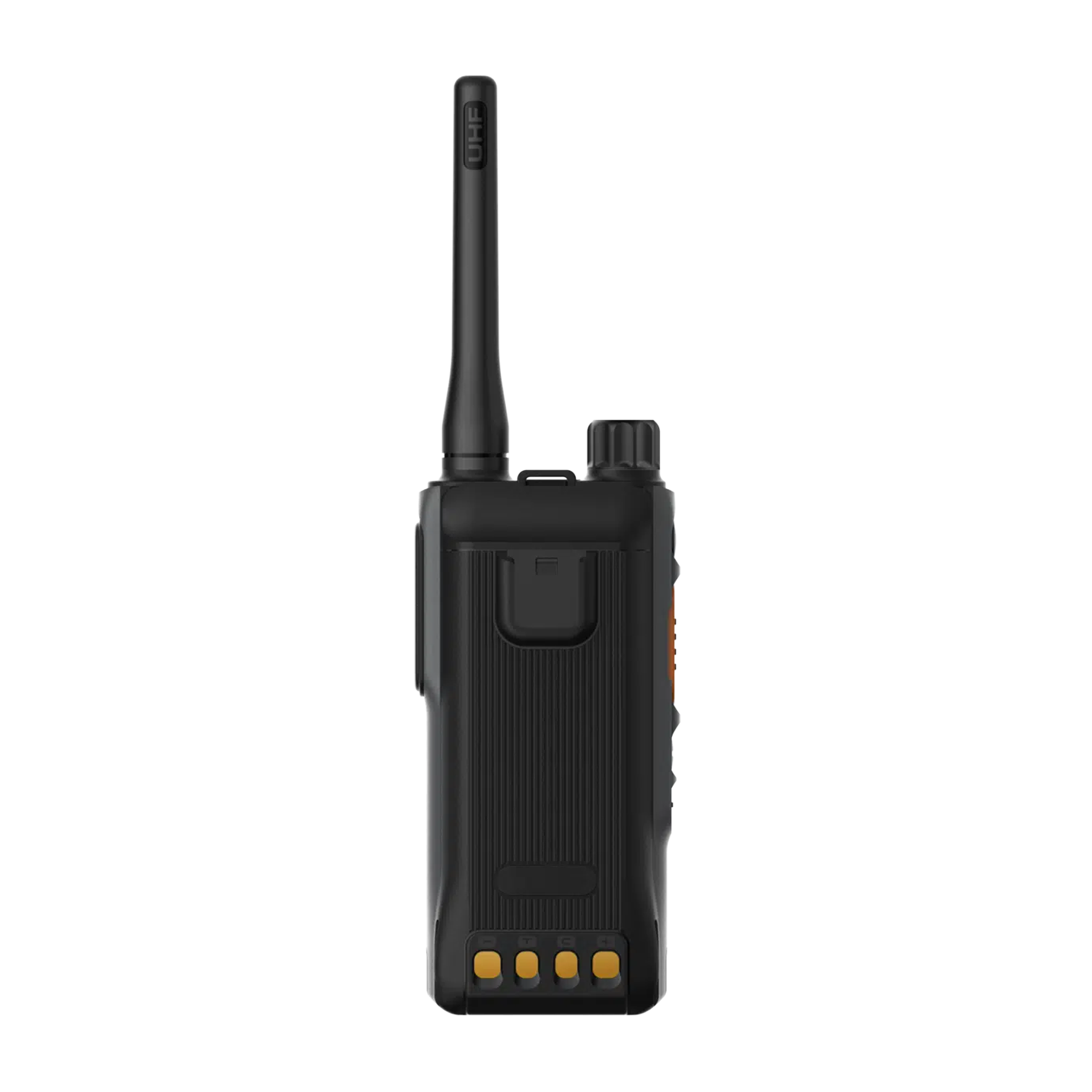

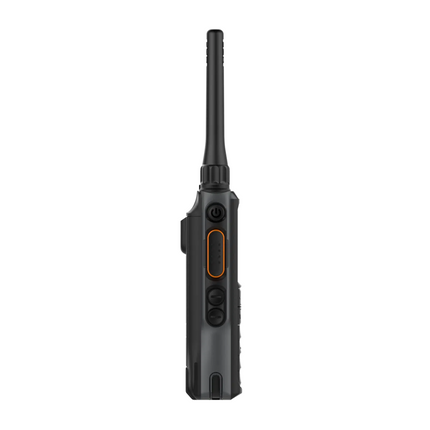

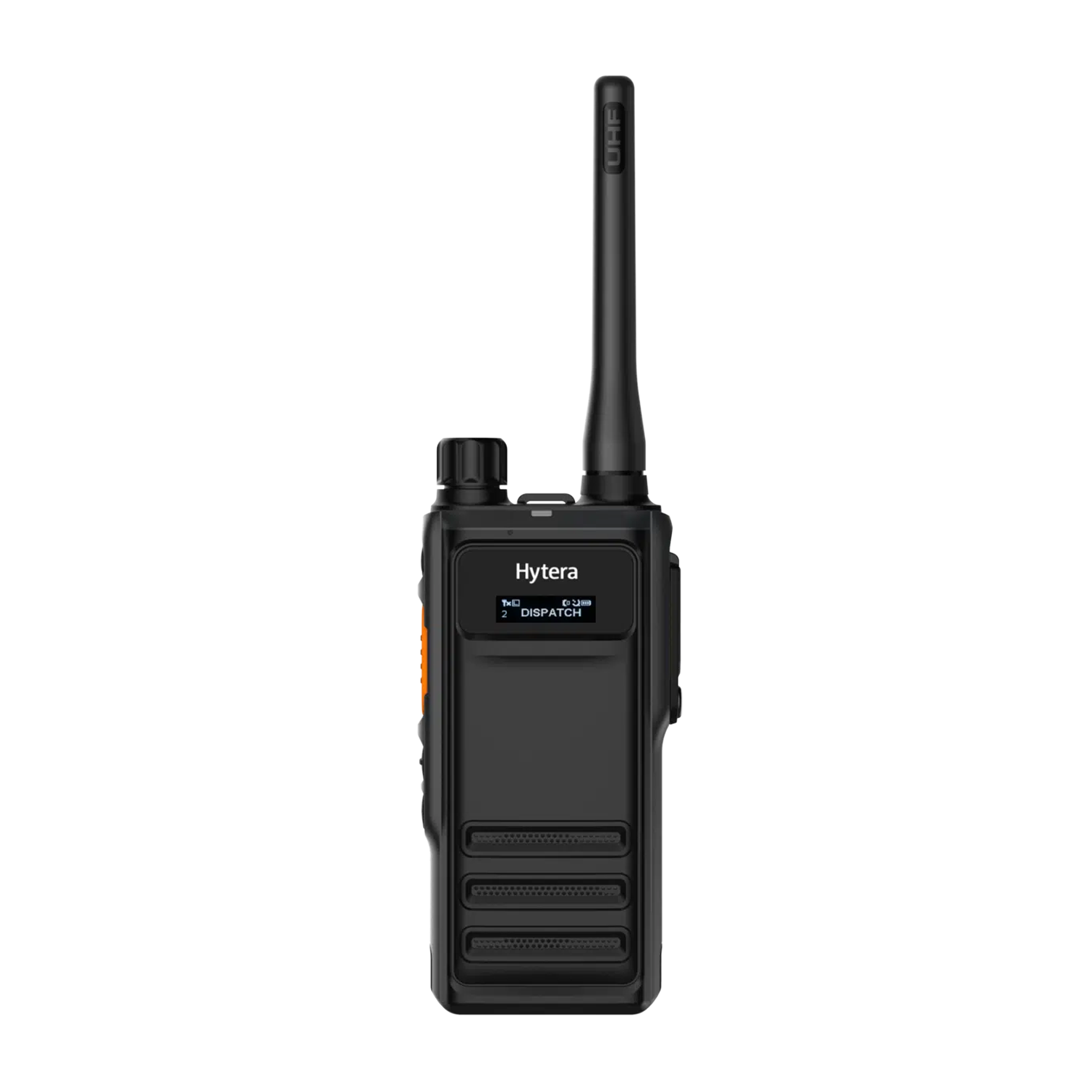

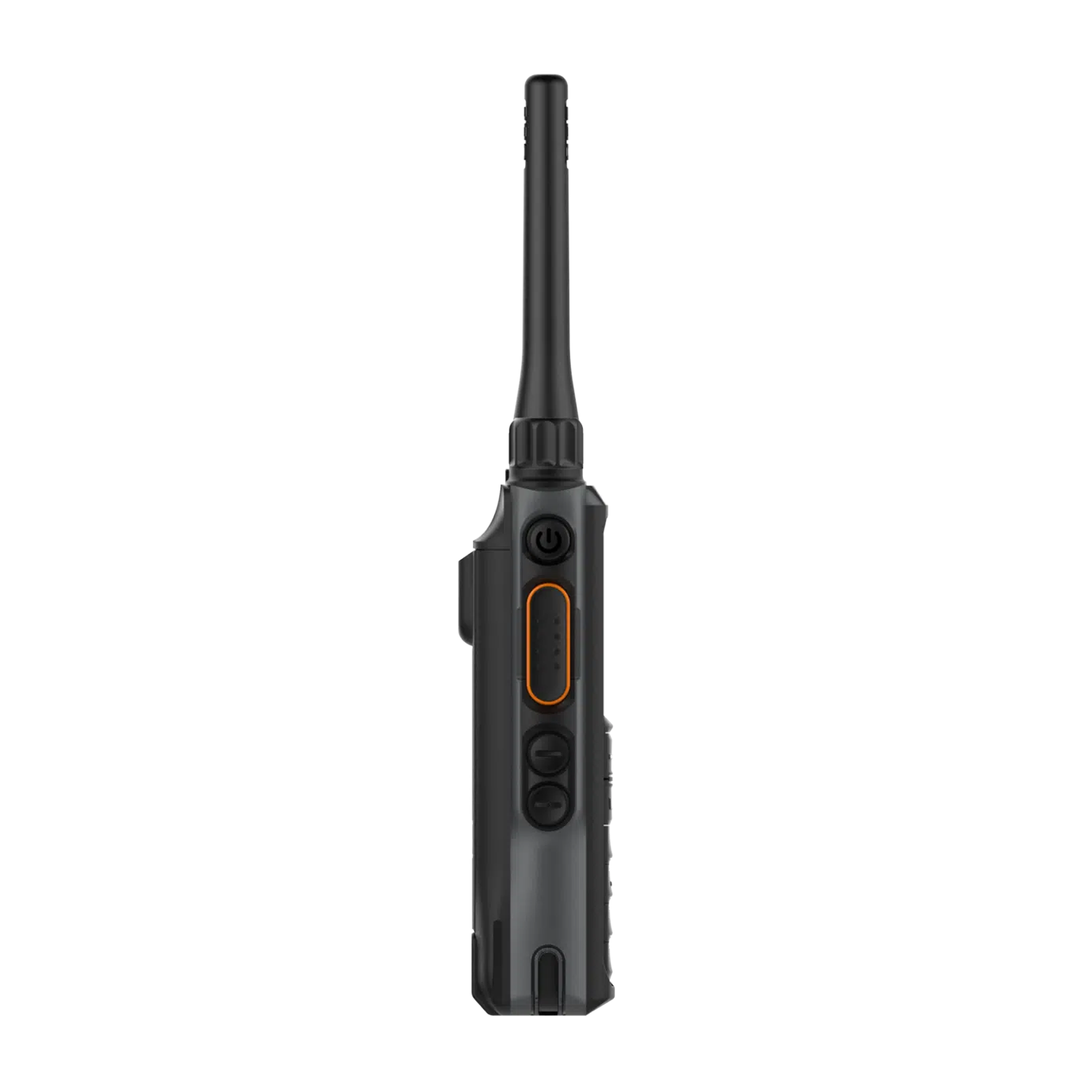

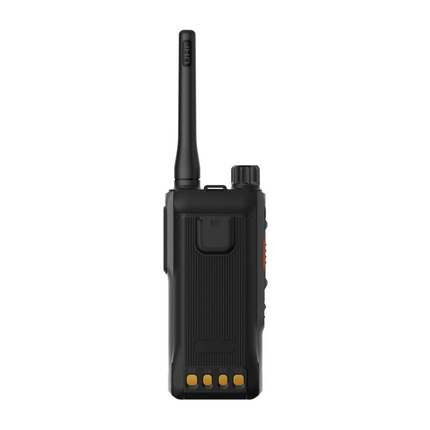

Hytera HP602 Digital Portable Two-Way Radio
The Hytera HP602 is an H-Series DMR portable two-way radio designed for clear communications and straightforward operation. Its 0.91-inch OLED display shows essential channel, signal, and power information at a glance, without the HP682's full keypad and larger color screen.
Built for professionals in customer service, event management, and demanding working environments, the HP602 combines extended coverage, AI-enhanced audio, and up to 20-hour battery life in a compact radio that weighs less than 10 ounces.
Key Features & Benefits
-
Compact OLED Display: The 0.91-inch screen presents essential radio status information. The HP602 does not have the HP682's full DTMF keypad or 1.8-inch color display.
-
Industry-Leading Audio Quality: Forward-facing speaker, water-porting technology, and AI-based voice enhancement suppress background noise by up to 30 dB.
-
Dual Mode, Analog & Digital: Operates in DMR digital and analog FM modes for migration from legacy analog fleets.
-
20-Hour Battery Life: A 2000 mAh Lithium Polymer battery provides up to 20 hours of operation on a 5/5/90 duty cycle with GPS disabled.
-
Enhanced Worker Safety: Programmable Emergency button, Lone Worker, Man Down, and priority interrupt support critical communications.
-
GPS & Bluetooth on Equipped Models: Select GPS and Bluetooth variants for location tracking and wireless accessory connectivity.
Extreme Ruggedness & Security
The Hytera HP602 is rated IP67 for dust and water protection and meets MIL-STD-810G requirements, with a 2-meter drop rating. Water-porting technology helps drain water from the speaker cavity.
Basic ARC4 digital encryption is included. The optional Hytera SW00017 AES256 license adds AES 256-bit encryption and is sold separately for each radio.
Target Applications
| Industry |
Use Case |
| Customer Service & Retail |
Staff coordination, floor management, and rapid response to customer needs |
| Event Management |
Venue-wide crew coordination, security dispatch, and logistics management |
| Hospitality |
Hotel and resort staff communications across large properties |
| Security & Public Safety |
Patrol coordination, emergency response, and encrypted communications |
| Construction & Utilities |
Job site coordination in harsh outdoor environments |
| Government & Municipal |
Fleet communications requiring rugged, encrypted, and reliable radios |
General Specifications
| Attribute |
Details |
| Model |
Hytera HP602 |
| Frequency Range |
UHF: 400–527 MHz; VHF: 136–174 MHz, depending on model |
| Channel Capacity |
1,024 channels (512 analog, 512 digital) |
| Zone Capacity |
64 zones with 256 channels per zone |
| Channel Spacing |
12.5 / 20 / 25 kHz |
| Rated Operating Voltage |
7.7V |
| Battery |
2000 mAh Li-Polymer (BP2002) |
| Battery Life (5/5/90 Duty Cycle) |
16 hours with GPS on; 20 hours with GPS disabled |
| Weight |
Less than 10 oz |
| Frequency Stability |
±0.5 ppm |
| Antenna Impedance |
50Ω |
| Display |
0.91-inch OLED |
| Keypad |
No full DTMF keypad |
| Bluetooth (Equipped Models Only) |
BT 5.0 BLE + EDR |
| Encryption (Standard) |
ARC4 digital encryption, included |
| Encryption (Optional) |
AES 256-bit with SW00017 license, sold separately |
Transmitter Specifications
| Attribute |
Details |
| RF Power Output |
VHF: 5W high / 1W low; UHF: 4W high / 1W low |
| FM Modulation |
11K0F3E at 12.5 kHz; 14K0F3E at 20 kHz; 16K0F3E at 25 kHz |
| 4FSK Digital Modulation |
12.5 kHz data only: 7K60FXD; 12.5 kHz data and voice: 7K60FXW |
| Conducted/Radiated Emission |
-36 dBm below 1 GHz; -30 dBm above 1 GHz |
| Modulation Limiting |
±2.5 kHz at 12.5 kHz; ±4.0 kHz at 20 kHz; ±5.0 kHz at 25 kHz |
| FM Hum and Noise |
40 dB at 12.5 kHz; 43 dB at 20 kHz; 45 dB at 25 kHz |
| Adjacent Channel Power |
60 dB at 12.5 kHz; 70 dB at 25 kHz |
| Audio Response |
+1 to -3 dB |
| Audio Distortion |
≤3% |
| Digital Vocoder Type |
AMBE+2™ |
Receiver Specifications
| Attribute |
Details |
| Digital Sensitivity |
0.18 μV (5% BER) |
| Analog Sensitivity |
0.16 μV typical (12 dB SINAD); 0.18 μV (12 dB SINAD) |
| Adjacent Selectivity |
TIA-603 and ETSI: 60 dB at 12.5 kHz; 70 dB at 20/25 kHz |
| Spurious Response Rejection |
TIA-603 and ETSI: 70 dB at 12.5/20/25 kHz |
| Intermodulation |
TIA-603: 70 dB at 12.5/20/25 kHz; ETSI: 65 dB at 12.5/20/25 kHz |
| Hum and Noise |
40 dB at 12.5 kHz; 43 dB at 20 kHz; 45 dB at 25 kHz |
| Rated Audio Power Output |
0.5W |
| Rated Audio Distortion |
≤3% |
| Audio Response |
+1 to -3 dB |
| Conducted Spurious Emission |
<-57 dBm |
Environmental Specifications
| Attribute |
Details |
| Operating Temperature |
-20°C to +60°C |
| Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Electrostatic Discharge (ESD) |
IEC 61000-4-2, Level 4: ±8 kV contact; ±15 kV air |
| Dust and Water Ingress |
IP67 |
| Humidity |
Per MIL-STD-810 C/D/E/F/G |
| Shock and Vibration |
Per MIL-STD-810 C/D/E/F/G |
| Drop Resistance |
2 meters |
GPS Specifications (Equipped Models Only)
| Attribute |
Details |
| Time to First Fix, Cold Start |
<60 seconds, typical |
| Time to First Fix, Hot Start |
<10 seconds, typical |
| Horizontal Accuracy |
<5 meters |
GPS specifications are based on five visible satellites. GPS and Bluetooth features apply only to equipped variants.
Model Variations
Select the required frequency band and feature configuration before ordering. UHF and VHF are separate radio models, not a dual-band radio.
Standard Models
-
HP602-Um: Standard UHF model
-
HP602-V1: Standard VHF model
GPS & Bluetooth Models
-
HP602-G-BT-Um: UHF with GPS and Bluetooth
-
HP602-G-BT-V1: VHF with GPS and Bluetooth
What's Included
| Description |
SKU/Model |
Status |
| Portable Two-Way Radio |
HP602, variant selected |
Included |
| Li-Polymer Battery, 2000 mAh |
BP2002 |
Included |
| Standard VHF Antenna, 147–160 MHz |
AN0153H07 |
Included with VHF models only |
| Standard UHF Whip Antenna, 400–470 MHz |
AN0435W09 |
Included with UHF models only |
| Belt Clip |
BC48 |
Included |
| Customer Programming Software |
H-Series CPS |
Included |
| Desktop Charger & Power Supply |
CH10L30 + PS1014
|
Included |
| AES256 Encryption License |
SW00017 |
Sold Separately |
The kit includes one antenna matching the selected radio band, not both antennas. The antenna frequency ranges are narrower than the radio's tuning range; match the antenna to your operating frequencies.
Recommended Accessories
Programming
Encryption
Earpieces
Audio accessories are sold separately. Receive-only earpieces require a compatible audio cable or adapter and do not provide a microphone by themselves.
Speaker Mics
Bluetooth
For Bluetooth-equipped HP602-G-BT-Um and HP602-G-BT-V1 models only. These accessories are sold separately and are not included with the radio kit.
Batteries
Chargers
Antennas
Select an SMA antenna matching your radio band and operating frequencies. AN0153H07 is included with VHF models; AN0435W09 is included with UHF models. Other options are sold separately. GPS antenna specifications apply only when used with a GPS-equipped radio.
Carry Accessories
Related Radios
Frequently Asked Questions
Does the Hytera HP602 need programming, and is the software included?
Yes. The HP602 needs to be configured to match your network's frequencies and analog or digital settings. The HP602-compatible H-Series version of Hytera CPS is included with an HP602 purchase from Atlantic Radio. Self-programming also requires a compatible Windows PC and the PC152 cable, sold separately. Software inclusion does not include the programming cable or programming service.
What is the difference between the HP602 and HP682?
The HP602 has a 0.91-inch OLED display and no full DTMF keypad. The HP682 has a larger 1.8-inch color display and full keypad for menu navigation, text entry, and manual dialing. Both share the HP6 series core radio features and accessory options.
Does the HP602 feature location tracking?
Only equipped models support GPS location tracking and Bluetooth. Select HP602-G-BT-Um for UHF or HP602-G-BT-V1 for VHF when those features are required.
Can the HP602 communicate with older analog radios?
Yes. The HP602 supports analog FM and digital DMR. Analog communication requires the same frequency band, matching frequencies, and compatible tone settings. Digital communication requires compatible DMR settings. UHF and VHF models cannot communicate directly across bands.
Does the HP602 come with encryption?
ARC4 basic digital encryption is included. AES 256-bit requires the optional SW00017 license, sold separately for each radio. Communicating radios must use compatible encryption settings and matching keys.
Is a charger included with the HP602?
Yes. The HP602 kit includes the CH10L30 desktop charger and required PS1014 power supply. These do not need to be purchased separately with the radio kit.
Is the HP602 waterproof?
The HP602 is rated IP67: dustproof and protected against temporary immersion in 1 meter of water for up to 30 minutes. Water-porting technology helps drain the speaker cavity.
More Resources
Warranty
The Hytera HP602 radio is covered by a 3-year manufacturer's warranty. Included accessories are covered by a separate 1-year manufacturer's warranty.
