Description

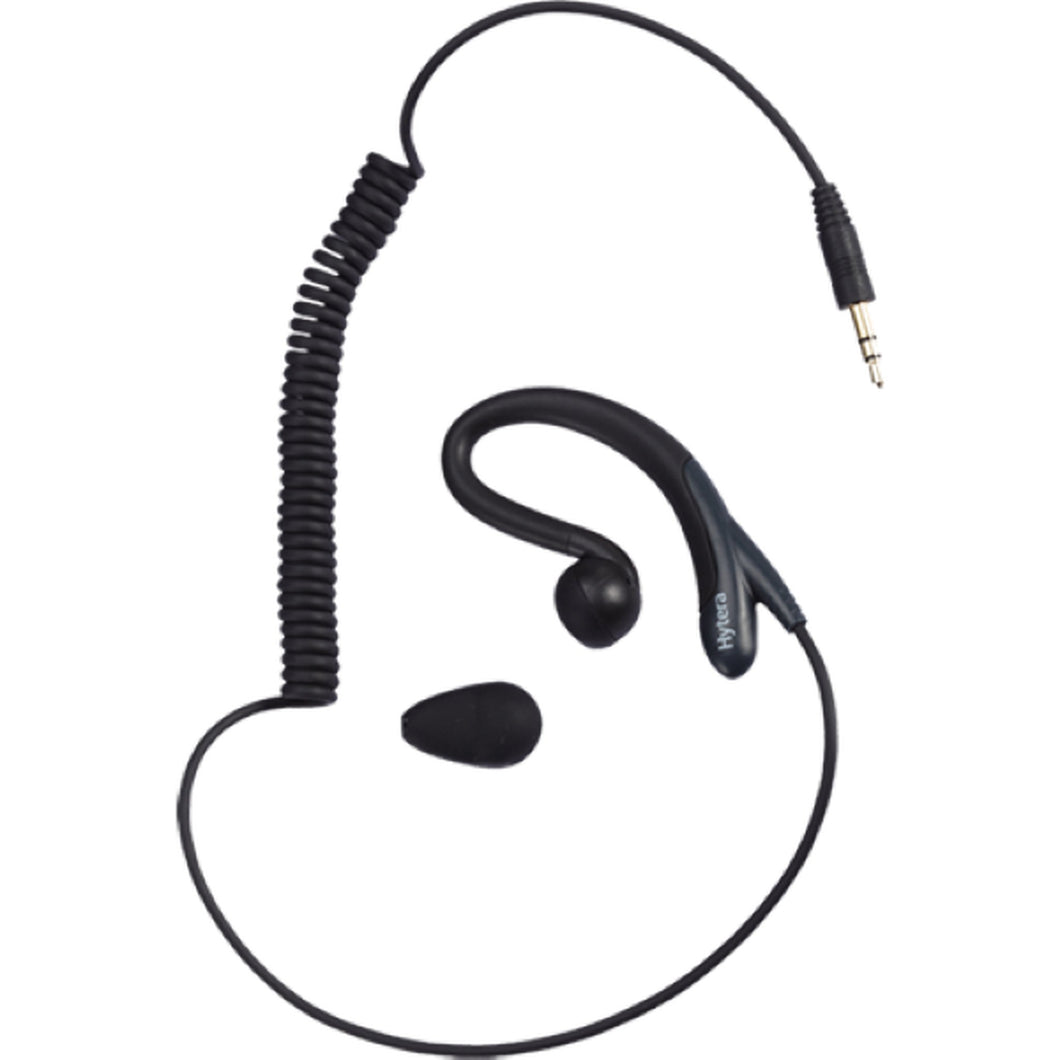

Receive-Only C-Style Swivel Earpiece (3.5mm Plug)
Lightweight, ergonomic receive-only C-hook audio earpiece with 3.5mm connector for Hytera PTT/MIC cables.
The Hytera EH-01 is an original equipment manufacturer (OEM) receive-only audio accessory designed for clear, discreet, and comfortable voice reception. Featuring a 3.5mm audio plug, this C-style earpiece connects directly into compatible Hytera PTT and microphone cables (such as the ACN-01 or ACM-01), allowing security personnel, event organizers, hospitality staff, and dispatch operators to monitor communications unobtrusively on DMR Association digital radio channels regulated under FCC Licensing guidelines.

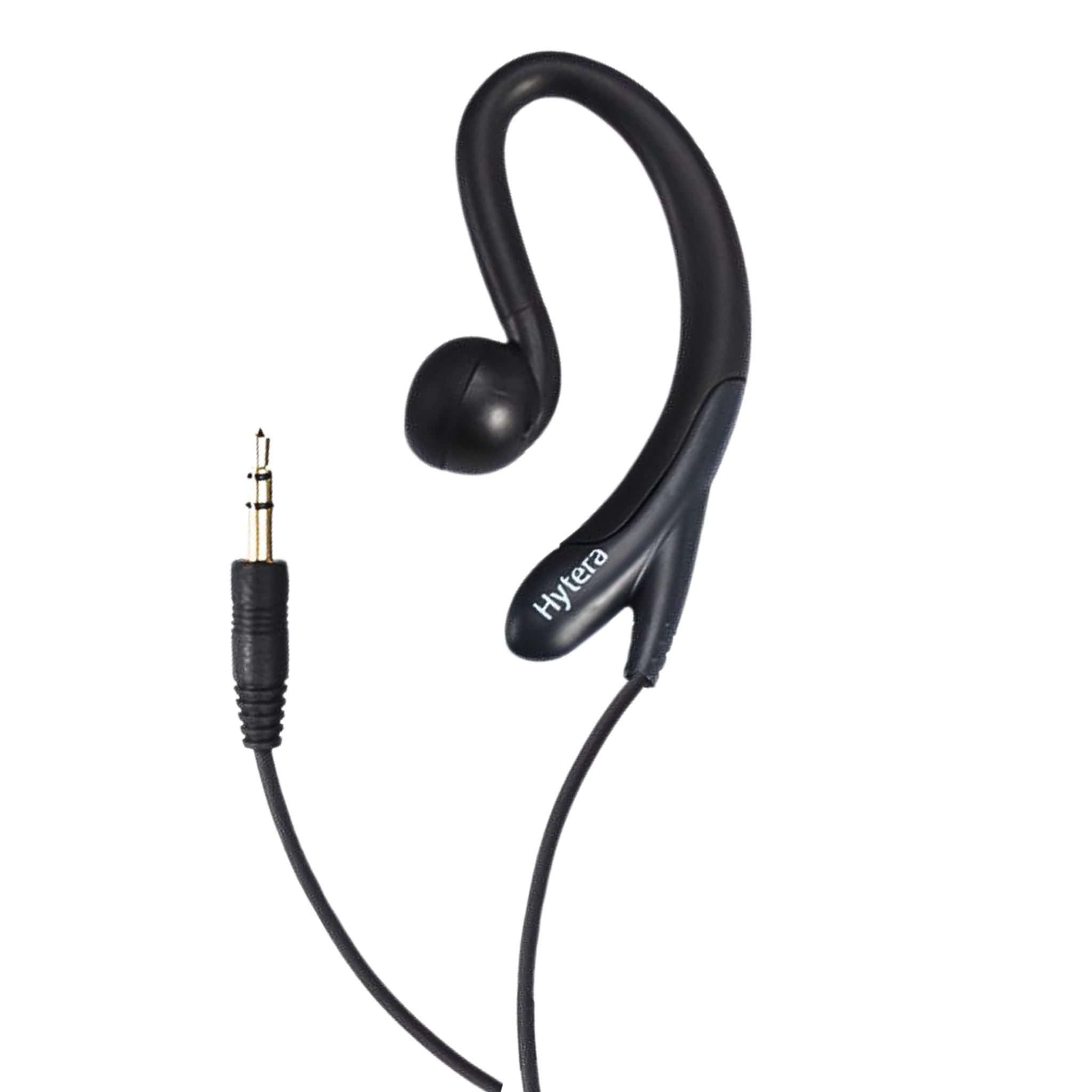

Engineered with an ergonomic C-hook that anchors comfortably behind the ear, the Hytera EH-01 features an outer-ear speaker placement that sits gently outside the ear canal to prevent fatigue during extended work shifts. A 360-degree swiveling joint allows instantaneous adjustment for left or right ear preference. Each Hytera EH-01 includes two interchangeable silicone rubber ear cushion tips (one short and one long), enabling operators to customize fit and acoustic isolation.
Key Features & Benefits
-
Behind-The-Ear C-Hook Design: Hooks securely over the ear to maintain stability during active movement while eliminating in-ear pressure.
-
3.5mm Audio Plug Connector: Plugs seamlessly into compatible Hytera in-line PTT/MIC controller cables.
-
Ambidextrous Swivel Joint: Earbud housing swivels 360 degrees to permit comfortable wearing on either the left or right ear.
-
Customizable Silicone Tips: Ships with two detachable silicone rubber earpiece cushions (short and long) for personalized fit.
-
Ultra-Lightweight Comfort: Weighs only 12 grams, making it virtually unnoticeable during long operational shifts.
-
10mW Rated Speaker Power: Delivers clear, intelligible audio reception even in busy commercial environments.
Specifications
| Attribute |
Details |
| Brand |
Hytera |
| Model/SKU |
EH-01 (EH01) |
| Product Type |
Receive-Only C-Style Swivel Earpiece |
| Connector Type |
3.5mm Auxiliary Audio Plug |
| Rated Speaker Power |
10 mW |
| Weight |
12 Grams (0.42 oz) |
| Earpiece Material |
Detachable Silicone Rubber Tips |
| Orientation |
Left or Right Ear (360-Degree Swivel Mount) |
| Requirement |
Requires Compatible Inline PTT/MIC Cable |
Compatibility
Compatible PTT/MIC Cables
Compatible Radios (via Compatible PTT/MIC Cable)
| Radio Series |
Compatible Models |
| BD Series |
BD302i, BD502i, BD552i, BD612i
|
| HP Series |
HP602, HP682, HP702, HP782
|
| PD Series |
PD362i, PD402i, PD482i, PD502i, PD562i, PD602i, PD662i, PD682i, PD702i, PD752i, PD782i, PD982i
|
| PDC Series |
PDC760 |
| X1 Series |
X1ei, X1pi
|
Recommended Accessories
Compatible PTT/MIC Cables
Compatible Handheld Radios
More Resources
Frequently Asked Questions
Does the Hytera EH-01 earpiece plug directly into two-way radios?
No, the Hytera EH-01 features a 3.5mm audio plug designed to connect into an inline PTT/MIC controller cable (such as the ACN-01, ACM-01, or ACN-05), which then connects to the radio.
Can the Hytera EH-01 be used to transmit voice calls?
No, the Hytera EH-01 is a receive-only (listen-only) earpiece. Transmitting requires using the microphone and PTT button on the connected inline cable.
Can the Hytera EH-01 be worn on either ear?
Yes, the earpiece housing features a 360-degree swivel mechanism that rotates effortlessly for wear on either the left or right ear.
What ear cushion sizes are included with the Hytera EH-01?
The Hytera EH-01 comes with two detachable silicone rubber ear cushion tips: one short tip and one long tip for customized acoustic seal and comfort.
Is the Hytera EH-01 earpiece comfortable for long shifts?
Yes, because the speaker sits outside the ear canal rather than jamming inside it, and the earpiece weighs only 12 grams, it significantly reduces ear soreness during 8 to 12 hour shifts.
Is the Hytera EH-01 an authentic Hytera OEM product?
Yes, the Hytera EH-01 is a genuine original equipment manufacturer accessory produced directly by Hytera Communications.
Warranty
1-year manufacturer's warranty.
