Hytera AN0153H09

VHF Stubby Antenna (147–160 MHz)

Compact and Durable Communication Solution

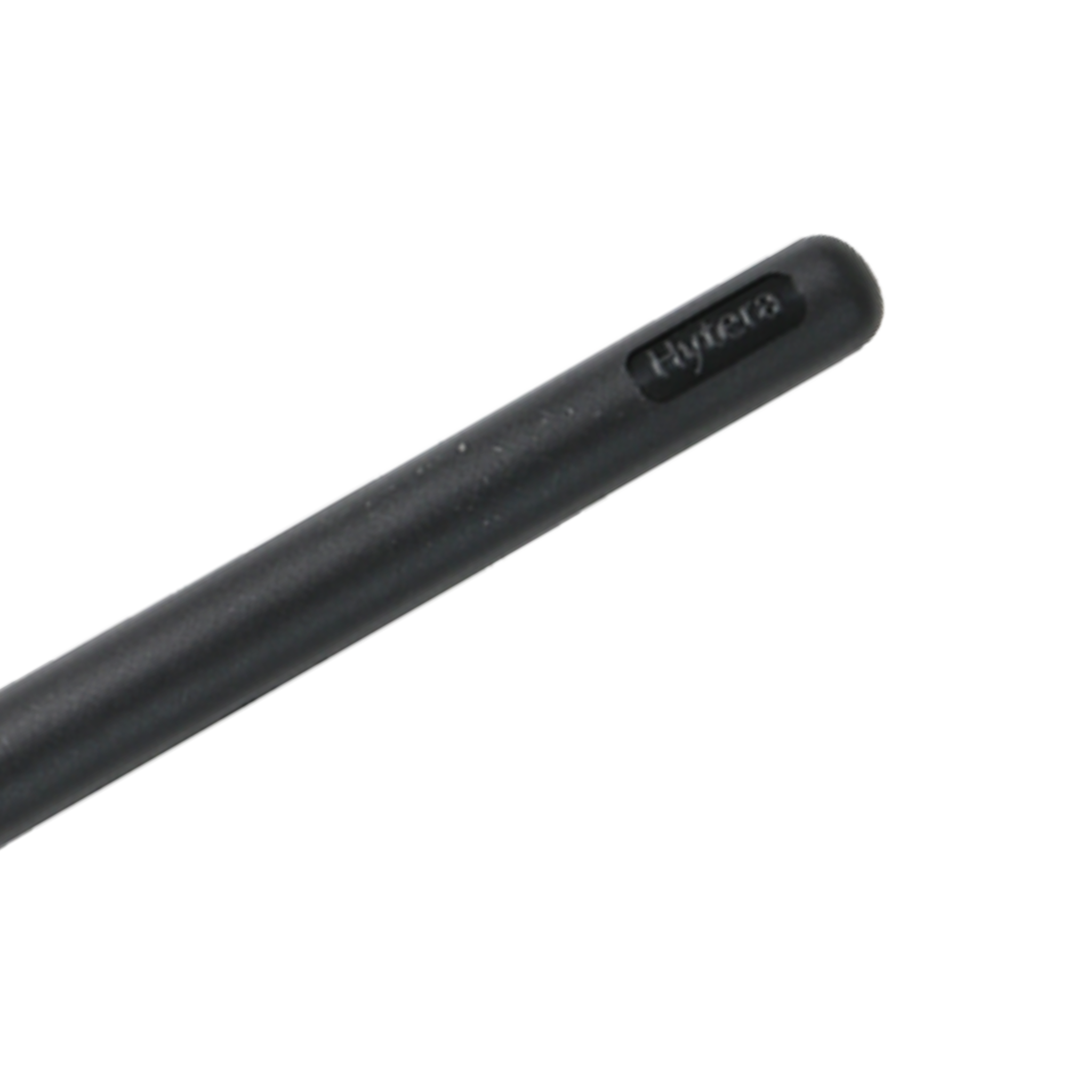

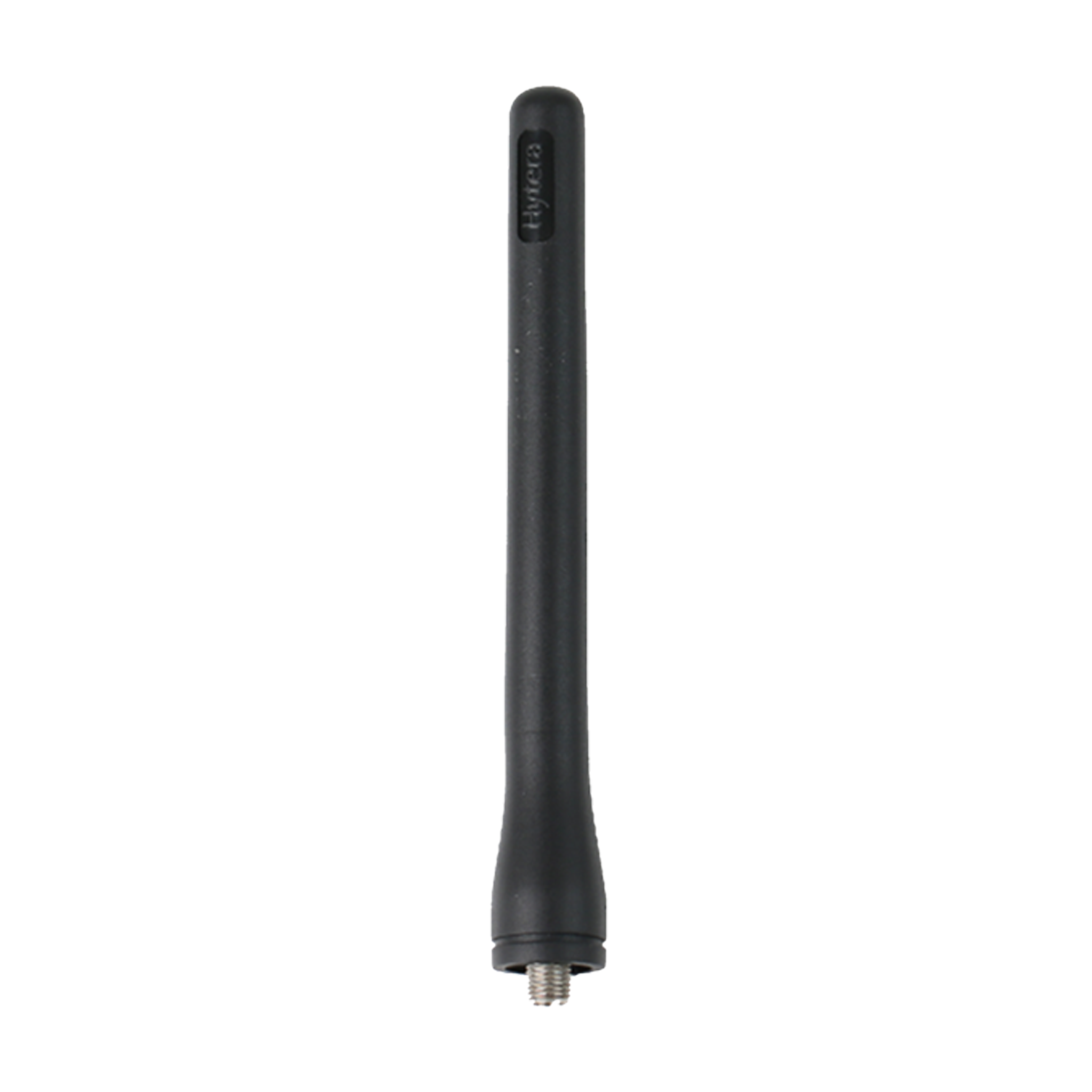

The Hytera AN0153H09 is a professional-grade VHF stubby antenna designed for reliability and ease of use in the field. Built with a robust helical brass core, this antenna is engineered for years of safe, consistent communication. Its flexible helical design provides the durability needed to withstand daily wear and tear while maintaining excellent signal integrity.

Standing at just 12 cm, this stubby antenna is specifically ideal for users who wear their radios on a belt. The shorter profile is non-obtrusive, preventing the antenna from snagging on clothing or equipment and significantly improving user comfort during long shifts. This model features a specialized design that supports both the 147-160 MHz VHF range and GPS 1575 MHz frequencies, all within a sleek, logo-free housing.

Key Features

Helical Brass Core: Provides superior conductivity and structural memory, ensuring the antenna maintains its shape and performance over time.
Low-Profile Stubby Design: At only 12 cm, it offers a compact alternative to standard whip antennas, perfect for belt-worn applications.
Integrated GPS Support: Supports 1575 MHz GPS frequencies, allowing for seamless location tracking and fleet management.

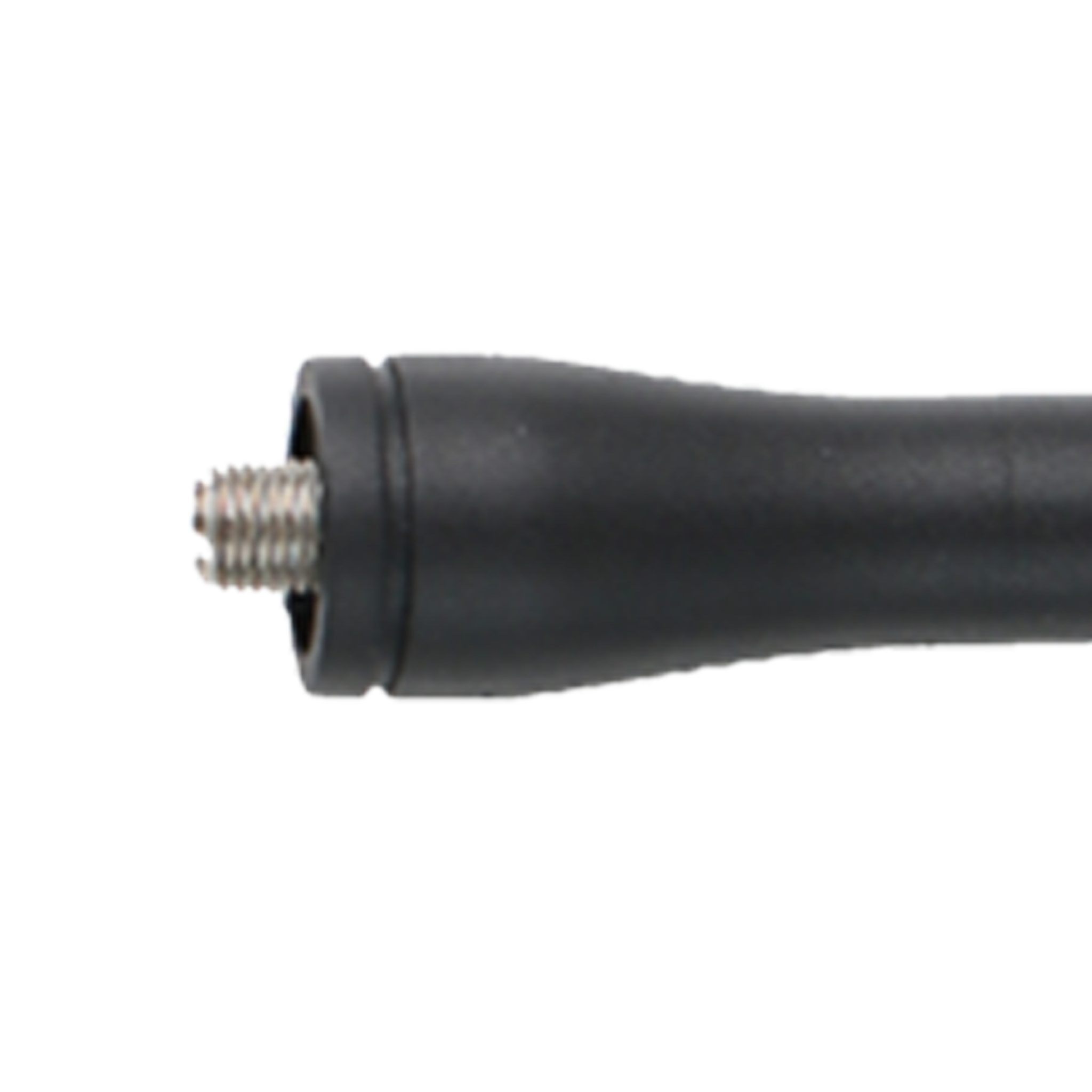

SMA Connector: Equipped with a standard SMA connector for a secure, threaded attachment to the radio.
Non-Obtrusive Form Factor: Reduces the risk of the antenna poking the wearer or catching on external objects in tight environments.
Professional Finish: Comes without a logo for a clean, uniform look on professional duty gear.

Compatibility

BD502i	BD552i	HP602	HP682
PD402i	PD482i	PD502i	PD562i
PD702i	PD752i	PD782i	PD982i

Specifications

Part Number: AN0153H09
Frequency Range: 147–160 MHz
GPS Frequency: 1575 MHz
Connector Type: SMA
Length: 12 cm
Core Material: Helical Brass
Manufacturer: Hytera

Benefits

Maximum Comfort: The short length ensures the radio remains comfortable at the hip, making it a favorite for security, hospitality, and warehouse staff.
Durable Construction: The helical design allows the antenna to flex and return to center, minimizing the chance of snapping under pressure.
Reliable Tracking: Combines voice and GPS capabilities into a single, compact unit to keep your team connected and located.

Warranty

1-year manufacturer's warranty.
