Description

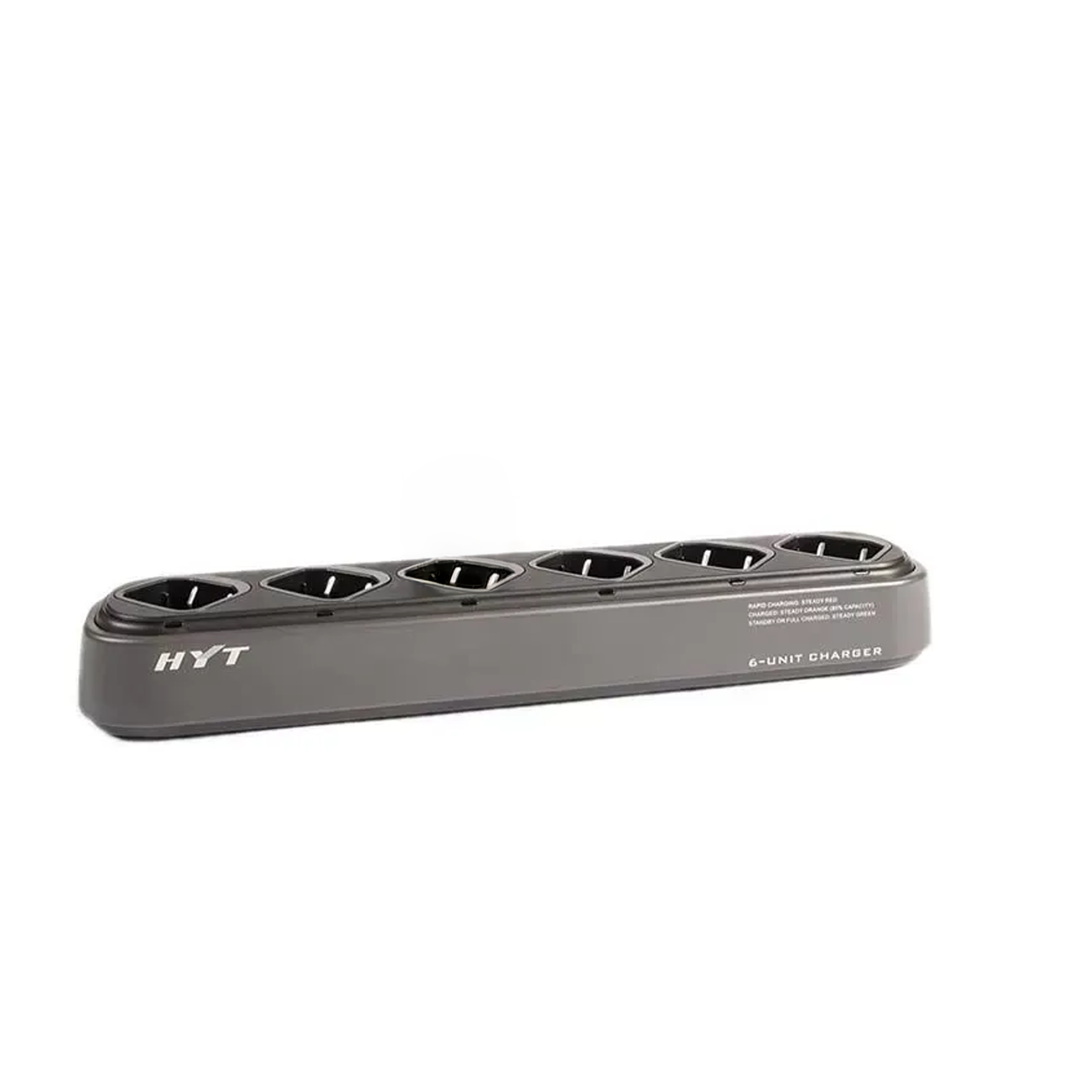

Hytera MCL19 Six-Unit Charging Station
Six-bay drop-in charger for simultaneous fleet charging of Hytera BD502i, BD552i, and BD612i portable radios and batteries.
The Hytera MCL19 is a commercial-grade six-bay drop-in charging station designed for fleet deployments of Hytera BD-series portable radios. Each bay charges a fully assembled radio or a standalone battery pack simultaneously, with a full charge cycle completing in approximately three hours. A single 12V/7A power supply runs all six bays from one wall outlet, reducing cable clutter and simplifying asset management at shift change.
The MCL19 is suited for logistics hubs, school campuses, hospitality venues, and any high-turnover environment where radio availability between shifts is critical. The chassis supports both desktop placement and wall-mount installation.
Key Features & Benefits
-
Six Simultaneous Bays: Charges up to six radios or battery packs at the same time in drop-in pockets.
-
Charges Radios or Bare Batteries: Each bay accepts a fully assembled radio or a standalone battery pack removed from the radio.
-
Single Outlet Operation: One 12V/7A power supply runs all six bays, replacing up to six individual chargers.
-
~3-Hour Full Charge: Fully refreshes compatible lithium-ion batteries in approximately three hours.
-
Desktop or Wall-Mount: Flexible chassis design supports both flat desktop placement and wall-mount installation.
-
Lithium-Ion Optimized: Intelligent circuitry in each bay maintains safe voltage levels for Li-Ion chemistry cells.
Specifications
| Attribute |
Details |
| Brand |
Hytera |
| Model / SKU |
MCL19 |
| Bay Capacity |
6 Drop-In Bays |
| Battery Chemistry |
Lithium-Ion |
| Power Supply |
12V / 7A External Adapter (included) |
| Charge Time |
Approximately 3 hours |
| Mounting |
Desktop or Wall Mount |
What's Included
| Description |
SKU/Model |
Status |
| Six-Bay Drop-In Charging Tray |
MCL19 |
Included |
| External AC/DC Power Supply |
12V/7A Adapter |
Included |
| Compatible Radio (BD502i / BD552i / BD612i) |
— |
Sold Separately |
| Wall Mounting Bracket Kit |
— |
Sold Separately |
Compatibility
Recommended Accessories
Batteries
Hytera BL1506 Lithium-Ion Battery (1500mAh) — Standard-capacity Li-Ion battery for the BD502i, BD552i, and BD612i.
Hytera BL2018 Lithium-Ion Battery (2000mAh) — High-capacity Li-Ion battery for extended shift use with the BD502i.
Single-Unit Charging
Hytera CH10L23 Single-Unit Charger — Individual drop-in charger for the BD502i, BD552i, and BD612i. Requires PS1014 power supply (sold separately).
Hytera PS1014 Power Supply — Required AC/DC power supply for the CH10L23 single-unit charger.
Frequently Asked Questions
Can I charge a standalone battery without the radio attached?
Yes. Each drop-in bay accepts either a fully assembled radio or a bare battery pack removed from the radio housing.
How long does a full charge take?
The MCL19 fully charges compatible lithium-ion batteries in approximately three hours using the included 12V/7A power supply.
Does this charger support NiMH batteries?
No. The MCL19 is optimized for lithium-ion chemistry only. Using NiMH batteries may cause charging errors or safety issues.
Can the MCL19 be wall-mounted?
Yes. The chassis supports both desktop placement and wall-mount installation. A wall mounting bracket kit is available separately.
Are the radios included?
No. The MCL19 is a charging station only. Compatible radios and spare batteries must be purchased separately.
Warranty
1-year manufacturer’s warranty.
