Description
50W High-Duty-Cycle VHF & UHF IDAS Digital Repeater Series
Commercial 2U rack-mount repeaters featuring 50W output, dual-channel expansion capacity, digital/analog mixed-mode, and scalable IDAS simulcast and trunking architecture.

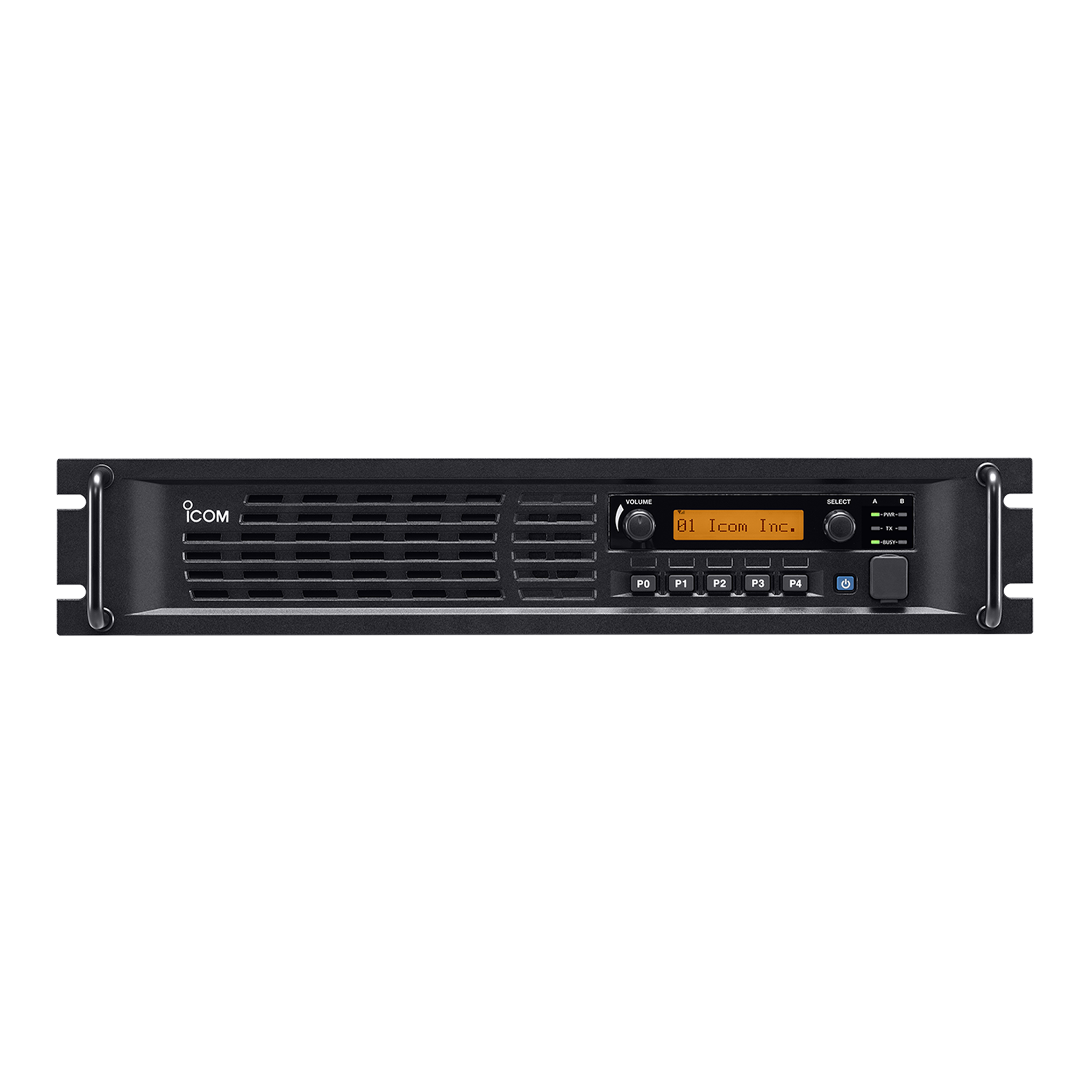

The Icom FR5300 (VHF: 136–174 MHz) and Icom FR6300 (UHF: 330–400, 400–470, 450–512 MHz) are second-generation IDAS digital repeaters built on an advanced CPU/FPGA hardware platform. Designed for commercial enterprise, public safety, utility, and industrial communications, these 19-inch 2U rack-mount mainframes deliver up to 50 Watts of RF output power at 50% duty cycle or 25 Watts continuous operation at 100% duty cycle.
Engineered with an internal secondary bay, both the FR5300 and FR6300 allow for the installation of an optional secondary RF channel module (URFR5300 or URFR6300), enabling two independent repeaters to operate simultaneously within a single chassis. The series features 32 memory channels with a 12-digit alphanumeric display, built-in 5-Tone and DTMF signaling, a rear D-Sub 25-pin accessory port, and high frequency stability (±0.1 ppm with GNSS). When equipped with the optional UCFR5300 network controller board, these repeaters seamlessly expand from single-site conventional operation into multi-site conventional networks, Type-D digital trunking, or IDAS digital simulcast systems operating under FCC Licensing standards.
Key Features & Benefits
-
Dual-Channel Expansion Bay: Internal slot accepts an optional secondary RF module to run two independent repeater channels from a single 2U rack space.
-
High-Power 50W Transmit Output: Delivers 50W output at 50% duty cycle or 25W continuous 100% duty cycle operation per channel module.
-
Digital & Analog Mixed Mode: Automatically receives and transmits both analog FM and IDAS NXDN digital signals on a single channel.
-
Scalable System Architecture: Supports multi-site conventional, Type-D digital trunking, and IDAS digital simulcast via optional UCFR5300 controller boards.
-
32 Memory Channels & Alphanumeric LCD: Front control panel features 32 programmable channels, 5 function keys, and a 12-digit display for base station monitoring.
-
Rear D-Sub 25-Pin Accessory Interface: Provides programmable I/O lines for connecting external controllers, phone interconnects, or remote console equipment.
Specifications
| Attribute |
FR5300 (VHF) |
FR6300 (UHF) |
| Brand |
Icom |
Icom |
| Frequency Coverage |
136–174 MHz |
330–400 / 400–470 / 450–512 MHz |
| RF Output Power |
50W (50% Duty) / 25W (100% Duty) |
50W (50% Duty) / 25W (100% Duty) |
| Channel Capacity |
32 Channels / 1 Zone |
32 Channels / 1 Zone |
| Channel Spacing |
6.25 / 12.5 / 25 kHz |
6.25 / 12.5 / 25 kHz |
| Frequency Stability |
±1.0 ppm (±0.1 ppm with GNSS) |
±1.0 ppm (±0.1 ppm with GNSS) |
| Power Supply Requirement |
13.6V DC (15.0A Max Tx) |
13.6V DC (15.0A Max Tx) |
| Chassis Dimensions (WxHxD) |
19.0 x 3.5 x 10.2 in (2U Rack Mount) |
19.0 x 3.5 x 10.2 in (2U Rack Mount) |
| Weight |
12.7 lb (5.78 kg) |
12.7 lb (5.78 kg) |
| Environmental Standards |
MIL-STD-810-G |
MIL-STD-810-G |
Product Variants
| Variant SKU |
Band / Frequency Range |
RF Output Power |
Primary Application |
| FR5300 21 USA |
VHF: 136–174 MHz |
50 Watts |
VHF Commercial & Public Safety Systems |
| FR6300 41 USA |
UHF: 400–470 MHz |
50 Watts |
UHF Commercial & Industrial Trunking |
| FR6300 35 USA |
UHF: 450–512 MHz |
50 Watts |
UHF Public Safety & High-Band Commercial |
Compatibility
Compatible Icom Expansion Boards, Modules & Accessories
What’s Included
| Description |
SKU/Model |
Status |
| Icom Repeater Mainframe Unit |
FR5300 / FR6300 |
Included |
| DC Power Cable Assembly |
OPC2344 / DC Cable |
Included |
| Rack Mount Handles & Hardware Kit |
Handle Kit |
Included |
Recommended Accessories
System Controllers & Channel Expansion
Microphones & Audio Output
More Resources
Frequently Asked Questions
Can the FR5300 and FR6300 run two channels in a single rack chassis?
Yes. Both mainframes feature an open internal bay that accepts a secondary channel expansion module (URFR5300 or URFR6300), allowing two independent repeaters to operate inside one 2U rack enclosure.
What is the maximum duty cycle when operating at 50 Watts?
At 50 Watts RF output power, the repeater operates at a 50% duty cycle. For 100% continuous duty cycle operation, the RF output power is configured to 25 Watts.
Do these repeaters support analog FM and digital IDAS simultaneously?
Yes. The FR5300 and FR6300 support digital/analog mixed-mode operation, automatically detecting and transmitting incoming analog FM or IDAS digital signals on the same channel.
How do I connect the FR5300 or FR6300 to an IP network?
Installing the optional UCFR5300 network controller board connects the repeater to IP networks for multi-site conventional, Type-D digital trunking, or digital simulcast operations.
Are the FR5300 and FR6300 authentic Icom products?
Yes, the FR5300 and FR6300 are authentic original equipment manufacturer digital repeaters produced directly by Icom America.
Warranty
2-year manufacturer’s replacement warranty.
