Dual-Channel Expansion Modules for IC-FR5300 & IC-FR6300 Repeaters
High-duty-cycle VHF and UHF digital/analog channel modules enabling two independent channels inside a single 2U repeater chassis.

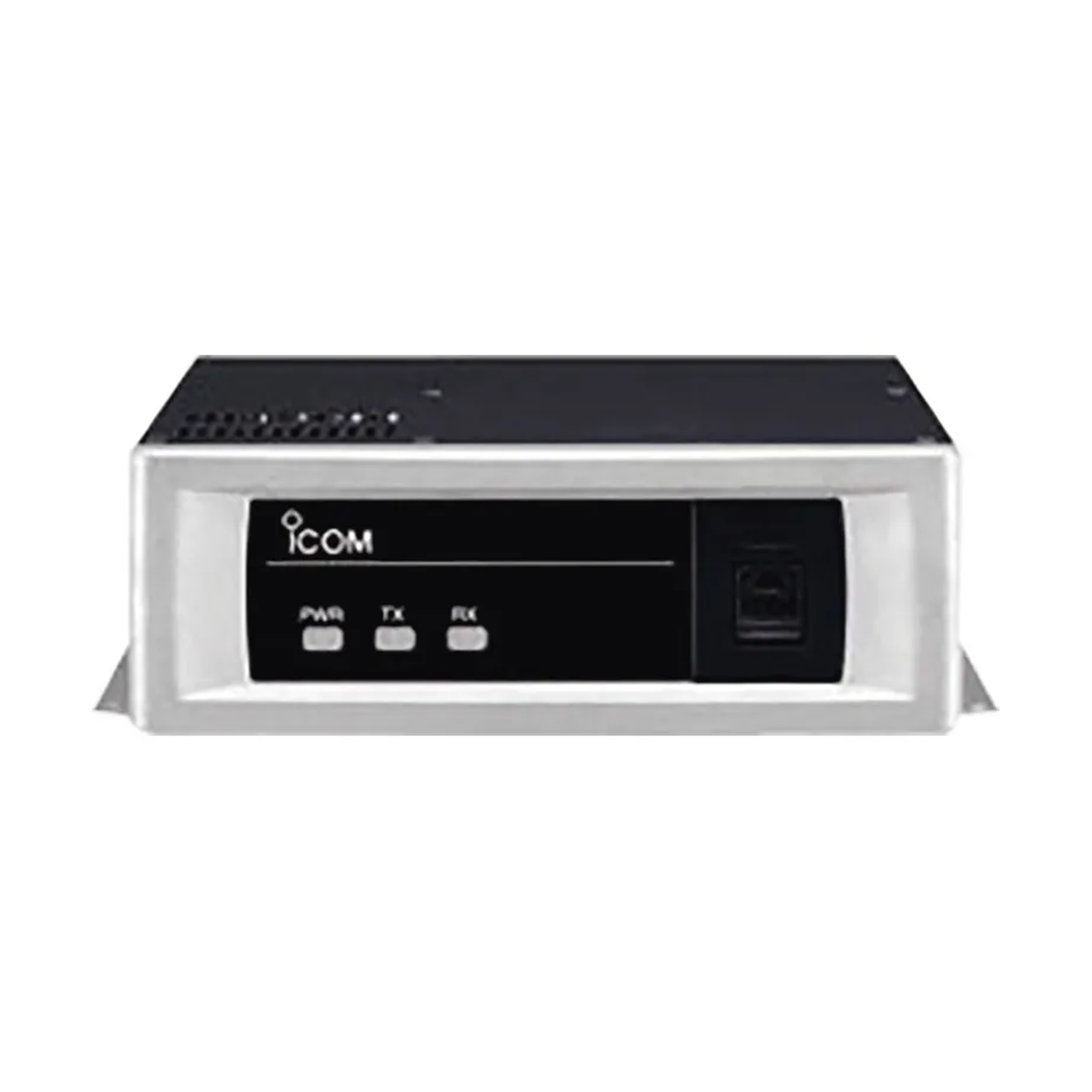

The Icom URFR5300 (VHF: 136–174 MHz) and Icom URFR6300 (UHF: 330–400, 400–470, 450–512, 450–520 MHz) are optional RF channel expansion modules designed specifically for Icom IC-FR5300 and IC-FR6300 series IDAS digital repeaters. Installing a secondary URFR5300 or URFR6300 module into the internal expansion bay doubles system channel capacity, allowing two independent RF repeaters to operate side-by-side within a single 19-inch 2U rack-mount housing.
Engineered on Icom's advanced CPU/FPGA hardware platform, each channel module delivers up to 50 Watts of RF output power at 50% duty cycle or 25 Watts continuous at 100% duty cycle. Both modules support digital/analog mixed-mode operation across 32 memory channels, decoding up to 16 CTCSS tones, DTCS codes, or digital Radio Access Numbers (RAN) per channel. When combined with the optional UC-FR5300 network controller board, the Icom URFR5300 and URFR6300 seamlessly integrate into multi-site conventional networks, Type-D digital trunking systems, or high-stability IDAS digital simulcast configurations. Supported under FCC Licensing standards and DMR Association protocols, these modules provide a compact, cost-effective upgrade path for expanding commercial and public safety base stations.
Key Features & Benefits
-
Two Channels in One Chassis: Fits into the secondary expansion slot of IC-FR5300/FR6300 chassis to run two independent channels from one 2U rack space.
-
High-Power 50W Output: Delivers 50W output power at 50% duty cycle or 25W continuous full-duty operation.
-
Digital & Analog Mixed Mode: Automatically receives and transmits both analog FM and IDAS NXDN digital signals on a single channel.
-
32 Memory Channels: Features 32 programmable channels with front-panel LED indicators showing individual channel activity.
-
Multi-Tone Group Decoding: Decodes up to 16 CTCSS, DTCS, or digital RAN codes per channel for flexible downlink signaling.
-
Scalable System Architecture: Supports multi-site conventional, Type-D trunking, and digital simulcast via optional UC-FR5300 controller boards.
Specifications
| Attribute |
URFR5300 (VHF) |
URFR6300 (UHF) |
| Brand |
Icom |
Icom |
| Model/SKU |
URFR5300 61 USA |
URFR6300 75 / 81 USA |
| Frequency Coverage |
136–174 MHz |
330–400, 400–470, 450–512, 450–520 MHz |
| Channel Capacity |
32 Channels |
32 Channels |
| RF Output Power |
50W (50% Duty) / 25W (100% Duty) |
50W (50% Duty) / 25W (100% Duty) |
| Channel Spacing |
6.25 / 12.5 / 20 / 25 kHz |
6.25 / 12.5 / 20 / 25 kHz |
| Frequency Stability |
±1.0 ppm (±0.1 ppm with GNSS) |
±1.0 ppm (±0.1 ppm with GNSS) |
| Dimensions (WxHxD) |
6.9 x 2.4 x 7.6 in (176 x 60 x 194 mm) |
6.9 x 2.4 x 7.6 in (176 x 60 x 194 mm) |
| Weight |
4.6 lb (2.1 kg) |
4.6 lb (2.1 kg) |
Compatibility
Compatible Icom Repeater Mainframes
What’s Included
| Description |
SKU/Model |
Status |
| Icom Repeater Channel Module |
URFR5300 / URFR6300 |
Included |
| Module Internal Mounting Hardware |
Internal Hardware |
Included |
Recommended Accessories
System Controllers & Software
Microphones & External Speakers
More Resources
Frequently Asked Questions
Can I install two URFR5300 or URFR6300 modules in a single IC-FR5300/FR6300 chassis?
Yes, the IC-FR5300 and IC-FR6300 chassis are designed with an internal expansion bay to hold two independent RF modules, allowing dual-channel operation in 2U of rack space.
Can I mix VHF (URFR5300) and UHF (URFR6300) modules in the same chassis?
Yes, the chassis supports two RF modules operating independently on separate bands if required.
What is the maximum duty cycle when operating at 50 Watts?
At 50 Watts output power, the channel module operates at a 50% duty cycle. For continuous 100% duty cycle operation, the RF output power should be set to 25 Watts.
Do these modules support digital simulcast?
Yes, when paired with the UC-FR5300 network board, CF-FR5300SC simulcast card, and UX-241 GNSS antenna, the modules support high-stability IDAS digital simulcast.
Is the URFR5300 / URFR6300 an authentic Icom product?
Yes, the URFR5300 and URFR6300 are authentic original equipment manufacturer channel modules produced directly by Icom.
Warranty
2-year manufacturer’s replacement warranty.
