Description
High-Visibility IDAS Digital Mobile Two-Way Radio
Exceptional display visibility, high RF power output, and versatile dual-mode performance.

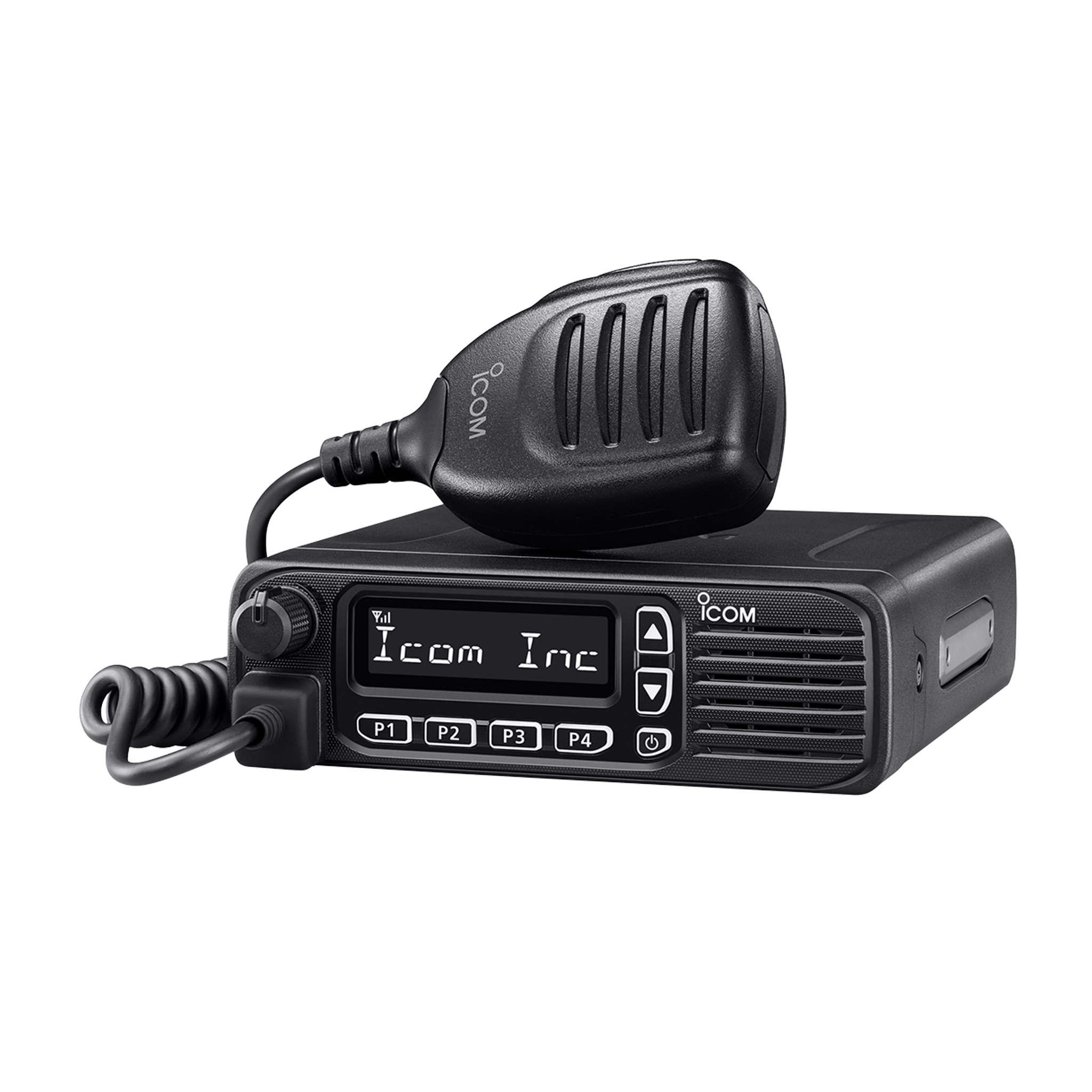

The Icom F5130D / F6130D Series is a single-body commercial mobile two-way radio built on Icom's latest entry-level IDAS digital platform. This high-performance Icom F5130D / F6130D Series IDAS Mobile Two-Way Radio pairs a high-contrast, wide-viewing-angle black background LCD with powerful RF output to deliver dependable voice coverage across vast operating territories. Deploying the Icom F5130D / F6130D Series gives vehicle fleets and dispatcher stations a clear, readable interface that remains legible in direct sunlight or dark cab environments.
Engineered for commercial delivery fleets, public works departments, agriculture operators, and industrial facilities, this radio system bridges the gap between legacy analog systems and modern digital networks. Operating at 50W on VHF (F5130D) and 45W on UHF (F6130D), the transceiver supports 128 channels across 8 customizable zones. Integrated health and safety protections—including Lone Worker prompts and forced transmission capabilities—ensure field technicians remain safe and monitored during solitary assignments.
Key Features & Benefits
-

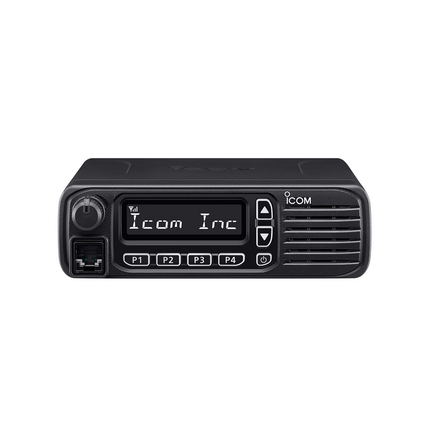

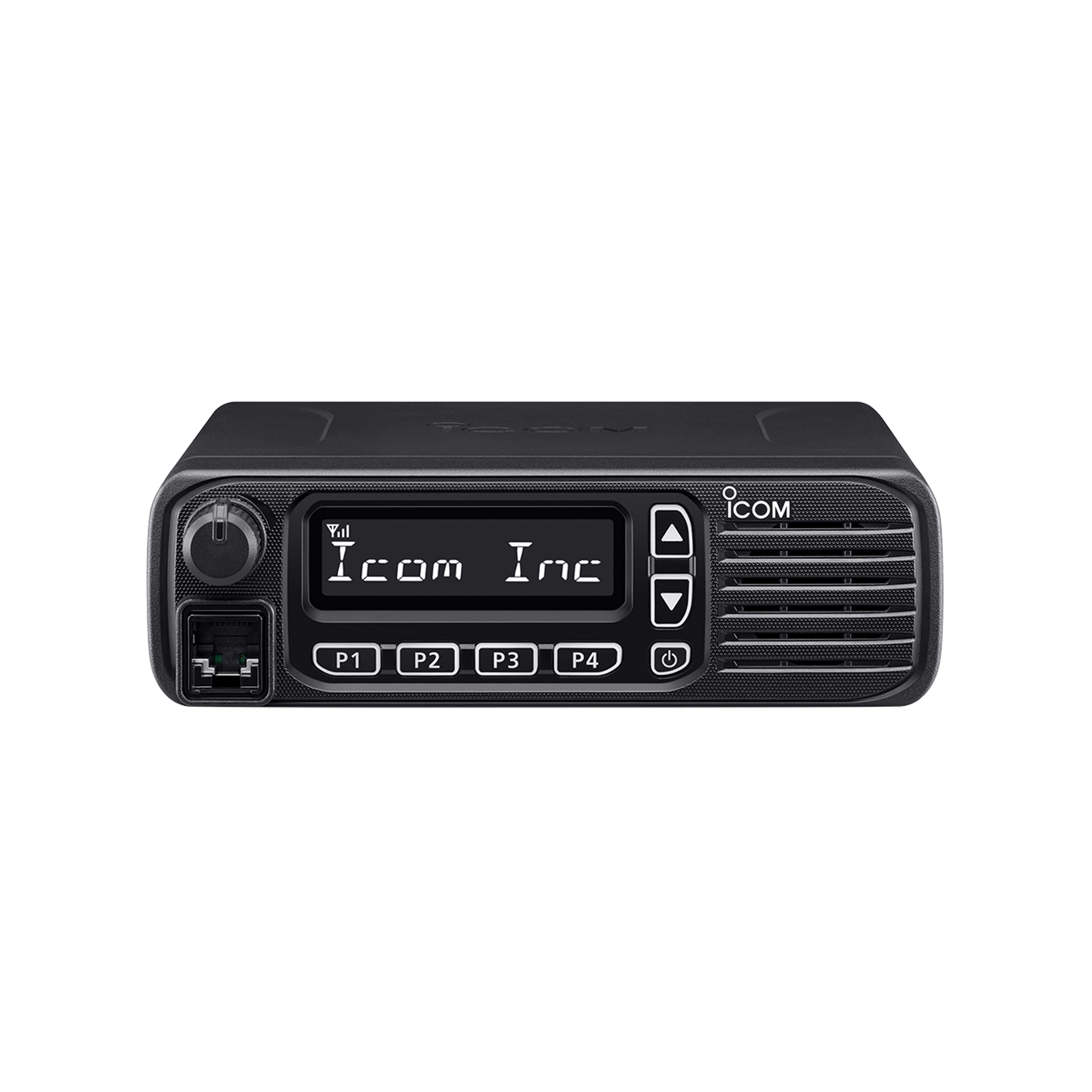

High-Contrast Black Background LCD: Features an 8-character alphanumeric display with a wide viewing angle for superior visibility in all vehicle cab lighting conditions.
-
Dual-Mode NXDN Digital & Analog: Supports analog FM, IDAS NXDN conventional, multi-site conventional over IP, simulcast, and Type-D single-site trunking mode for flexible fleet migration.
-
High-Power Transmit Output: Delivers up to 50 Watts on VHF (F5130D) and 45 Watts on UHF (F6130D) to penetrate structural obstacles and maintain long-range signal strength.
-
Front-Mounted 4W Loud Speaker: Equipped with a forward-firing 4-Watt speaker module to project clear, intelligible voice audio in high-noise work environments.
-
Worker Safety Protections: Features Lone Worker alerts and forced transmission capability to help safety officers verify the status of solitary operators.
-
MIL-STD 810 G Ruggedness: Built with a heavy-duty chassis tested to withstand severe shock, vibration, temperature swings, and solar radiation.
Specifications
| Attribute |
Details |
| Brand |
Icom |
| Series |
F5130D / F6130D Series |
| Signaling Mode |
IDAS Digital (NXDN) & Analog FM |
| Number of Channels |
128 Channels (8 Zones) |
| Output Power |
50W (VHF) / 45W (UHF) |
| Front Speaker Output |
4W (typical) |
| Display |
8-Character High-Contrast LCD |
| Environmental Rating |
MIL-STD 810 G |
Model Variations
| Model |
Key Difference |
Compatibility |
| F5130D |
VHF Band (136–174 MHz), 50W Output, 128 Channels |
Icom Mobile Series |
| F6130D |
UHF Band (400–520 MHz), 45W Output, 128 Channels |
Icom Mobile Series |
What's Included
| Description |
SKU/Model |
Status |
| Mobile Transceiver Unit |
F5130D / F6130D |
Included |
| Hand Microphone |
HM-152 |
Included |
| DC Power Cable (20A, 3m) |
OPC-2478 |
Included |
| Mobile Mounting Bracket Kit |
- |
Included |
| Microphone Hanger |
- |
Included |
Recommended Accessories
Microphones & Audio
Cables & Hardware
System Integration
More Resources
Frequently Asked Questions
What is the primary difference between the F5130D and F6130D models?
The F5130D operates on VHF commercial frequencies (136–174 MHz) at up to 50 Watts, whereas the F6130D operates on UHF wideband frequencies (400–520 MHz) at up to 45 Watts.
Can the F5130D / F6130D operate on analog radio channels?
Yes, the series features dual-mode operation, allowing you to run digital IDAS (NXDN) channels alongside standard analog FM systems with CTCSS, DTCS, 2-Tone, 5-Tone, and MDC 1200 signaling.
What display technology is used on the front panel?
The radio utilizes a high-contrast, wide-viewing-angle black background LCD that displays 8-character alphanumeric channel names, zone information, and signal strength indicators clearly in bright sunlight or dark cab environments.
Does this mobile radio support external GPS tracking?
Yes, when connected to an external GPS receiver via an optional ACC cable (OPC-1939 or OPC-2078), the radio can display GPS positioning data and perform Auto-Timed GPS transmissions over the air.
What health and safety functions are included for solitary operators?
The radio includes a built-in Lone Worker function that prompts the operator after a period of inactivity. If unacknowledged, it can forcibly initiate a emergency transmission so dispatch can listen to ambient cab audio.
How many channels and scan lists can be configured?
The F5130D / F6130D accommodates up to 128 channels organized across 8 zones and supports up to 17 programmable scan lists, including Priority Scan and Voting Scan modes.
Warranty
2-year manufacturer's warranty and 1-year for accessories.
