Description

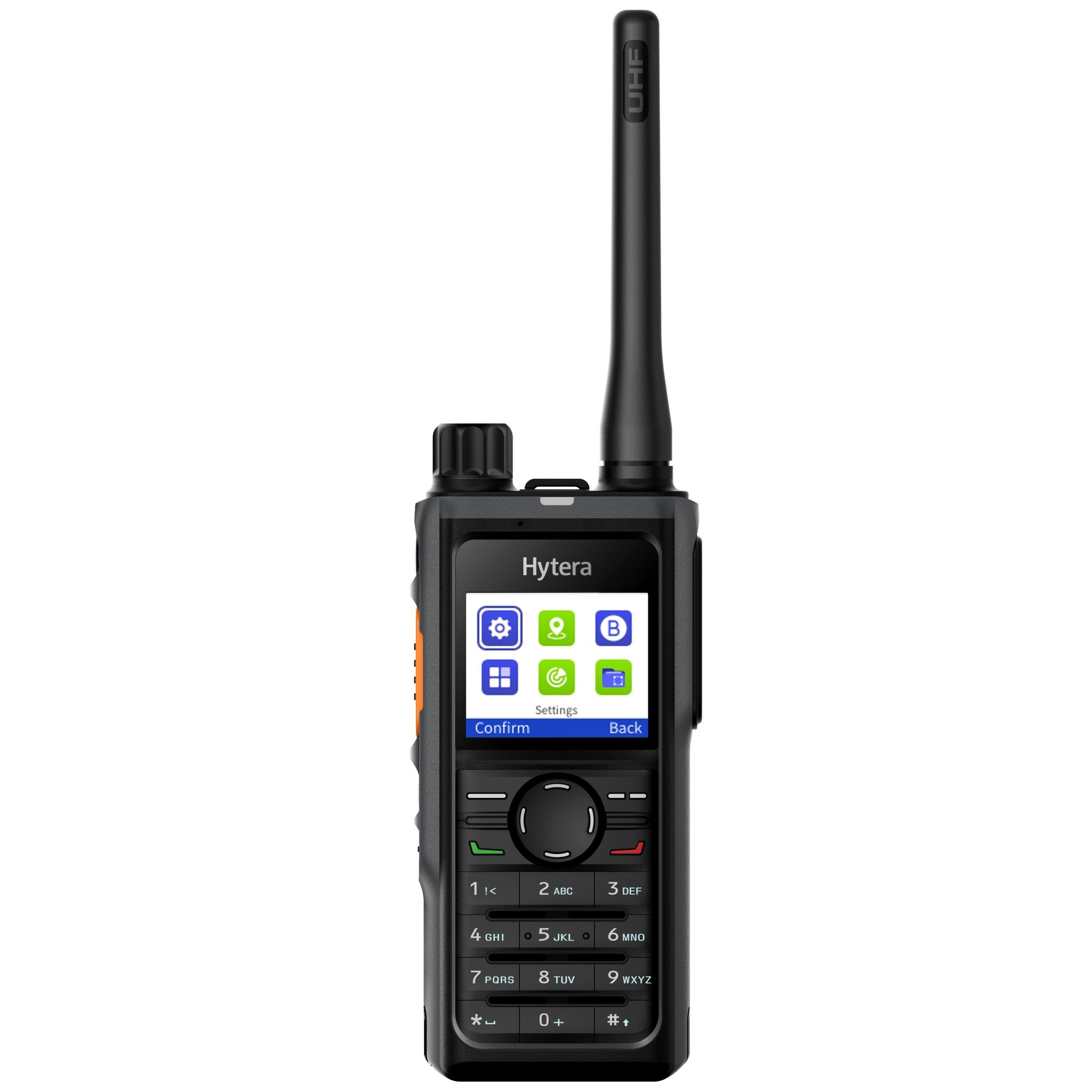

Hytera HP682 Digital Portable Two-Way Radio
The Hytera HP682 is a state-of-the-art H-Series DMR portable two-way radio designed for maximum efficiency and ease of use. The HP682 takes all the rugged, high-performing features of the HP600 series and upgrades the user experience with a 1.8" LCD color display and a full navigation keypad, allowing users to easily view contact lists, read text messages, check radio status, and quickly switch between features using the intuitive Interface Switcher.
Built for professionals in customer service, event management, and severe working environments, the HP682 combines extended coverage, industry-leading audio, and a 20-hour battery life into a compact device that weighs less than 10 ounces.
Key Features & Benefits
-
Intuitive Color Display & Full Keypad: The 1.8" LCD screen features a simplified six-grid layout for quick visual recognition of apps and notifications. The full, wear-resistant keypad enables manual dialing and easy menu navigation.
-
Industry-Leading Audio Quality: Large forward-facing speaker, water-porting technology, and AI-based voice enhancement suppress background noise by up to 30dB.
-
Dual Mode — Analog & Digital: Operates in both DMR digital and analog FM modes, enabling seamless migration from legacy analog fleets while delivering the full benefits of digital communications.
-
Text Messaging & Dynamic Calls: Supports sending and receiving private or group text messages. Users can dial private, group, or PSTN/PABX calls directly from the keypad.
-
20-Hour Battery Life: Powered by a thin, lightweight 2000 mAh Lithium Polymer battery providing a full shift of high-power operation on a 5/5/90 duty cycle.
-
Enhanced Worker Safety: Includes a programmable Emergency button, Lone Worker, Man Down, and priority interrupt for critical communications.
-
GPS & Bluetooth (Optional Models): Select GPS & Bluetooth variants add real-time location tracking and wireless accessory connectivity.
Extreme Ruggedness & Security
The Hytera HP682 is fully compliant with IP67 standards (dustproof and submersible in 1 meter of water) and MIL-STD-810G standards (capable of surviving a 2-meter drop).
The HP682 comes standard with basic ARC4 digital encryption included right out of the box. For operations requiring maximum security, the radio can be upgraded with the Hytera SW00017 AES256 Advanced Digital Encryption License to equip your fleet with robust AES 256-bit encryption.
Target Applications
| Industry |
Use Case |
| Customer Service & Retail |
Staff coordination, floor management, and rapid response to customer needs |
| Event Management |
Venue-wide crew coordination, security dispatch, and logistics management |
| Hospitality |
Hotel and resort staff communications across large properties |
| Security & Public Safety |
Patrol coordination, emergency response, and encrypted communications |
| Construction & Utilities |
Job site coordination in harsh outdoor environments |
| Government & Municipal |
Fleet communications requiring rugged, encrypted, and reliable radios |
General Specifications
| Attribute |
Details |
| Model |
Hytera HP682 |
| Frequency Range |
UHF: 400–527 MHz; VHF: 136–174 MHz (depending on model) |
| Channel Capacity |
1,024 channels (512 analog, 512 digital) |
| Zone Capacity |
64 zones with 256 channels per zone |
| Channel Spacing |
12.5 / 20 / 25 kHz |
| Rated Operating Voltage |
7.7V |
| Battery |
2000 mAh Li-Ion Polymer (BP2002) |
| Battery Life (5/5/90 Duty Cycle) |
16 hours with GPS on; 20 hours with GPS disabled |
| Weight |
9.88 oz (280g) |
| Dimensions (H × W × D, Without Antenna) |
122 × 55 × 31.5 mm |
| Frequency Stability |
±0.5 ppm |
| Antenna Impedance |
50Ω |
| Display |
1.8" LCD; 160 × 128 pixels; 65,536 colors; 6 rows |
| Keypad |
Full DTMF navigation keypad |
| Bluetooth (Equipped Models Only) |
BT 5.0 BLE + EDR |
| Encryption (Standard) |
ARC4 digital encryption (included) |
| Encryption (Optional) |
AES 256-bit (SW00017 license, sold separately) |
Transmitter Specifications
| Attribute |
Details |
| RF Power Output |
VHF: 5W high / 1W low; UHF: 4W high / 1W low |
| FM Modulation |
11K0F3E at 12.5 kHz; 14K0F3E at 20 kHz; 16K0F3E at 25 kHz |
| 4FSK Digital Modulation |
12.5 kHz data only: 7K60FXD; 12.5 kHz data and voice: 7K60FXW |
| Conducted/Radiated Emission |
-36 dBm below 1 GHz; -30 dBm above 1 GHz |
| Modulation Limiting |
±2.5 kHz at 12.5 kHz; ±4.0 kHz at 20 kHz; ±5.0 kHz at 25 kHz |
| FM Hum and Noise |
40 dB at 12.5 kHz; 43 dB at 20 kHz; 45 dB at 25 kHz |
| Adjacent Channel Power |
60 dB at 12.5 kHz; 70 dB at 25 kHz |
| Audio Response |
+1 to -3 dB |
| Audio Distortion |
≤3% |
| Digital Vocoder Type |
AMBE+2™ |
Receiver Specifications
| Attribute |
Details |
| Digital Sensitivity |
0.18 μV (5% BER) |
| Analog Sensitivity |
0.16 μV typical (12 dB SINAD); 0.18 μV (12 dB SINAD) |
| Adjacent Selectivity |
TIA-603 and ETSI: 60 dB at 12.5 kHz; 70 dB at 20/25 kHz |
| Spurious Response Rejection |
TIA-603 and ETSI: 70 dB at 12.5/20/25 kHz |
| Intermodulation |
TIA-603: 70 dB at 12.5/20/25 kHz; ETSI: 65 dB at 12.5/20/25 kHz |
| Hum and Noise |
40 dB at 12.5 kHz; 43 dB at 20 kHz; 45 dB at 25 kHz |
| Rated Audio Power Output |
0.5W |
| Rated Audio Distortion |
≤3% |
| Audio Response |
+1 to -3 dB |
| Conducted Spurious Emission |
<-57 dBm |
Environmental Specifications
| Attribute |
Details |
| Operating Temperature |
-20°C to +60°C |
| Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Electrostatic Discharge (ESD) |
IEC 61000-4-2, Level 4: ±8 kV contact; ±15 kV air |
| Dust and Water Ingress |
IP67 |
| Humidity |
Per MIL-STD-810 C/D/E/F/G |
| Shock and Vibration |
Per MIL-STD-810 C/D/E/F/G |
| Drop Resistance |
2 meters |
GPS Specifications (Equipped Models Only)
| Attribute |
Details |
| Time to First Fix — Cold Start |
<60 seconds (typical) |
| Time to First Fix — Hot Start |
<10 seconds (typical) |
| Horizontal Accuracy |
<5 meters |
GPS specifications are based on five visible satellites. GPS and Bluetooth features apply only to equipped variants. Specification source: Hytera HP6 series datasheet, Hytera_HP6_DS-A (2021).
Model Variations
Please select your required model from the dropdown menu before adding to cart:
Standard Models
-
HP682-Um: Standard UHF Model
-
HP682-V1: Standard VHF Model
GPS & Bluetooth Models
-
HP682-G-BT-Um: UHF Radio with GPS & Bluetooth
-
HP682-G-BT-V1: VHF Radio with GPS & Bluetooth
What’s Included
| Description |
SKU/Model |
Status |
| HP682 Portable Two-Way Radio |
HP682 (variant selected) |
Included |
| Li-Polymer Battery (2000 mAh) |
BP2002 |
Included |
| Standard VHF Antenna (147–160 MHz) |
AN0153H07 |
Included with VHF models only |
| Standard UHF Whip Antenna (400–470 MHz) |
AN0435W09 |
Included with UHF models only |
| Belt Clip |
BC48 |
Included |
| Hytera Customer Programming Software (CPS) |
H-Series CPS |
Included |
| Desktop Charger + Power Supply |
CH10L30 + PS1014
|
Included |
| AES256 Encryption License |
SW00017 |
Sold Separately |
The kit includes the antenna matching the selected radio band, not both antennas. The antenna frequency ranges above are narrower than the radio’s tuning range; match the antenna to your operating frequencies.
Recommended Accessories
Programming
Encryption
Earpieces
Speaker Mics
Bluetooth
For Bluetooth-equipped HP682-G-BT-Um and HP682-G-BT-V1 models only. These accessories are sold separately and are not included with the radio kit.
Batteries
Chargers
Antennas
Select an antenna matching the radio band and your operating frequencies. All antennas below use an SMA connector. AN0153H07 is the standard included VHF antenna; AN0435W09 is the standard included UHF antenna. Other antenna options are sold separately. GPS antenna specifications apply only when used with a GPS-equipped radio.
Carry Accessories
Related Radios
Frequently Asked Questions
Does the Hytera HP682 need programming, and is the software included?
Yes. The HP682 needs to be configured to match your radio network’s frequencies and analog or digital settings. Use the HP682-compatible H-Series version of Hytera CPS programming software, included with the purchase of an HP682 from Atlantic Radio. To program it yourself, you also need a Windows PC and the Hytera PC152 USB programming cable, sold separately. Software inclusion does not include the programming cable or programming service.
What is the difference between the Hytera HP602 and the HP682?

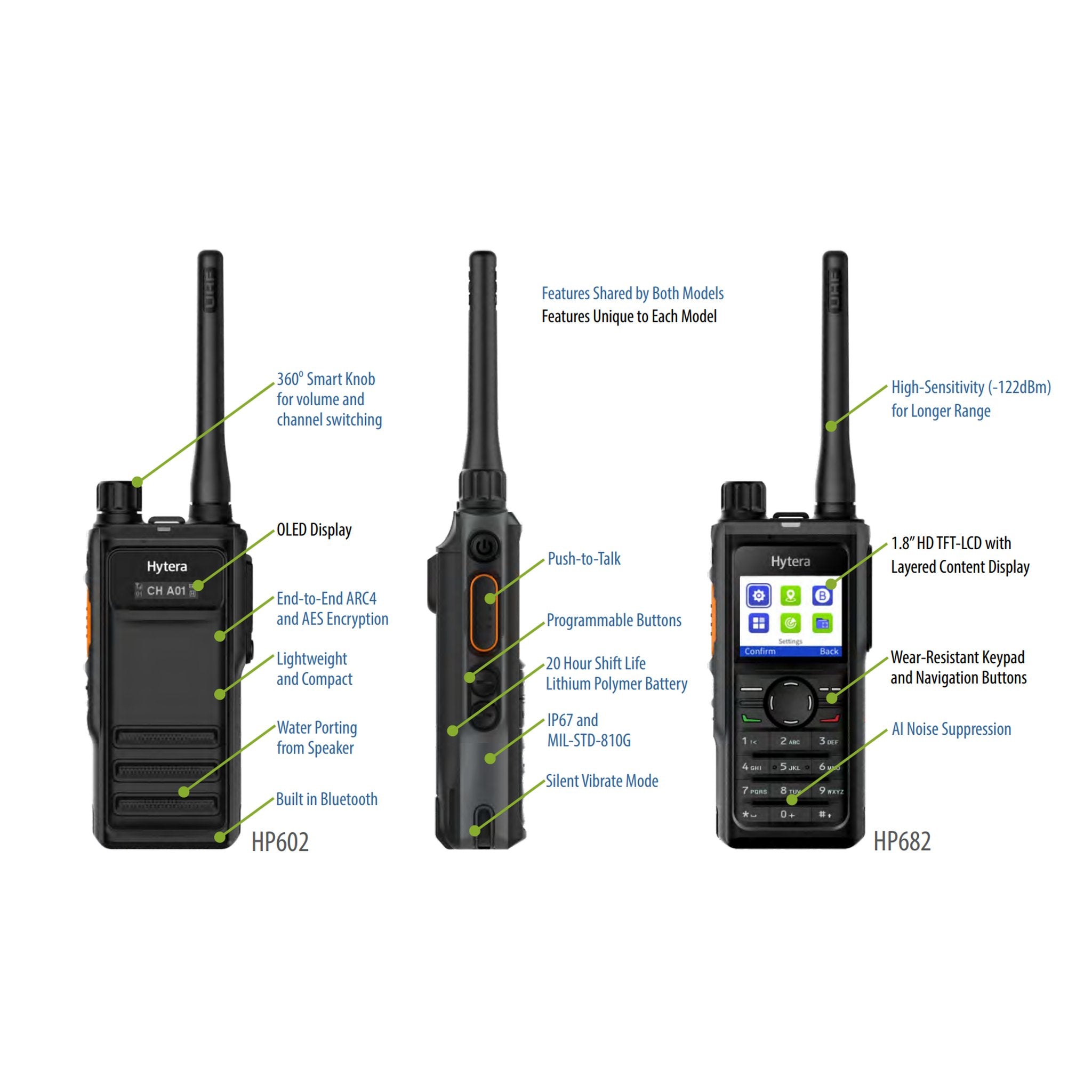

Both radios share the same rugged IP67 rating, AI noise cancellation, and 20-hour battery life. The HP682 adds a large 1.8" color LCD display and a full DTMF keypad, making it ideal for users who need to navigate menus, send text messages, or manually dial contacts. The HP602 features a smaller 0.91-inch OLED screen and no keypad.
Does the HP682 feature location tracking?
Yes, but only on specific models. If you need real-time GPS location tracking and wireless Bluetooth connectivity, select the GPS & Bluetooth model (HP682-G-BT-Um or HP682-G-BT-V1) from the dropdown menu when purchasing.
Can the Hytera HP682 communicate with older analog radios?
Yes. The HP682 supports analog FM as well as digital DMR. For analog communication, radios must operate in the same frequency band and be programmed with matching frequencies and compatible tone settings.
Does the Hytera HP682 come with encryption?
Yes. The HP682 includes basic digital encryption (ARC4) at no additional cost. AES 256-bit encryption requires the optional Hytera SW00017 license, sold separately for each radio. Radios communicating on an encrypted channel must have compatible encryption settings and matching keys.
Is a charger included with the HP682?
Yes. The HP682 radio kit includes the CH10L30 desktop charger and required PS1014 power supply. You do not need to purchase these separately when ordering the radio kit.
What is the warranty on the Hytera HP682?
Hytera provides a 3-year manufacturer’s warranty on the radio unit itself, and a 1-year warranty on included accessories.
