Description

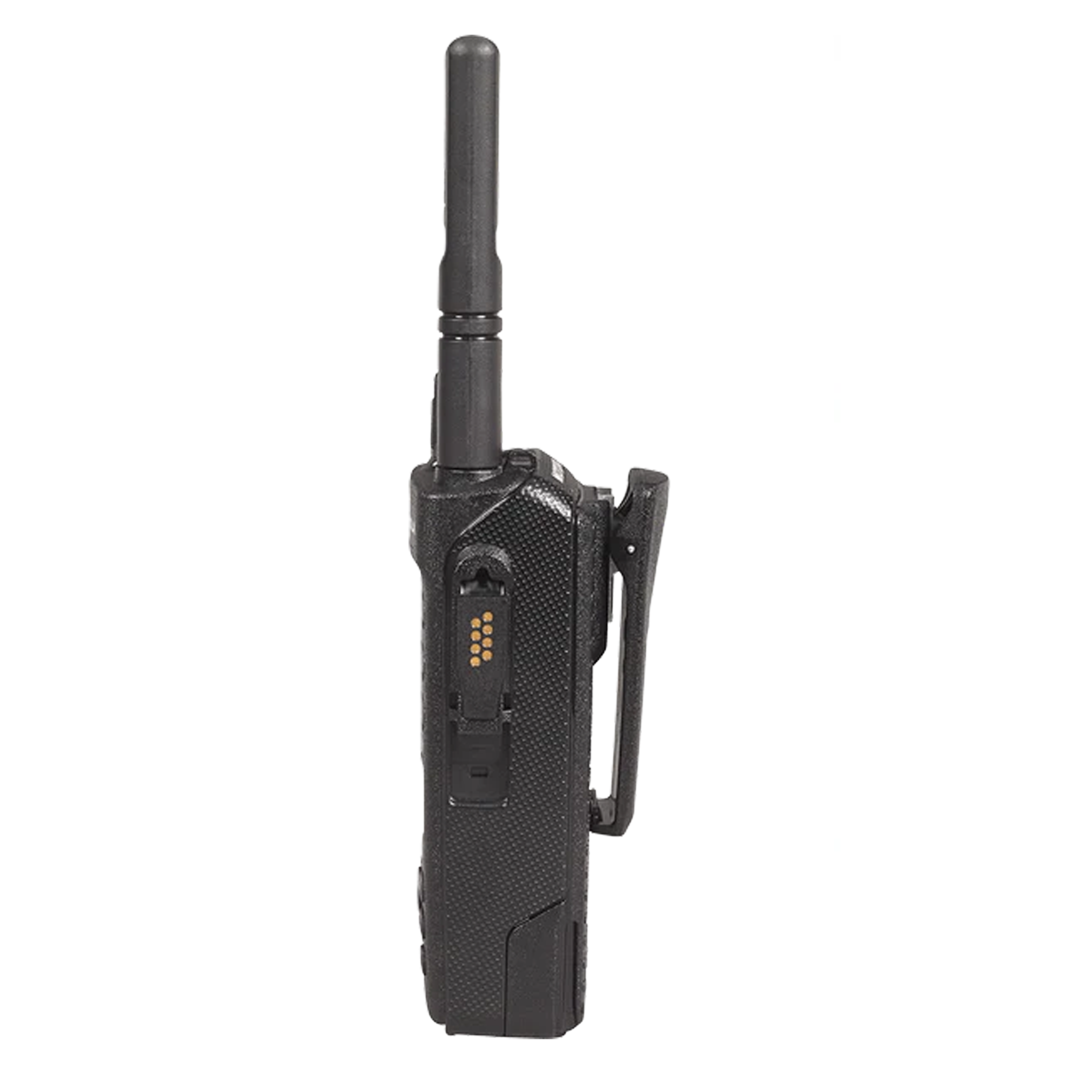

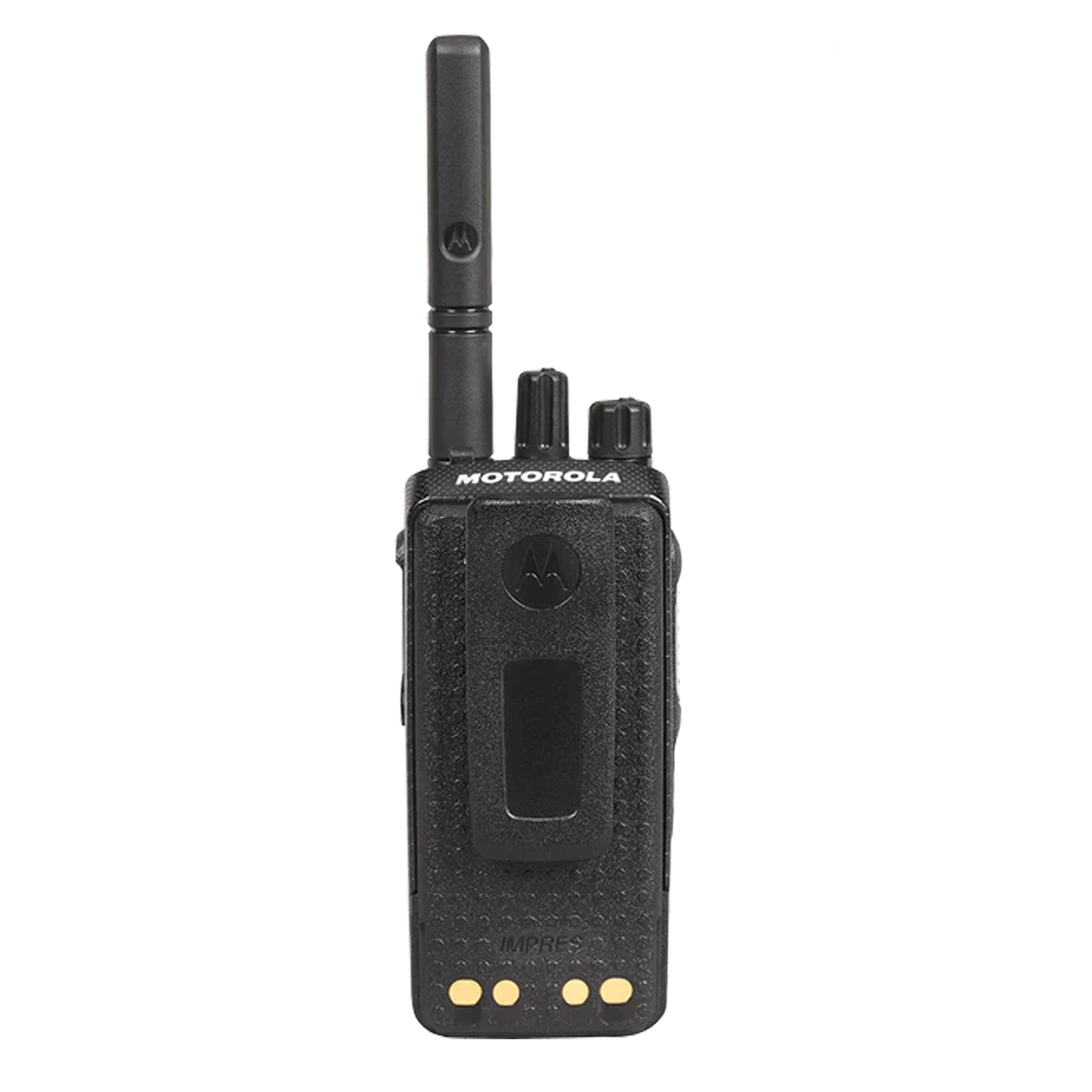

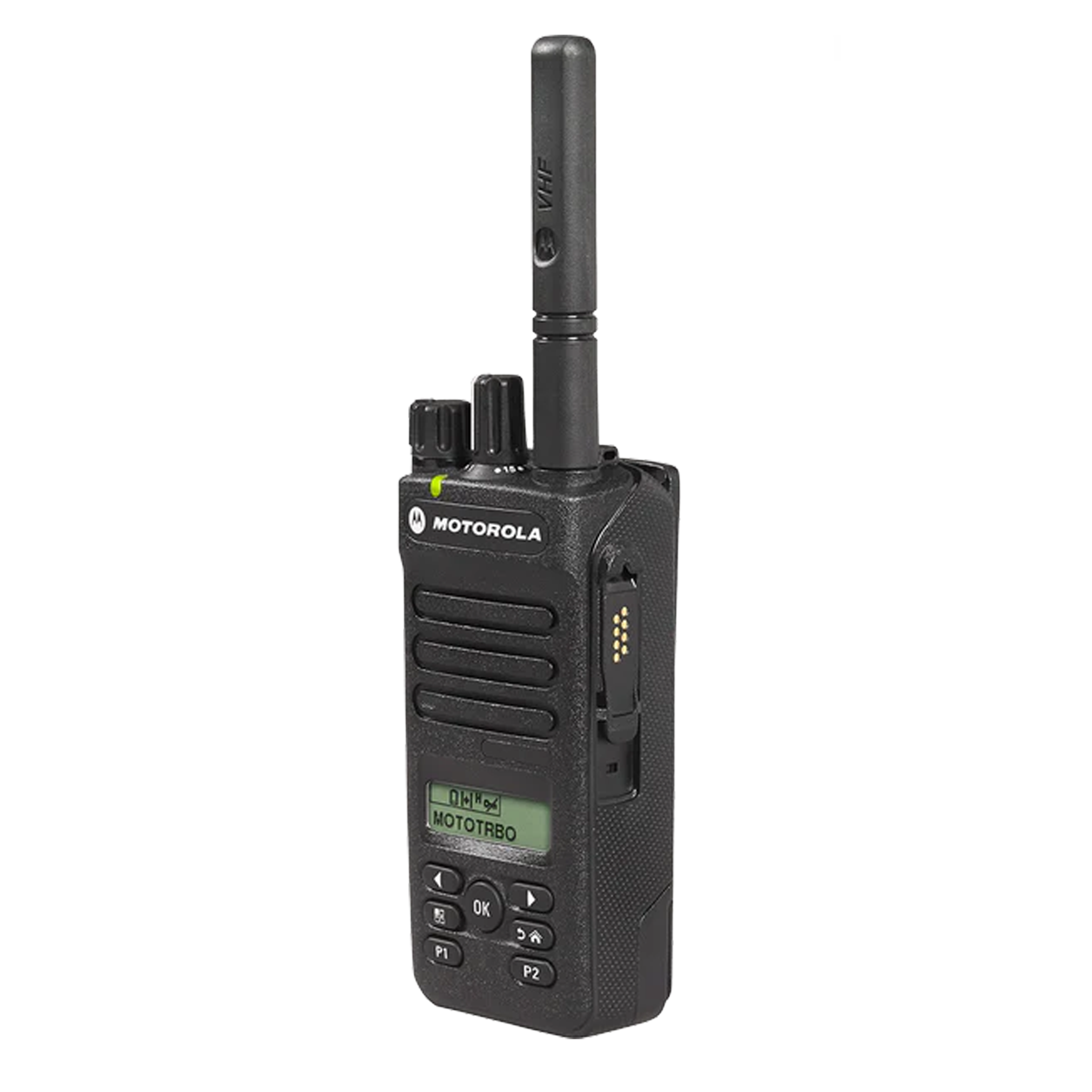

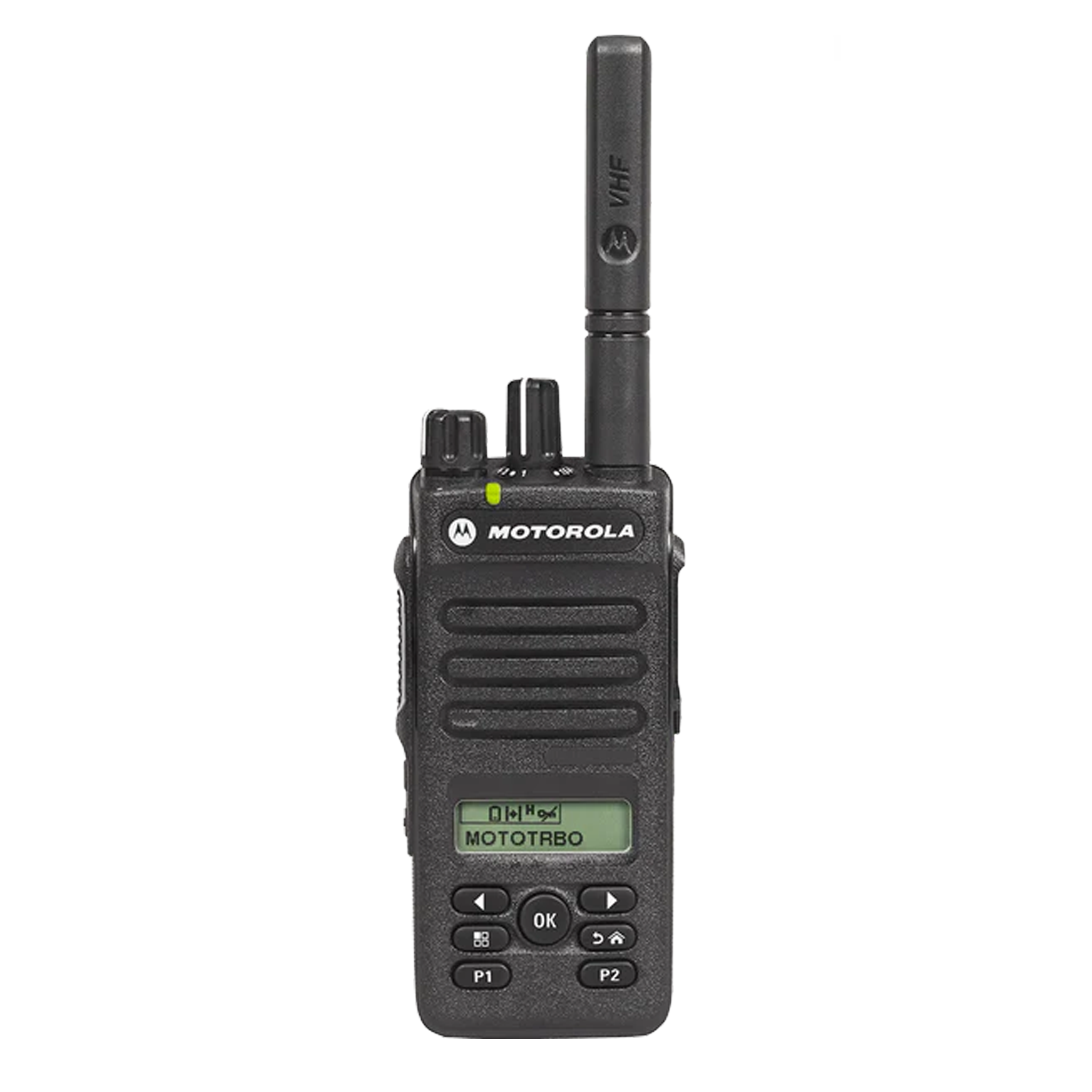

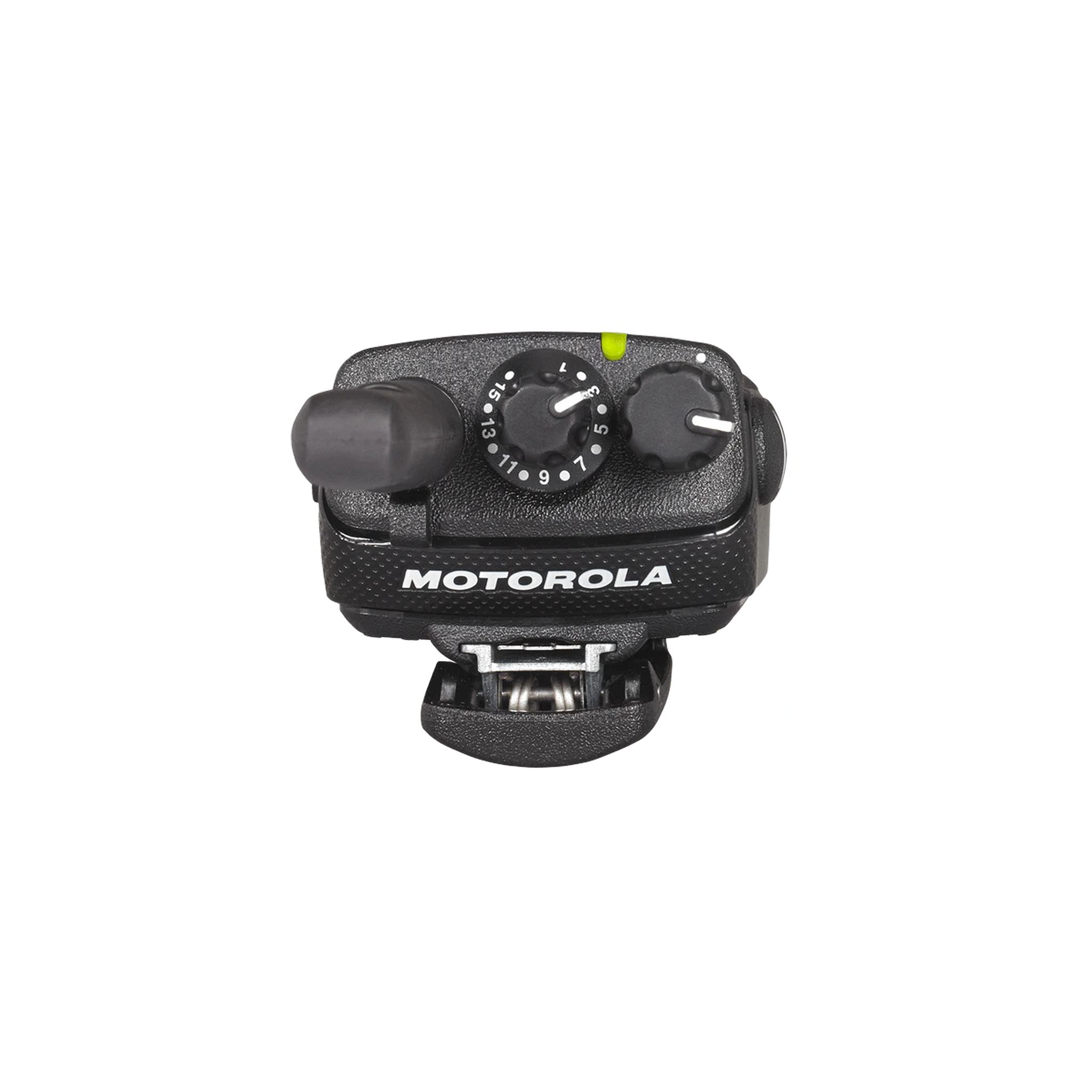

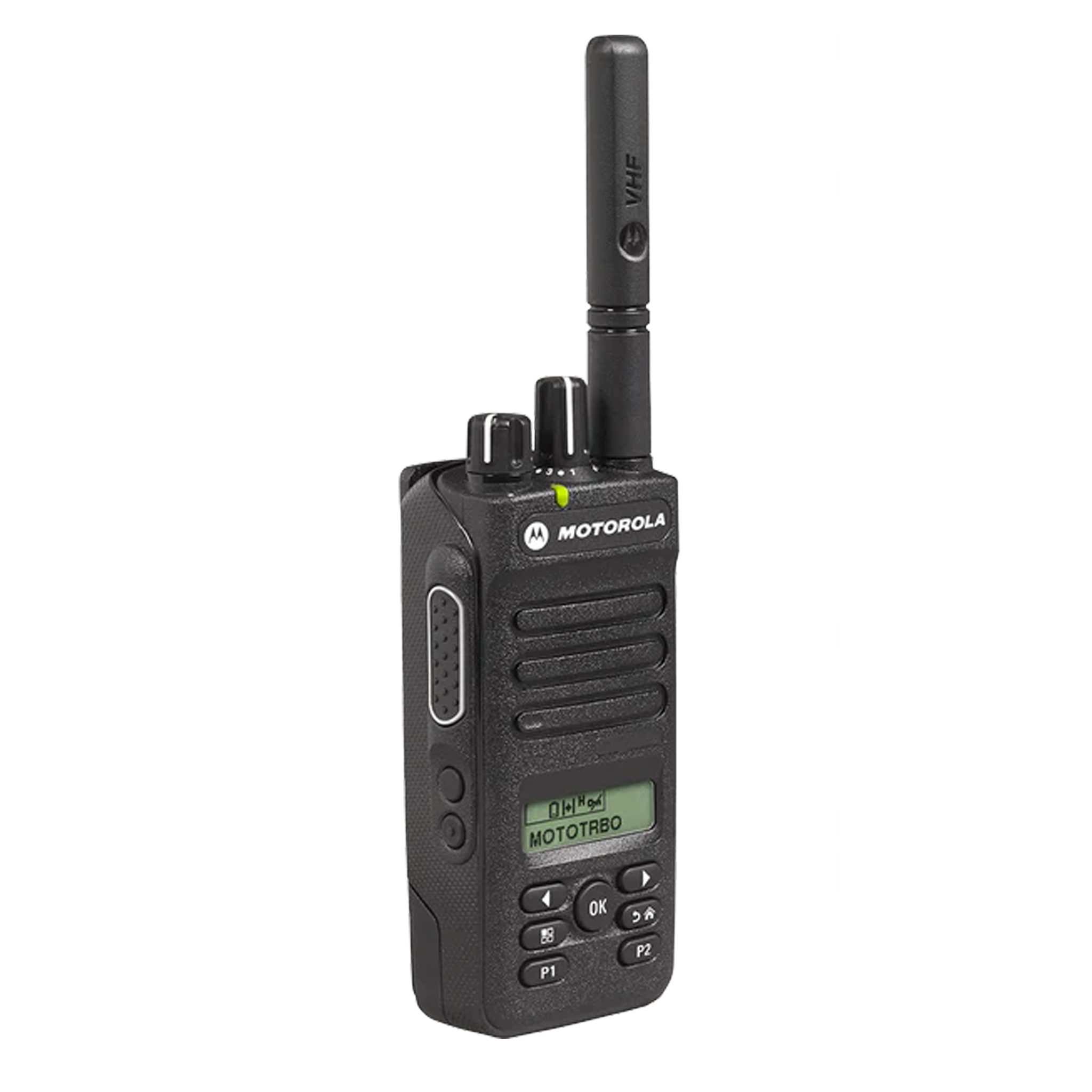

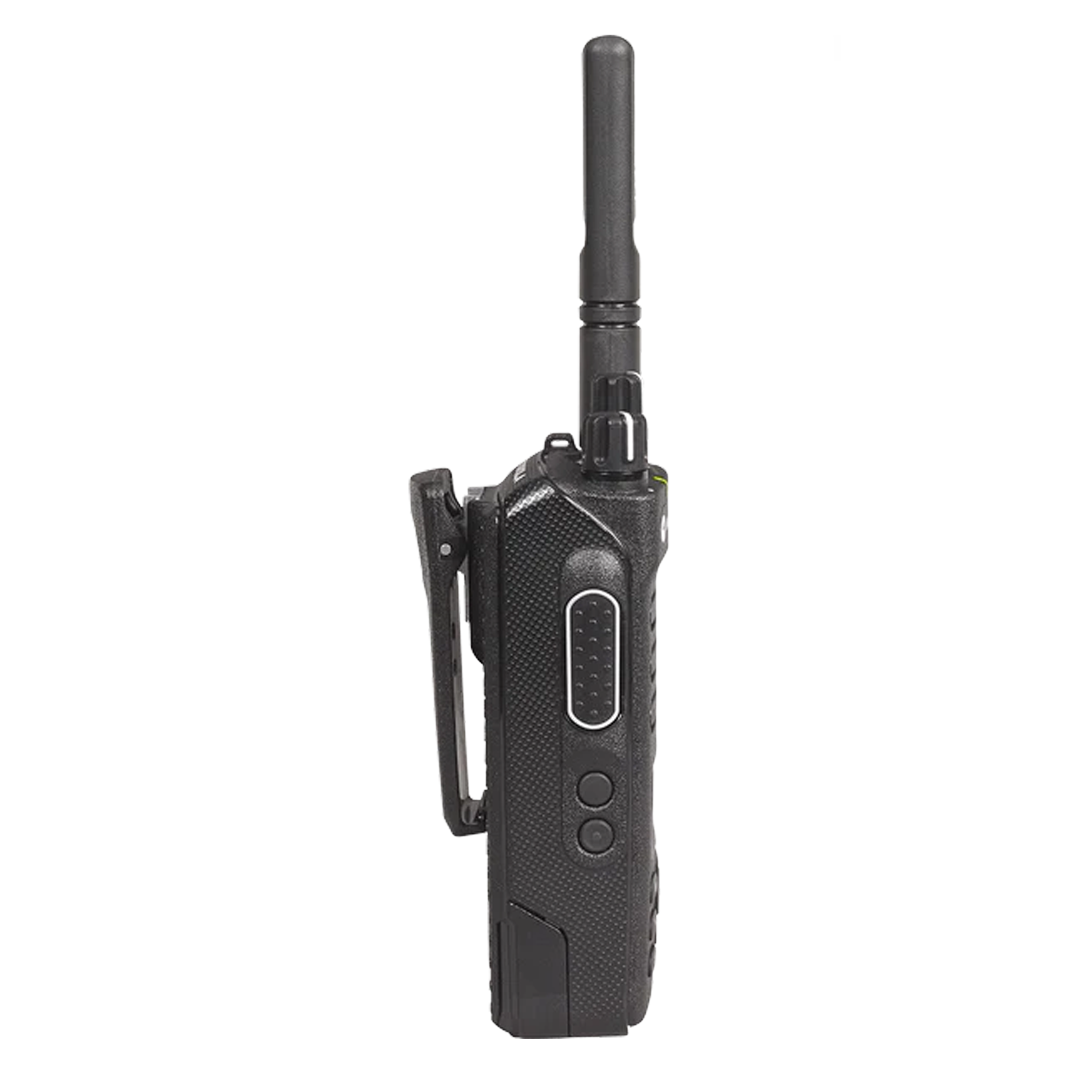

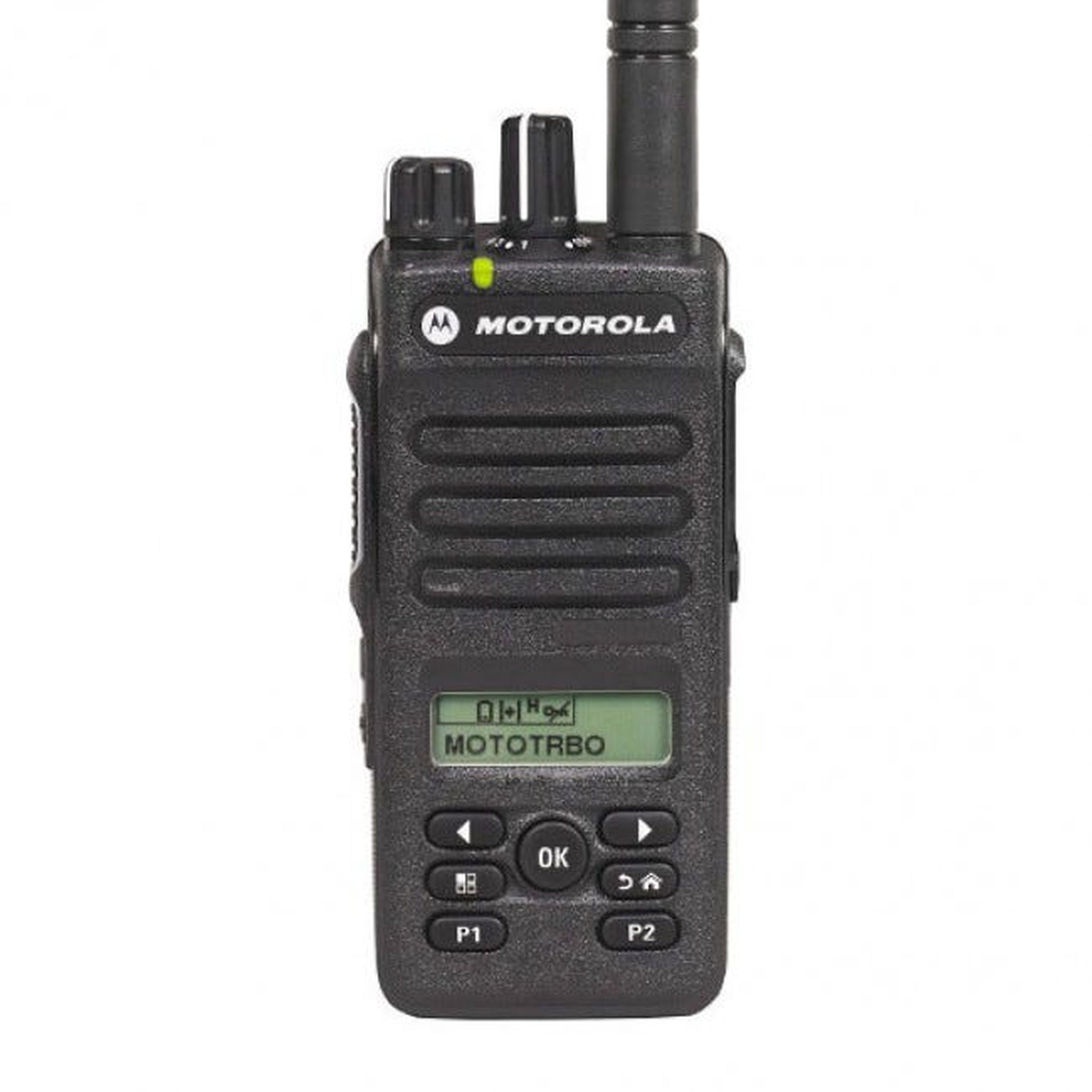

Motorola MOTOTRBO XPR3500e
Digital Limited Keypad Portable Two-Way Radio
Advanced Display and Connectivity for Enhanced Team Coordination
The Motorola MOTOTRBO™ XPR3500e is a versatile, high-tier digital portable radio designed to bridge the gap between simple voice communication and advanced system functionality. Featuring a crisp alphanumeric display and limited keypad, the XPR3500e allows users to view caller ID, navigate 128 channels, and read text messages with ease. Part of the enhanced MOTOTRBO™ E-series, this model is Wi-Fi capable ((HKVN4381A license required), enabling remote firmware and software updates without removing the units from the field.
Engineered for durability in high-intensity environments—including yachting, public safety, and manufacturing—the XPR3500e carries an IP67 rating, making it completely dustproof and waterproof (submersible up to 1 meter for 30 minutes). It utilizes IMPRES™ technology to deliver up to 21 hours of battery life and superior audio clarity with integrated noise cancellation. For hazardous environments where explosive gases or combustible dust are present, the XPR3500e is available in Intrinsically Safe (UL-Rated) variations to ensure strict safety compliance.
With support for both digital and analog modes, the XPR3500e is the ideal solution for mixed fleets. It features Dual Capacity Direct Mode, allowing you to double your calling capacity on a single frequency. Backed by an industry-leading 5-Year Essential Repair Warranty, this radio is a long-term, cost-effective investment for any professional organization.
Experience reliable communication in any environment with the Motorola XPR3500e. For more information about Bluetooth capability or the XPR3500e radio, start a chat in the bottom right corner or contact us HERE.
Key Features & Benefits
-
Alphanumeric Display: High-contrast screen provides essential information such as channel names, battery status, and caller identification.
-
IP67 Waterproofing: Ruggedized chassis is fully submersible and dust-tight for use in maritime or heavy industrial conditions.
-
Wi-Fi Integrated: Supports over-the-air updates for faster fleet management (requires HKVN4381A license).
-
IMPRES™ Audio & Power: Intelligent audio automatically adjusts volume to compensate for background noise, while smart batteries optimize duty cycles.
-
Intrinsically Safe Options: Certified UL-Rated versions available for hazardous locations (includes PMNN4490 battery).
-
5-Year Manufacturer’s Warranty: Includes Motorola's Essential Repair services, covering the radio body for five full years.
Specifications
-
Frequencies: UHF (403-512 MHz) or VHF (136-174 MHz)
-
Channel Capacity: 128 Channels
-
Power Output: 4W (UHF) / 5W (VHF)
-
Battery Life: Up to 21 Hours (Digital) / 16 Hours (Analog)
-
Ingress Protection: IP67
-
Safety Rating: Standard or TIA4950 (UL-Rated) Intrinsically Safe
-
Connectivity: Bluetooth 4.0, Wi-Fi (License Required)
Model Variations & SKUs
| Model Type |
Frequency |
SKU |
| Standard (Non-UL) |
UHF |
AAH02RDH9VA1AN |
| Standard (Non-UL) |
VHF |
AAH02JDH9VA1AN |
| Intrinsically Safe (UL) |
UHF |
AAH02RDH9VA1AN-UL |
| Intrinsically Safe (UL) |
VHF |
AAH02JDH9VA1AN-UL |
Recommended Accessories
- Motorola PMNN4490 IMPRES Li-Ion TIA4950 Battery (UL-Rated)
- Motorola PMNN4544A IMPRES Li-Ion 2450mAh Battery (Standard)
- Motorola PMAE4079A UHF GPS Combination Antenna
- Motorola PMAD4120 VHF Stubby Antenna
What's Included
- Motorola XPR3500e Radio Handset
- IMPRES Li-Ion Battery (Model depends on UL selection)
- IMPRES Single-Unit Charging Kit
- Frequency-Specific Antenna
- 2" Spring-Action Belt Clip (PMLN4651)
- Accessory Dust Cover
Frequently Asked Questions
-
How does the XPR3500e differ from the XPR3300e? The XPR3500e includes a display and limited keypad with 128 channels, whereas the XPR3300e is a non-display, 16-channel model.
-
Is the Wi-Fi feature active out of the box? The hardware is integrated, but activating Wi-Fi for over-the-air updates requires the HKVN4381A software license.
-
Can I read text messages on this radio? Yes, the alphanumeric display allows users to receive and read text messages sent from other display-model radios or dispatch consoles.
More Resources
Warranty
5-Year Manufacturer's Warranty (Essential Repair)
