Atlantic Radio Products

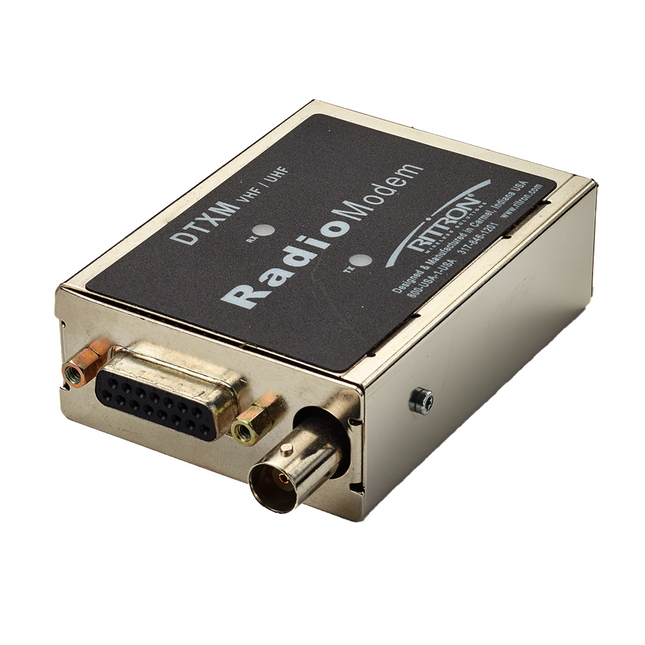

Ritron Ritron DTXM Radio Modem and Digital Transceivers
Ritron DTXM RADIO MODEM AND DIGITAL TRANSCEIVER The DTXM Radio Modem is a high performance Wireless Modem that supports blazing over-the-air data rates of 9600 bps in a 12.5 kHz channel, and 4800 bps in a 6.25 kHz channel. High performance specifications permit integration into systems that demand the utmost in reliability in high-traffic, frequency congested environments. Direct modulation with low distortion and low group delay result in low bit-error-rate (BER) for enhanced system integrity and reliability. Utilizing the same Swift Lock synthesizer used by the DTX + RF transceiver for transmit and receive attack times of 15 ms or less for high-speed data throughput. Also, the Controlled Envelope keying reduces adjacent channel "keyclicks" resulting in spectrum-friendly operation. DTXM KEY FEATURES Ultra Narrow Band (6.25 kHz)/ Narrow Band (12.5 kHz)/ Wide Band (25kHz) 4800 bps Ultra Narrow Band, 9600 bps Narrow Band, 19,200 bps Wide Band Broadband TX/RX Design: 36 MHz VHF 28 MHz 220 MHz 20 MHz UHF RS-232 Interface SMD Component Design Ultra Fast TX/RX Attack Times Controlled Envelope TX Keying Designed and Made in the USA Meets FCC and IC (Canada) Standards Programmable electronics Settings and Adjustments Programmable High/Low Output Power Custom Frequency Ranges Available Supports Streaming and Packet Operation DTXM KIT INCLUDES: Synthesized RF Transceivers with Control Board Enclosure BNC Antenna Connector DB-15 Data/Power Connector Model Frequency Watts Voltage Req DTXM-160-0BN6I 136-174 MHZ 1-6 10-15 VDC DTXM-160-0BN6D 136-174 MHZ 1-6 7.5 VDC DTXM-460-GBN6I 400-430 MHZ 1-6 10-15 VDC DTXM-460-GBN6D 400-430 MHZ 1-6 7.5 VDC DTXM-460-0BN3I 450-470 MHZ 1-3 10-15 VDC DTXM-460-0BN3D 450-470 MHZ 1-3 7.5 VDC DTXM-460-0BN6I 450-470 MHZ 1-6 10-15 VDC DTXM-460-0BN6D 450-470 MHZ 1-6 7.5 VDC DTXM-460-0BN9L 450-470 MHZ 10 11-16 VDC WARRANTY * 1-year manufacturer's warranty.Â
$643.00$598.23

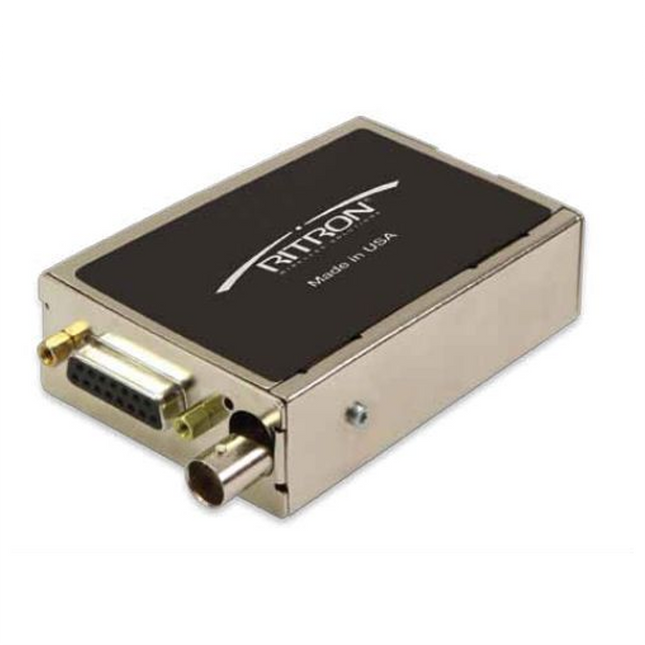

Ritron Ritron DTX Plus Wireless Transceiver Data Modules

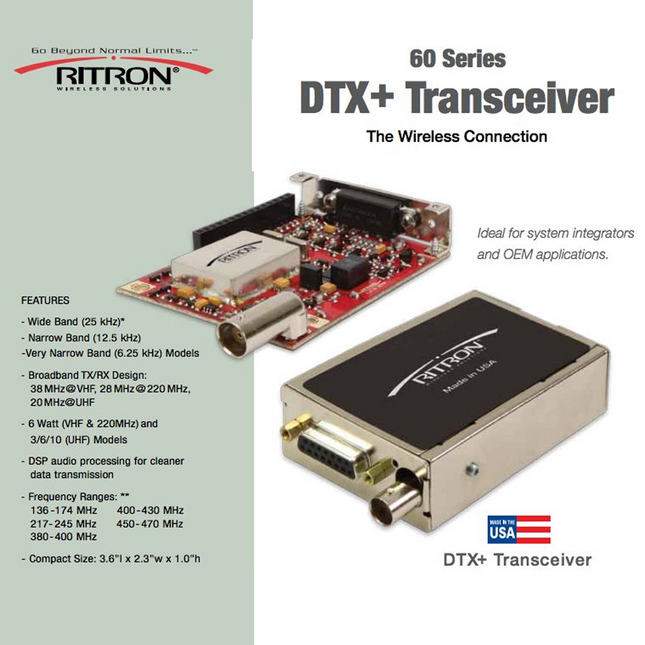

Ritron DTX+ Series WIRELESS TRANSCEIVER DATA MODULES The DTX+ Series are ideal for any system where high performance RF specifications, fast TX/RX attack times, and compact size are a requirement. Tight specifications permit integration into systems demanding the utmost performance in congested frequency environments. DTX+ KEY FEATURES VHF (136-174MHz)/ UHF (450-470MHz) Narrowband 1-6 Watts (10 Watts for DTX-460-0BN9L) Voltage varies among different models DTX+ KIT INCLUDES: RF Transceiver with Control Board Enclosure BNC Antenna Connector DB-15 Data and Power Connector Model Frequency Bandwidth Watts Voltage Req DTX-160-0BN6I VHF 136-174 MHz Narrow Band 1-6 10-15 VDC DTX-160-0BN6D VHF 136-174 MHz Narrow Band 1-6 7.5 VDC DTX-260-0BN6I VHF 217-245 MHz Narrow Band 1-6 10-15 VDC DTX-260-GBN6D VHF 217-245 MHz Narrow Band 1-6 7.5 VDC DTX-460-0BN3I UHF 450-470 MHz Narrow Band 1-3 10-15 VDC DTX-460-0BN3D UHF 450-470 MHz Narrow Band 1-3 7.5 VDC DTX-460-0BN6I UHF 450-470 MHz Narrow Band 1-6 10-15 VDC DTX-460-0BN6D UHF 450-470 MHz Narrow Band 1-6 7.5 VDC DTX-460-0BN9L  UHF 450-470 MHz Narrow Band 10 11-16 VDC DTX-460-GBN6I UHF 400-420 MHz Narrow Band 1-6 10-15 VDC DTX-460-GBN6D UHF 400-420 MHz Narrow Band 1-6 7.5 VDC WARRANTY * 1-year manufacturer's warranty.Â
$636.00$549.00
When cell phones won’t suffice for professional communication, seek more reliable resources. Atlantic Radio products encompass portable and mobile two-way radios, radio repeaters, earpiece headsets, and more. These devices have long lifespans and can withstand rugged conditions. Whether you operate a construction company, travel as a truck driver, or go on expeditions in the mountains, two-way radio equipment is the answer.
Atlantic Radio is proud to serve as a one-stop shop for industry-leading two-way radio communication. Our knowledgeable and experienced team carries versatile products and top brands to comprehensively serve all industry’s needs for reliable communication resources. Take advantage of brands like Motorola, Hytera, and Icom. You’ll benefit from Atlantic Radio products’ UHF and VHF capabilities, easily programmable features, durable lithium-ion batteries, and accessories like Bluetooth earpieces and microphones. Browse the extensive selection of Atlantic Radio devices to find the right communication tools for your endeavors.Â
