Hytera EHM04-A Ear Hook Earpiece for Portable Two-Way Radios

Hytera EHM04-A

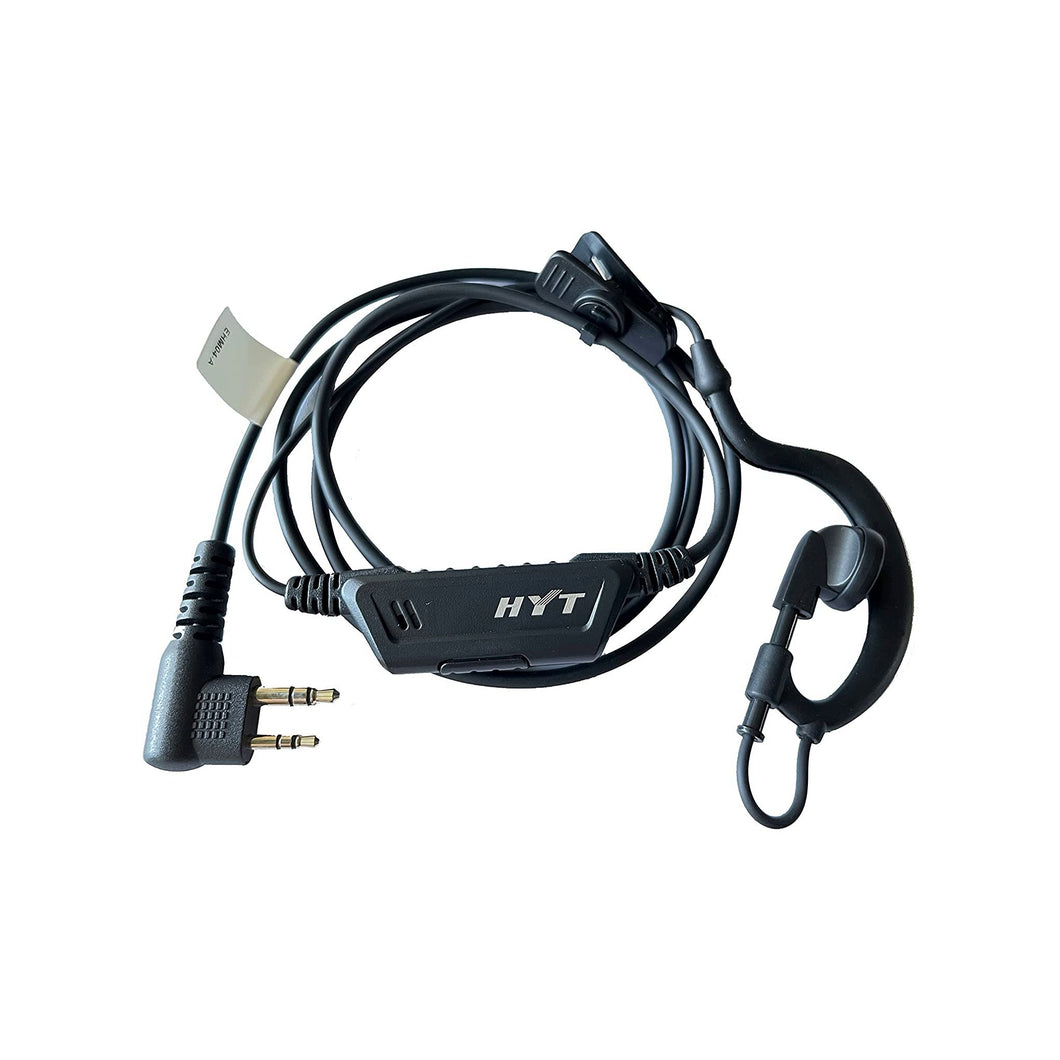

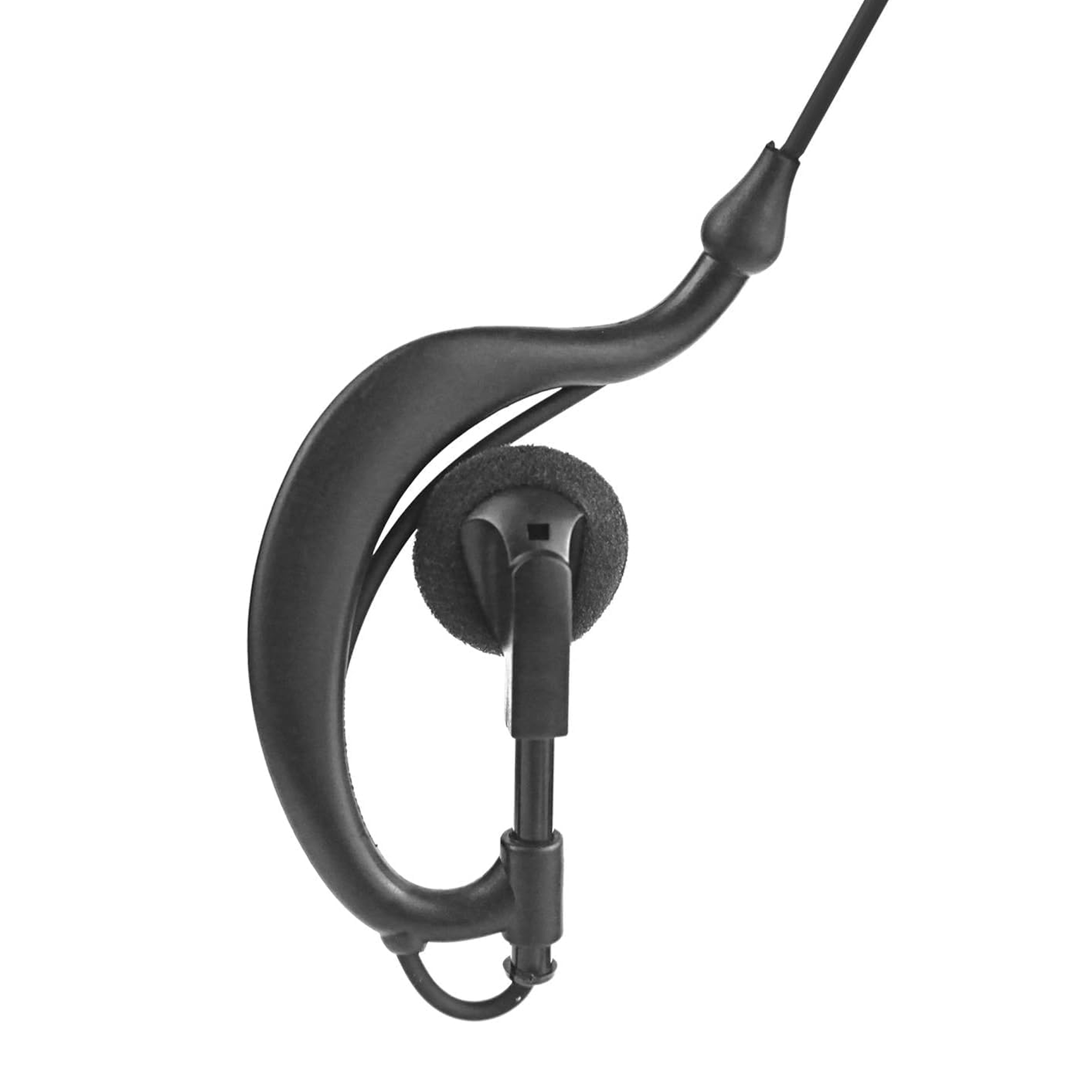

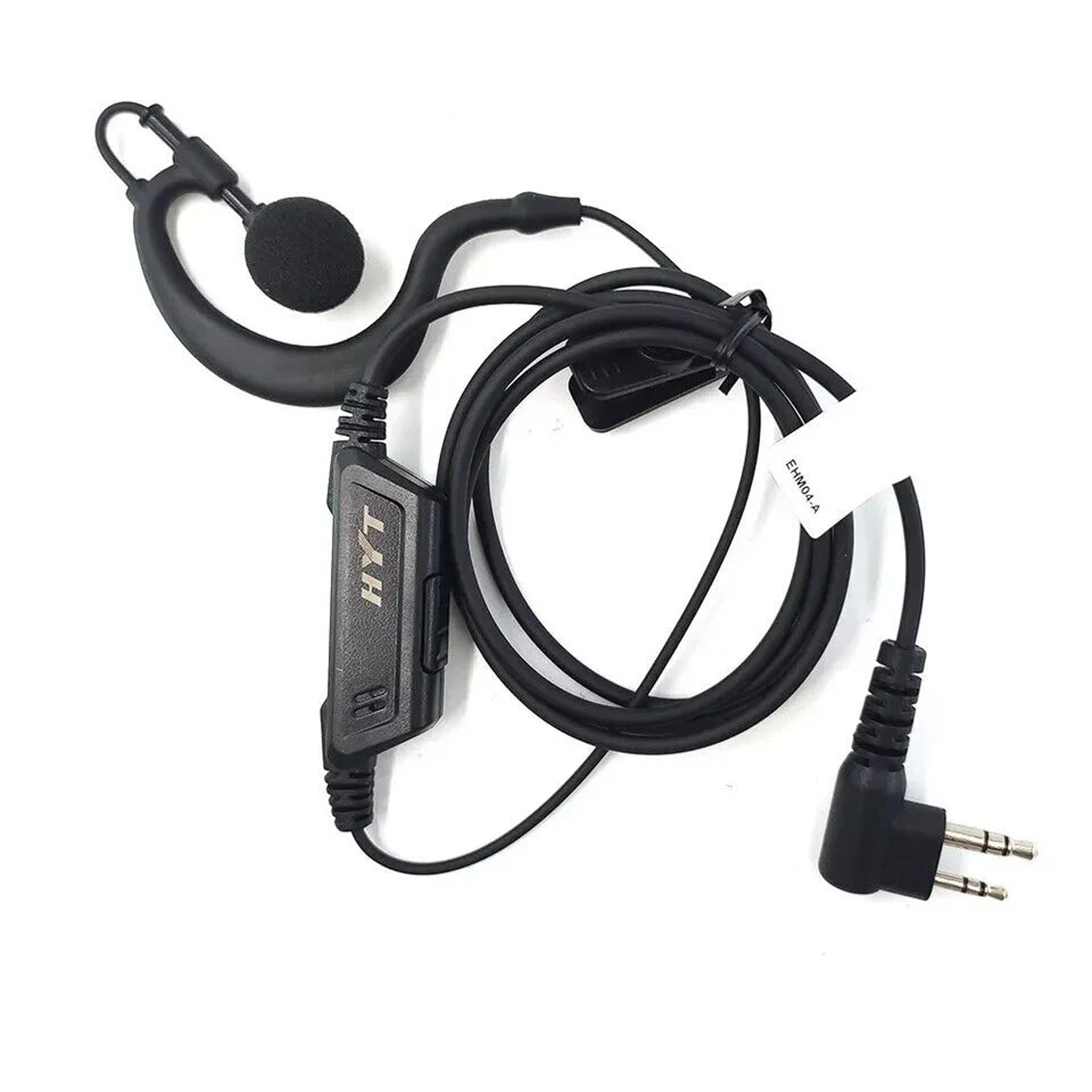

The Hytera EHM04-A is a ear hook earpiece for Hytera portable two-way radios.

The EHM04-A works with these radios: TC-508, TC-610, BD502i, BD552i, BD612i, PD402i, PD412i, PD482i, PD502i and PD562i.

Specifications of EHM04-A

  • Weight - about 28g
  • Color - black
  • PTT Key - yes
  • VOX - no
  • Emergency Key - no

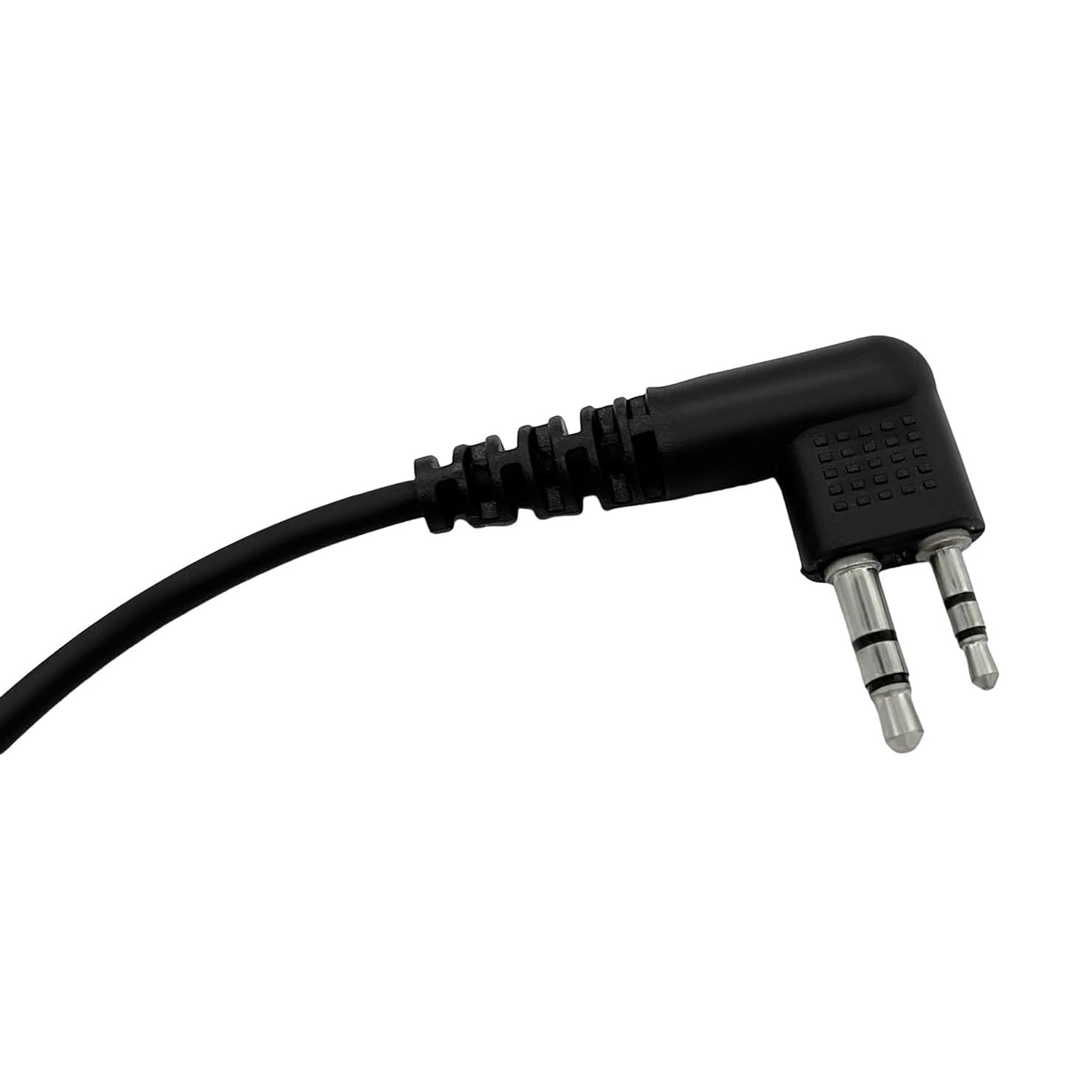

  • Connector - 2-pin
  • Microphone Sensitivity - -42±3dB@1kHz 3.0V 2.2KΩ;0dB=1V/Pa
  • Speaker Power - 20 mW (rated); 30 mW (max.)
  • Speaker Impedance - 32Ω±15%@1kHz
  • Speaker Frequency Response - 102±4dB@1kHz at10mW
  • IP Rating - no
  • Operating Temperature - -20~60℃
  • Storage Temperature - -40~85℃



*1 year warranty on this item.

ATLANTIC RADIO IS A HYTERA DIAMOND DEALER.

Hytera EHM04-A Ear Hook Earpiece for Portable Two-Way Radios

Product form

Free pickup in our shop(s)

SKU: EHM04-A

$19.95$13.97

    Hytera EHM04-A

    The Hytera EHM04-A is a ear hook earpiece for Hytera portable two-way radios.

    The EHM04-A works with these radios: TC-508, TC-610, BD502i, BD552i, BD612i, PD402i, PD412i, PD482i, PD502i and PD562i.

    Specifications of EHM04-A

    • Weight - about 28g
    • Color - black
    • PTT Key - yes
    • VOX - no
    • Emergency Key - no
    • Connector - 2-pin
    • Microphone Sensitivity - -42±3dB@1kHz 3.0V 2.2KΩ;0dB=1V/Pa
    • Speaker Power - 20 mW (rated); 30 mW (max.)
    • Speaker Impedance - 32Ω±15%@1kHz
    • Speaker Frequency Response - 102±4dB@1kHz at10mW
    • IP Rating - no
    • Operating Temperature - -20~60℃
    • Storage Temperature - -40~85℃



    *1 year warranty on this item.

    ATLANTIC RADIO IS A HYTERA DIAMOND DEALER.
