Ritron DTX-Ls Series Wireless Transceiver Data Modules

Ritron DTX-Ls Series

WIRELESS TRANSCEIVER DATA MODULES

The DTX-Ls Series wireless transceiver modules are high performance, cost-effective, low current drain, single board OEM transceivers available in VHF and UHF frequency bands. They are designed and made in the USA. There two types of models: Radio In Housing and Board Only Version. Please see below for the various models in these two categories.

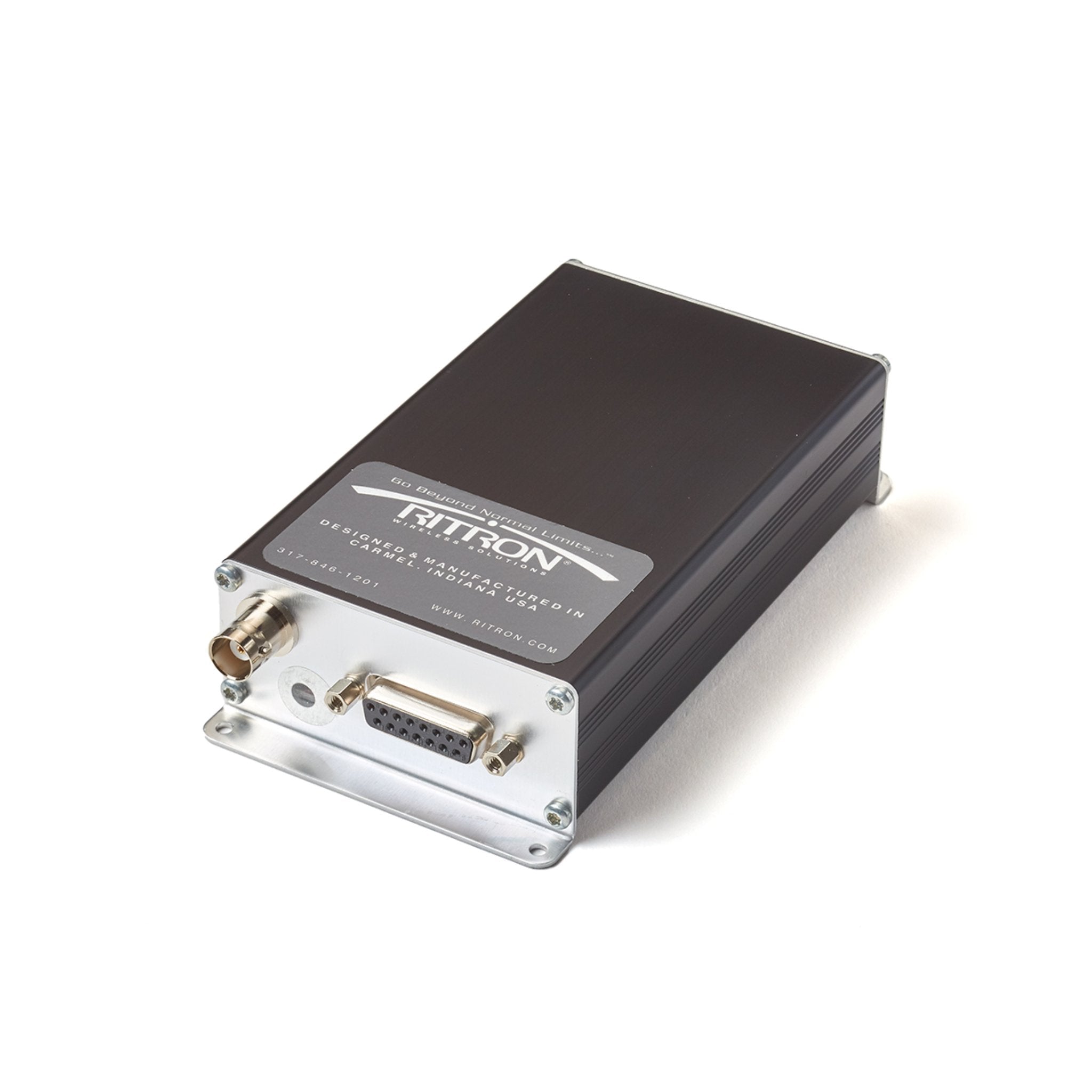

RADIO IN HOUSING

The types of models in this category include single PCB, a programmable RF transceiver with a metal enclosure, a BNC Antenna Connector, and a DB-15 Data/Power Connector.

 Model Frequency Bandwidth Wattage Voltage Req
DTX-4450BN5E
450-470MHz
Narrow Band
2-5 8-15 VDC
DTX-4450BN8E
450-470MHz Narrow Band 2-8 8-15 VDC
DTX-445GBN5E
400-417MHz
Narrow Band 2-5 8-15 VDC
DTX-445HBN5E
411-429MHz
Narrow Band 2-5 8-15 VDC
DTX-446-0BN5E*
450-490MHz Narrow Band 2-5 8-15 VDC
DTX-1450BN5E
136-174MHz
Narrow Band 2-5 8-15 VDC

* Meets latest EU RED requirements and Australian/New Zealand requirements including latest receiver performance metrics.

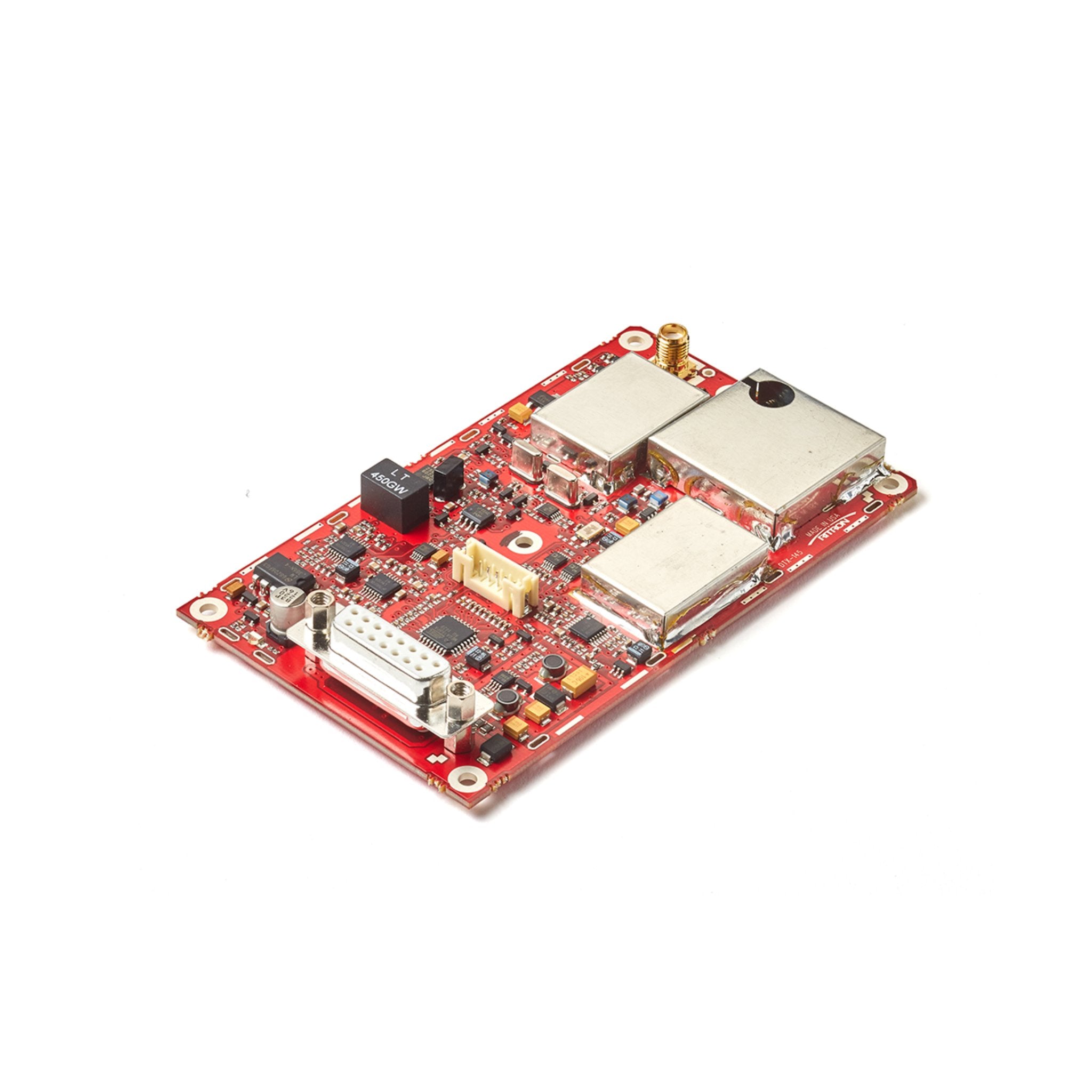

BOARD ONLY VERSION

The types of models in this category include a single PCB programmable RF Transceiver, SMA antenna connector, and a straight-up DB-15 Data/power connector.

Model Frequency Bandwidth Wattage Voltage Req
DTX-4450SN5D
450-470MHz Narrow Band
2-5 8-15 VDC
DTX-4450SN8D 450-470MHz Narrow Band 2-8 8-15 VDC
DTX-445GSN5D 400-417MHz Narrow Band 2-5 8-15 VDC
DTX-445HSN5D 411-429MHz Narrow Band 2-5 8-15 VDC
DTX-446-0SN5D* 450-490MHz Narrow Band 2-5 8-15 VDC
DTX-1450SN5D 136-174MHz
Narrow Band 2-5 8-15 VDC

* Meets latest EU RED requirements and Australian/New Zealand requirements including latest receiver performance metrics.

WARRANTY

* 1-year manufacturer's warranty

RITRON DTX LS DATA SHEET

Ritron DTX-Ls Series Wireless Transceiver Data Modules

Product form

SKU: DTX-4450BN5E

$462.00

    Ritron DTX-Ls Series

    WIRELESS TRANSCEIVER DATA MODULES

    The DTX-Ls Series wireless transceiver modules are high performance, cost-effective, low current drain, single board OEM transceivers available in VHF and UHF frequency bands. They are designed and made in the USA. There two types of models: Radio In Housing and Board Only Version. Please see below for the various models in these two categories.

    RADIO IN HOUSING

    The types of models in this category include single PCB, a programmable RF transceiver with a metal enclosure, a BNC Antenna Connector, and a DB-15 Data/Power Connector.

     Model Frequency Bandwidth Wattage Voltage Req
    DTX-4450BN5E
    450-470MHz
    Narrow Band
    2-5 8-15 VDC
    DTX-4450BN8E
    450-470MHz Narrow Band 2-8 8-15 VDC
    DTX-445GBN5E
    400-417MHz
    Narrow Band 2-5 8-15 VDC
    DTX-445HBN5E
    411-429MHz
    Narrow Band 2-5 8-15 VDC
    DTX-446-0BN5E*
    450-490MHz Narrow Band 2-5 8-15 VDC
    DTX-1450BN5E
    136-174MHz
    Narrow Band 2-5 8-15 VDC

    * Meets latest EU RED requirements and Australian/New Zealand requirements including latest receiver performance metrics.



    BOARD ONLY VERSION

    The types of models in this category include a single PCB programmable RF Transceiver, SMA antenna connector, and a straight-up DB-15 Data/power connector.

    Model Frequency Bandwidth Wattage Voltage Req
    DTX-4450SN5D
    450-470MHz Narrow Band
    2-5 8-15 VDC
    DTX-4450SN8D 450-470MHz Narrow Band 2-8 8-15 VDC
    DTX-445GSN5D 400-417MHz Narrow Band 2-5 8-15 VDC
    DTX-445HSN5D 411-429MHz Narrow Band 2-5 8-15 VDC
    DTX-446-0SN5D* 450-490MHz Narrow Band 2-5 8-15 VDC
    DTX-1450SN5D 136-174MHz
    Narrow Band 2-5 8-15 VDC

    * Meets latest EU RED requirements and Australian/New Zealand requirements including latest receiver performance metrics.

    WARRANTY

    * 1-year manufacturer's warranty

    RITRON DTX LS DATA SHEET
