Description

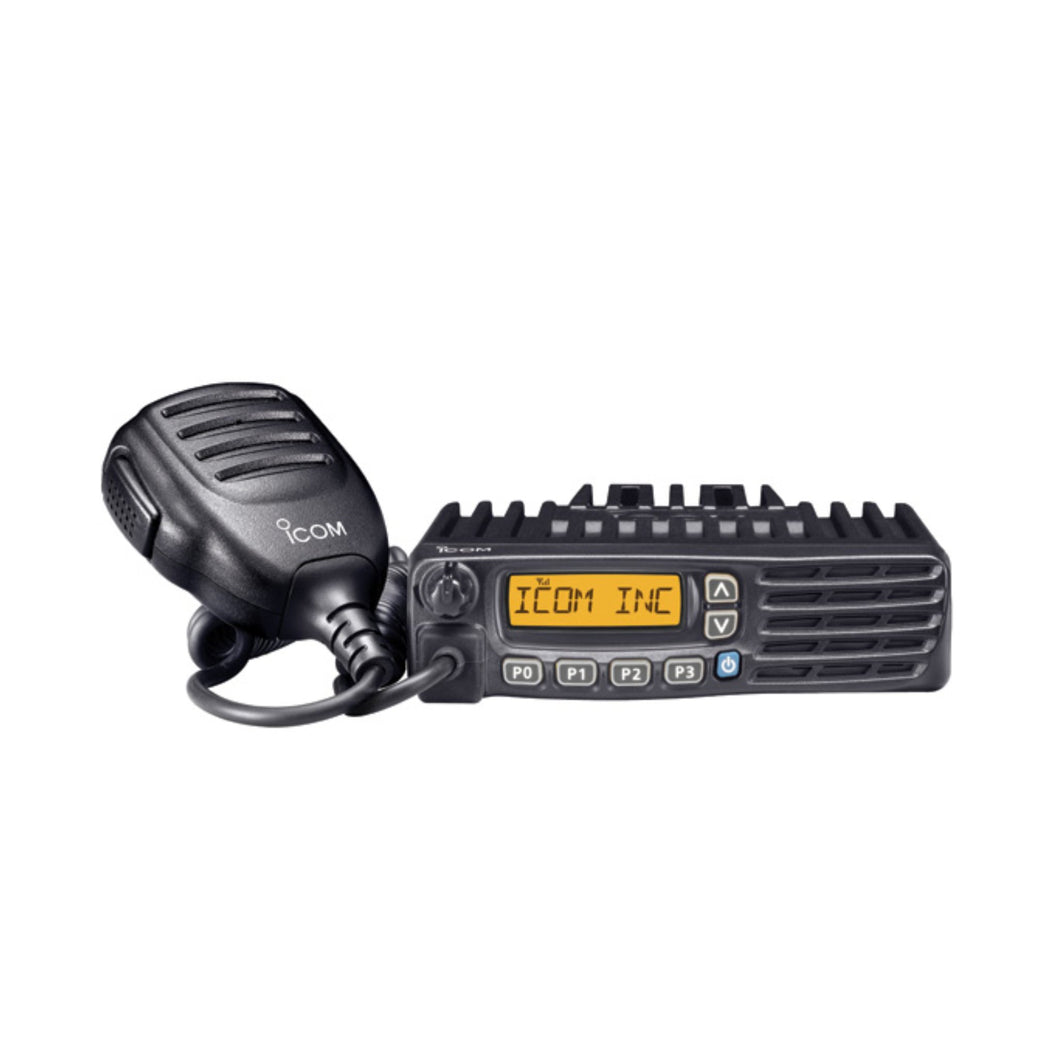

Icom F6220D UHF (400–512MHz)
UHF IDAS Multi-Site Trunking Mobile Two-Way Radio
The Icom F6220D is an IDAS digital mobile two-way radio engineered for wide-area coverage and high performance across the 400–512MHz UHF frequency band. With a powerful 45 Watts output and a loud 4W front-mounted speaker, this radio ensures clear and reliable communication throughout the vehicle cabin and across extended distances.
The Icom F6220D is highly versatile, supporting Analog FM, IDAS multi-site conventional, and IDAS multi-site and single-site trunking modes. Its key feature, Roaming Scan, automatically finds and selects a new repeater site as the user moves, maintaining the communication link and quality. Built ruggedly with a tough aluminum die-cast chassis and MIL-STD-810 compliance, this radio is ideal for field services and transportation industries.
Key Features
-
Wide-Area IDAS Trunking: Compatible with IDAS multi-site and single-site trunking, providing extensive coverage and efficient channel utilization across large operational areas.
-
Automatic Roaming Scan: In multi-site trunking mode, the radio automatically finds the best signal site as the user moves, ensuring continuous communication link quality.
-
Powerful 4W Front Speaker: The front-mounted speaker delivers loud, clear audio, maximizing voice intelligibility even in noisy vehicle environments.
-
High 45 Watt UHF Output: Provides robust signal penetration and extended range across the 400–512MHz frequency band.
-
MIL-STD-810 Ruggedness: Tested to MIL-STD-810 environmental standards, ensuring durability against shock, vibration, and temperature extremes in mobile use.
-
Channel Announcement: The radio announces the channel number when changed, allowing the user to make adjustments without looking at the display.
-
Expandable External Control: Supports optional D-SUB accessory cables for external control of PTT, horn honk, ignition switch, and GPS connectivity.
Kit Includes
- Radio
- HM152- Hand Microphone
- DC power cable
- Mounting bracket kit
- Microphone hanger
Benefits
-
Seamless Coverage: Roaming Scan guarantees uninterrupted communication quality, which is critical for mobile personnel covering wide geographic areas.
-
Superior Clarity: The 4W front speaker and digital modulation ensure distinct audio, eliminating communication errors caused by vehicle noise.
-
Flexible Digital Migration: Dual mode operation (Analog/Digital) allows organizations to integrate the radio into existing analog systems while planning a full digital migration.
-
Durable Mobile Investment: Rugged aluminum chassis and MIL-STD testing ensure the radio withstands the harsh vibrations and temperature extremes of vehicle mounting.
More Resources
Warranty
2-year manufacturer's warranty on radio and 1-year warranty on accessories.
