Ritron RQX-417NX
UHF NXDN DIGITAL/ANALOG CALLBOX

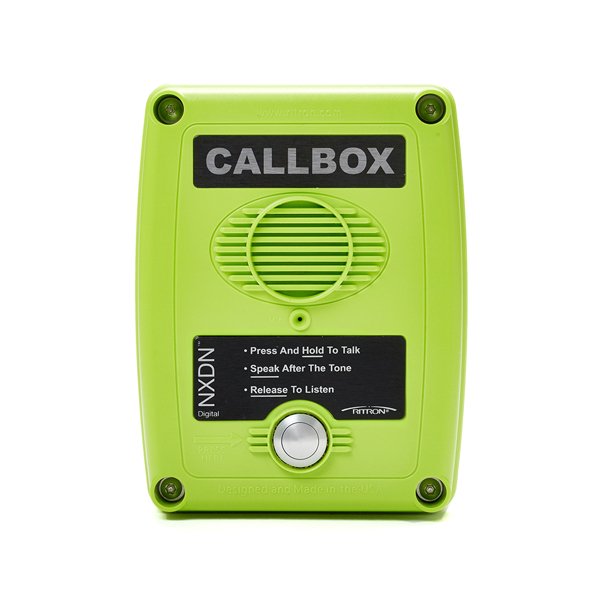

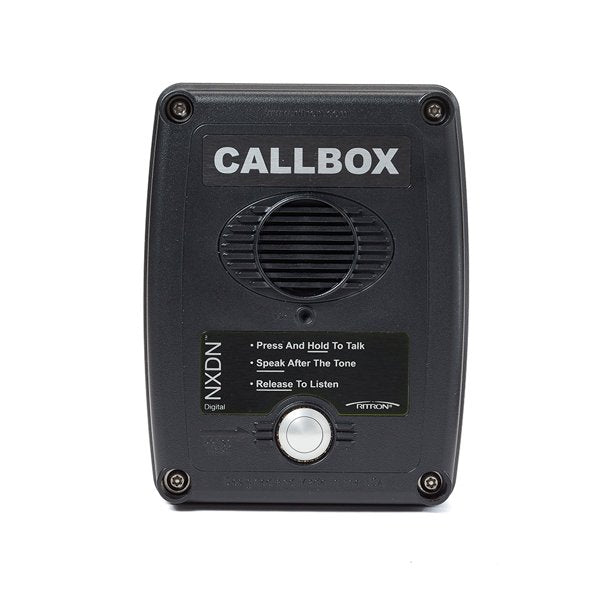

The Ritron RQX-417NX is a UHF (450-470MHz) NXDN Digital/Analog callbox that provides long range, 2-way communication and allows staff and visitors to communicate with their two-way radio equipped personnel from various points. This callbox is wireless and does not need construction to be installed. It can be used stand-alone using alkaline batteries or can be powered using an external AC adapter. The RQX-417NX typically comes in bright green for high visibility, whereas the RGX-417NX-BLK is a variation in black for stylistic appeal. These models include relay control, allowing for long-range remote control of gates, doors, or strobe light.
RQX-417NX KEY FEATURES
- UHF (450-470MHz)
- NXDN Digital (6.25KHz)/Analog(12.5KHz); 700mW
- Wireless
- 1 Channel
- RELAY feature included
- CTCSS/DCS Encode/Decode (Analog Mode)
- DTMF and Selcall Encode/Decode (Analog Mode)
- 2 Tone Decode (Analog Mode)
- Automatic Turn-Off and Always-On Intercom Feature
- Two-Way Push-To-Talk
- Durable, gasket-sealed, high-impact molded, polycarbonate enclosure
- Tamper and Vandal-Resistant Internal Antenna
- Recordable Voice Messages
- Machined Aluminum Push-To-Talk Button
- Available in FCC licensed or license-free MURS frequencies
- Alkaline Battery Powered or External AC Power Capable (optional adapter)
- Standard Flange Mount Hole Pattern
- Sensor Monitoring Auxiliary Input
- Auto turn off to conserve batteries
- PC and Field Programmable
- FCC and ISED Canada Approved
RITRON XD SERIES DIGITAL/ANALOG CALLBOX MODELS
Model |
Frequency |
Band |
Relay Control |
Voice Message |
Color |
RQX-117NX |
150-165MHz |
VHF |
Yes |
Yes |
Hi-Viz Green |
RQX-117NX-BLK |
150-165MHz |
VHF |
Yes |
Yes |
Black |
RQX-417NX |
450-470MHz |
UHF |
Yes |
Yes |
Hi-Viz Green |
RQX-417NX-BLK |
450-470MHz |
UHF |
Yes |
Yes |
Black |
WARRANTY
* 1-year manufacturer's warranty.
