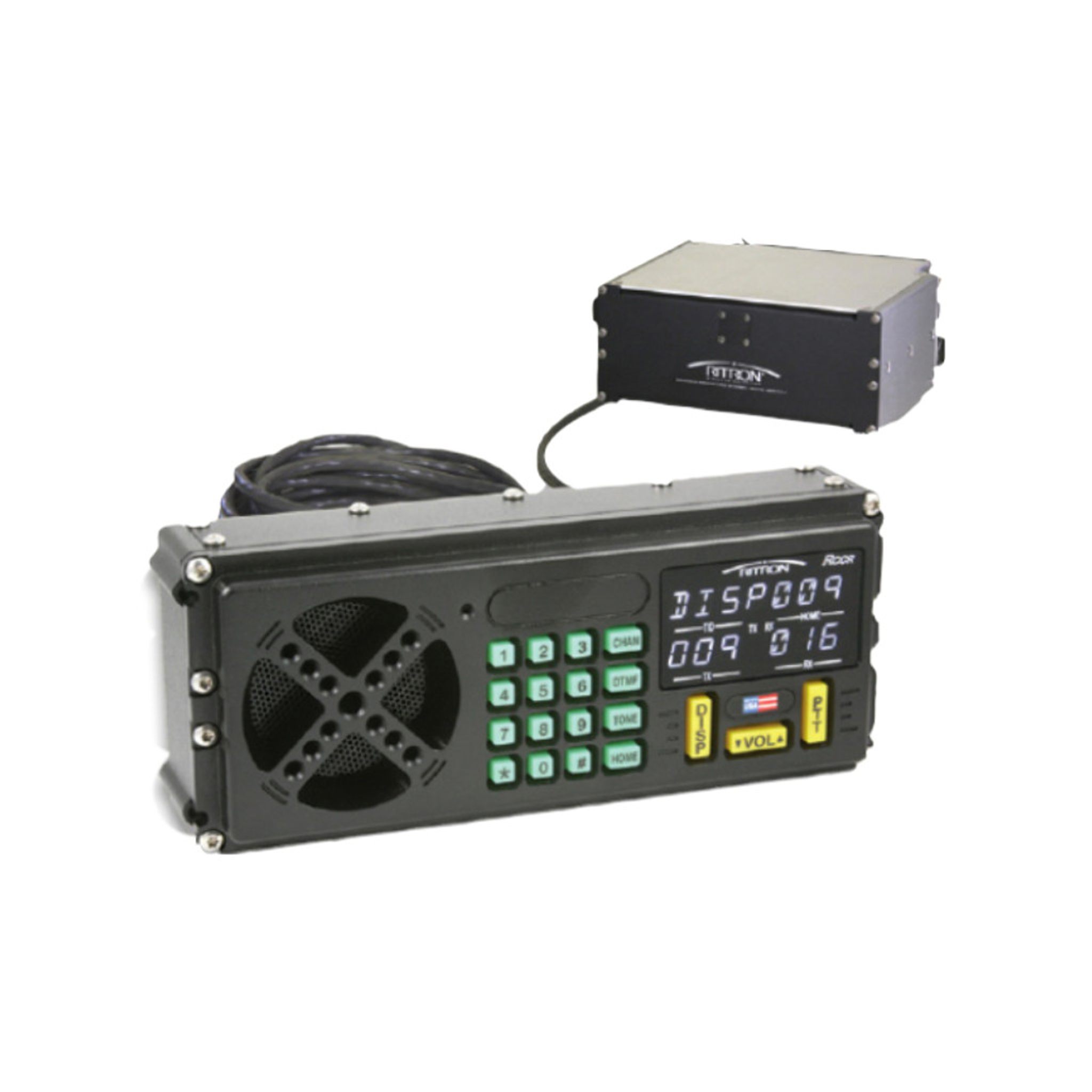

Ritron RCCR-152-NX Two-Piece NXDN Clean Cab Radio

Ritron RCCR-152-NX NXDN Radio

Digital/ Analgo Two-Piece Clean Cab Radio

The Ritron RCCR-152-NX is a VHF (155-174MHz) Clean Cab radio model RCC designed with state of the art RF technology to provide onboard voice communication for freight and transit railroad operations.

A fresh, clean-sheet design approach provides reliable and optimized performance specifically for the railroad environment. The radio is available in either a 1-piece or 2-piece remote head model. The legacy RCCR is capable of 25KHz (wideband - international only), 12.5KHz (narrowband) and 6.25kHz (very narrowband) NXDN Digital operation (when equipped with the NXDN add-on board).

The all-metal enclosure is made from heavy gauge, precision-machined aluminum for maximum durability. A large, bright, easy-to-read LED display allows for a wide viewing angle and ruggedness. Front panel push buttons are large and flush mounted to ensure correct entry and back-lit for low light operation. Special emphasis has been given to easy access and serviceability of all internal PCB's and related electronics.

FEATURES

  • FCC Narrow Band Compliant. IC Canada Approved.
  • Capable of Wideband @ 25 kHz international only, Narrowband @ 12.5kHz Analog or NXDN™ FDMA Digital @ 6.25 kHz operation with optional plug-in PCB.
  • One-piece and two-piece (remote head) models available.
  • All-metal, rugged enclosure for maximum durability.
  • Large, easy-to-read LED display with wide viewing angle, long viewing distance and ruggedness.
  • Automatic dimming in low light environments.
  • Front panel push buttons are large and flush mounted to ensure correct entry and backlit for low light operation.
  • Large speaker provides loud, crisp, easy-to-understand audio.
  • Oversized easy-to-grasp carrying handle allows for hassle-free radio transport.
  • Special emphasis on easy access and serviceability of all internal PCBs and related electronics.
  • Dual front-end design; narrow front-end with dual surface acoustic wave (SAW) filters forAAR channels and wider front-end for general VHF operation.
  • Appropriate front-end is automatically selected for channel/frequency chosen.
  • Supports 170 MHz Mexican frequencies via wide front-end.
  • Tight RF specifications for urban environments. Frequency stability supports FCC 6.25 kHz requirements.
  • Internal flash memory and program code externally upgradeable
  • High VSWR Alert
  • 2 year Limited Manufacturer Warranty.
  • Designed and Made in the USA



*2-year manufacturer's warranty.

Ritron RCCR-152-NX Two-Piece NXDN Clean Cab Radio

Product form

Free pickup in our shop(s)

SKU: RCCR-152-NX

$3,933.00
