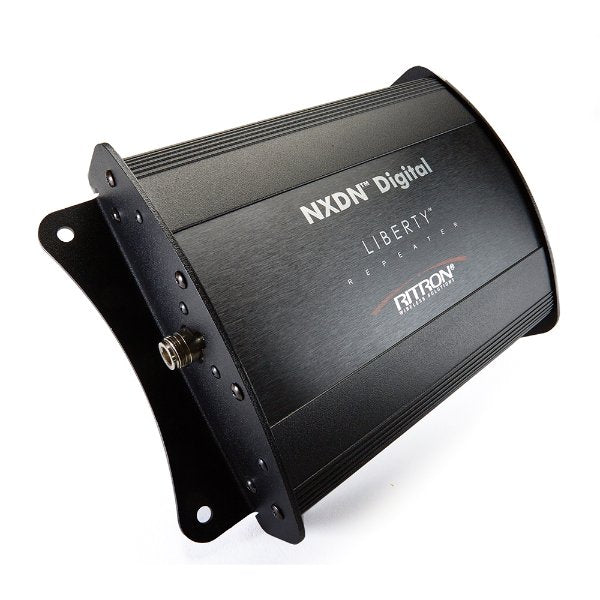

Ritron RLR-465NX
LIBERTY UHF NXDN DIGITAL REPEATER
The Ritron RLR-465NX is a UHF (450-470MHz) NXDN Digital repeater that extends the range of wireless communications whilst effectively eliminating dead spots on-site. The Liberty Repeater is used to extend the range of any UHF NXDN Digital portable, mobile, callbox, or base station. This repeater is recommended for Schools, Shopping Malls, Hotels, Hospitals, Manufacturing Plants, Golf Courses, Amusement Parks, or at
Special Events.
Notice: A change of frequency of more than 50kHz will require re-tuning of the duplexer.
RLR-465NX KEY FEATURES
- UHF (450-470MHz)
- 10 Watts
- 1 Channel
- Frequency Range: Very Narrowband
- Full Duplex Radio and Built-in, 4 Cavity, Notch-Type Duplexer w/ “N” Type Connector
- Capable of up to 10 groups of RAN.
- Power ON and TX Transmit Indicator LED’s
- Frequency Stability: +/- 1 ppm (-30 C to +50 C)
- 110VAC to 13.8 VDC power supply
- 12VDC back-up capable (At less than 13.8VDC output limited to 8W)
- Compact size
- Lightweight
- PC Programmable – Duplexer and RF board requires manual tuning
- Built-In Mounting Flanges
- FCC and Industry Canada Approved
RLR-465-N KIT INCLUDES:
- Integrated Full Duplex Duplex NXDN Digital Radio Repeater
- Built-in, 4-Cavity Notch-Type Duplexer
- RPS-1500 (10VAC-12VDC) Power Supply
WARRANTY
* 1-year manufacturer's warranty on this repeater.
