Ritron RQX-117
VHF ANALOG CALLBOX

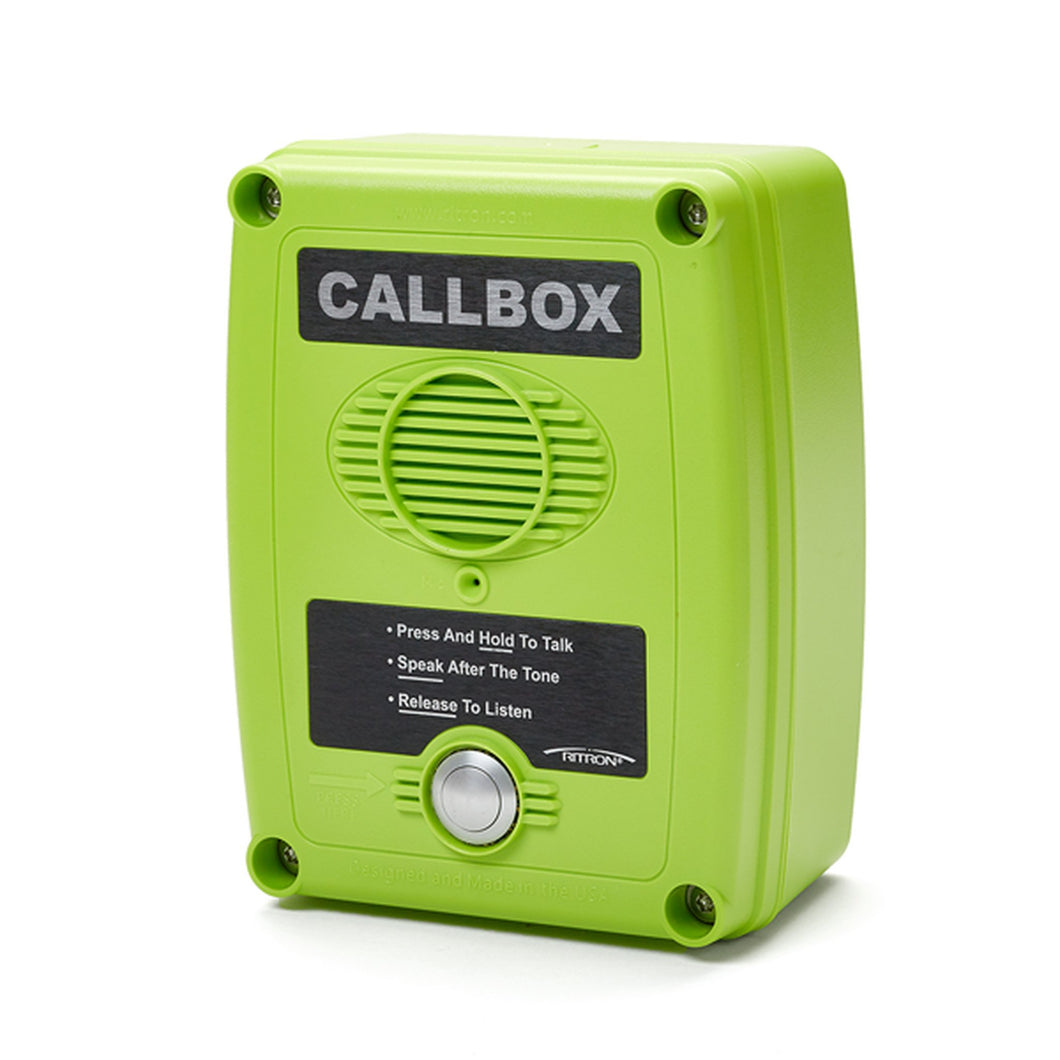

The Ritron RQX-117 is a VHF (150-165MHz) analog callbox that provides long range, 2-way communication and allows staff and visitors to communicate with their two-way radio equipped personnel from various points. This callbox is wireless and does not need construction to be installed. It can be used stand-alone using alkaline batteries or can be powered using an external AC adapter. The RQX-117 typically comes in bright green for high visibility, whereas the RGX-117-BLK is a variation in black for stylistic appeal. These models include relay control, allowing for long-range remote control of gates, doors, or strobe light.
RQX-117 KEY FEATURES
- VHF (150-165 MHz)
- Analog; 700mW (RQX-117)/800mW (RQX-117-BLK)
- Wireless
- 1 Channel
- RELAY feature included
- Built-in Relay Control
- Recordable Voice Message Capability
- Dry-Contact Switch Inputs
- Two-Way Push-To-Talk
- Durable, gasket-sealed, high-impact molded, polycarbonate enclosure
- Tamper and Vandal-Resistant Internal Antenna
- Machined Aluminum Push-To-Talk Button
- Available in FCC licensed or license-free MURS frequencies
- Alkaline Battery Powered or External AC Power Capable (optional adapter)
- Standard Flange Mount Hole Pattern
- Sensor Monitoring Auxiliary Input
- Auto turn off to conserve batteries.
- PC and Field Programmable.
- FCC and ISED Canada Approved
RITRON Q SERIES ANALOG CALLBOX MODELS
| Model |
Frequency |
Band |
Relay Control |
Voice Message |
Color |
| RQX-111 |
150-165MHz |
VHF |
No |
No |
Hi-Viz Green |
| RQX-111-BLK |
150-165MHz |
VHF |
No |
No |
Black |
| RQX-111M |
MURS |
VHF |
No |
No |
Hi-Viz Green |
| RQX-111M-BLK |
MURS |
VHF |
No |
No |
Black |
| RQX-411 |
450-470MHz |
UHF |
No |
No |
Hi-Viz Green |
| RQX-411-BLK |
450-470MHz |
UHF |
No |
No |
Black |
| RQX-117 |
150-165MHz |
VHF |
Yes |
Yes |
Hi-Viz Green |
| RQX-117-BLK |
150-165MHz |
VHF |
Yes |
Yes |
Black |
| RQX-117M |
MURS |
VHF |
Yes |
Yes |
Hi-Viz Green |
| RQX-117M-BLK |
MURS |
VHF |
Yes |
Yes |
Black |
| RQX-417 |
450-470MHz |
UHF |
Yes |
Yes |
Hi-Viz Green |
| RQX-417-BLK |
450-470MHz |
UHF |
Yes |
Yes |
Black |
WARRANTY
* 1-year manufacturer's warranty.
